Devang Fittings is a reputable manufacturer and supplier located in Kolkata, India, operating in the field of Industrial fittings for a wide range of industries and standards. We have built our reputation as a trusted source for high-quality industrial fittings, combining precision engineering with quality and reliability. We have an extensive range of products, including Alloy 20 Forged Fitting in India, resistant to a wide range of applications, including the marine and chemical processing that require quality piping and fittings. We are known for our quality, competitive pricing, and fast delivery, ensuring that our customers are doubly confident that our piping and fitting solution are dependable and effective.
| Forged Fittings Specifications | ASTM B462/ ASME SB462 |
|---|---|
| Alloy 20 Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Alloy 20 Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Alloy 20 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM B462 Alloy 20 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| Alloy 20 Forged Fittings Thread | NPT, BSPT, BSPP |
| Alloy 20 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Nickel Alloy 20 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

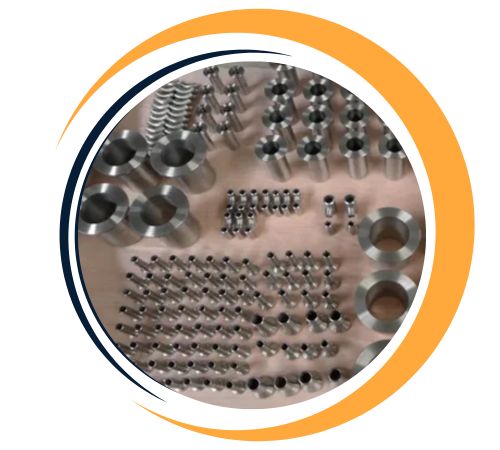

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
Alloy 20 Forged Fittings are made from a nickel-iron-chromium alloy with molybdenum and copper, which gives them better corrosion resistance than other materials, particularly in acidic environments. It has a standard composition of Nickel (32-38%), Chromium (19-21%), Molybdenum (2-3%), Copper (3-4%), with Iron as the balance and trace amounts of Carbon, Manganese and Silicon. They also have good strength and ductility with a minimum tensile strength of 550 MPa, minimum yield strength of 240 MPa, minimum elongation of 30%. The aforementioned properties of this alloy give it the ability to survive and perform in the most aggressive industrial settings.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
Devang Fittings is a leading supplier of Alloy 20 Forged Fittings in Kolkata, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | EN | AFNOR |
| Alloy 20 | 2.4660 | N08020 | NiCr20CuMo | Z2NCUD31-20AZ |
Alloy 20 Forged Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy 20 Forged Fittings have significant advantages, especially in difficult industrial environments. They have excellent corrosion resistance, particularly against sulfuric, phosphoric, and nitric acids making them suitable for chemical and other related industries, including the pharmaceutical industry. They have excellent mechanical properties which allow the fittings to be very strong, durable and provide ease of fabrication. Their enhanced resistance to pitting, crevice corrosion, and stress corrosion cracking enable them to perform better in hostile environments, such as the marine and petrochemical industries. They are also good at consistently staying in service across a wide temperature range, contributing to reliability and again making them a cost-effective long-term solution for rigorous processes.
| ASTM B462 / B462M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic Alloy 20 Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | Alloy 20 fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
| Products | Size | |
|---|---|---|

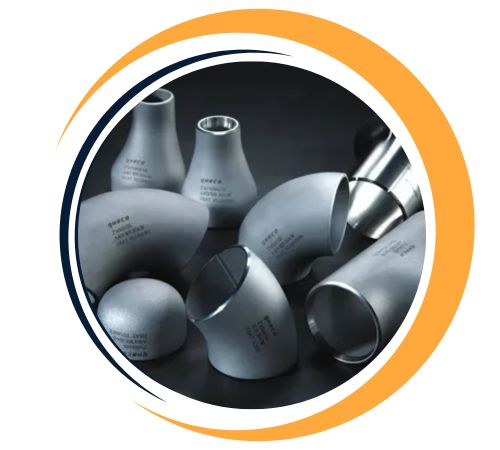

| ASTM B462 Alloy 20 90° Elbow | ASTM B462 Alloy 20 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM B462 Alloy 20 Forged Tee | ASTM B462 Alloy 20 Union | |

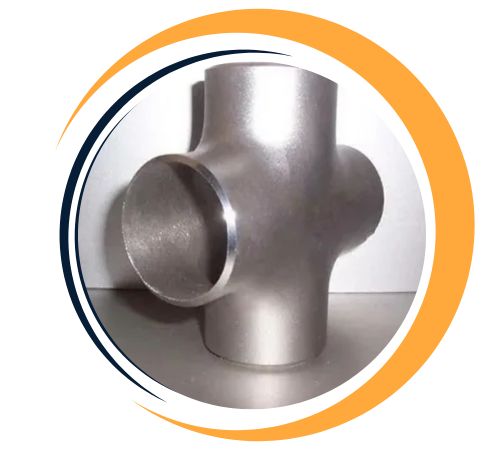

| ASTM B462 Alloy 20 Forged Cross | ASTM B462 Alloy 20 Insert | |
| ASTM B462 Alloy 20 Screwed Bushing | ASTM B462 Alloy 20 Threaded Pipe Nipple | |
| ASTM B462 Alloy 20 Forged Socket weld Cap | ASTM B462 Alloy 20 Screwed Coupling | |
| ASTM B462 Alloy 20 Forged Plug | ASTM B462 Alloy 20 Street Elbow | |
Yes, custom sizes for Alloy 20 Forged Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Alloy 20 Forged Fittings can be reliably used anywhere a high level of corrosion resistance and strength is required. They are intended to be used for handling sulfuric acid in chemical, petrochemical and pharmaceutical processing. Also, Alloy 20 has applications in the food and dye industries, where the level of contamination needs to be minimized. Now, corrosion resistance sometimes cannot be emphasized enough, especially when dealing with the marine environment, or heat exchangers/facilitating nuclear power. Their resistance to pitting and stress corrosion cracking can put mind at ease while dealing with oil pipelines and dredging vessels. Not to mention pressure vessels, storage tanks, etc. It goes without saying that in own industry, performance matters. Especially when it comes to reliability in chemical, petrochemical, pharmaceutical, food, or any other demanding processes.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
