Devang Fittings is a leading manufacturer and supplier in Kolkata, India specializing in manufacturing quality pipe fittings for industrial needs. We make products with precision engineer and quality materials. We offer a comprehensive range of Alloy Steel Pipe Fittings products for our clients where you will need quality and reliability. Our products are found in all industrial applications including the oil and gas, petrochemical, and power-generating industries. Devang Fittings is committed to providing the best possible solutions to our customers and clients around the world.
| Specifications Standard | Astm A234/ ASME SA 234 |
|---|---|
| Alloy Steel Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Alloy Steel Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

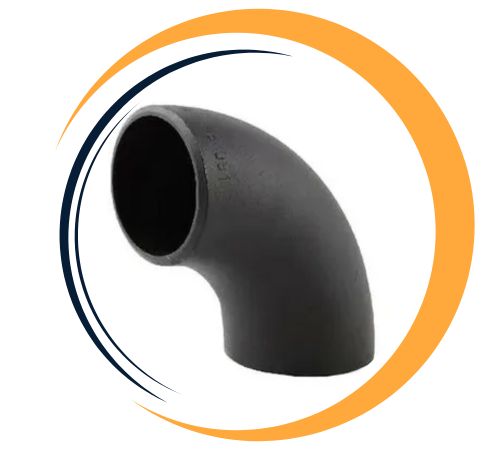

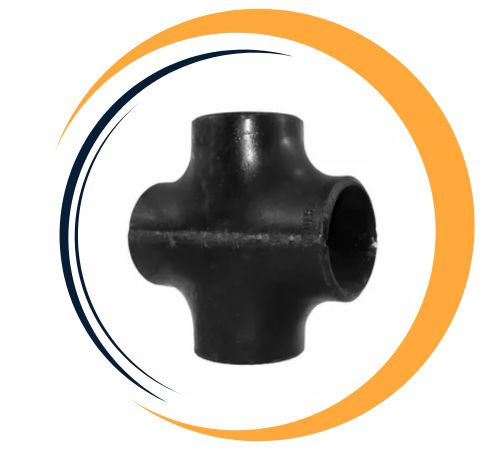

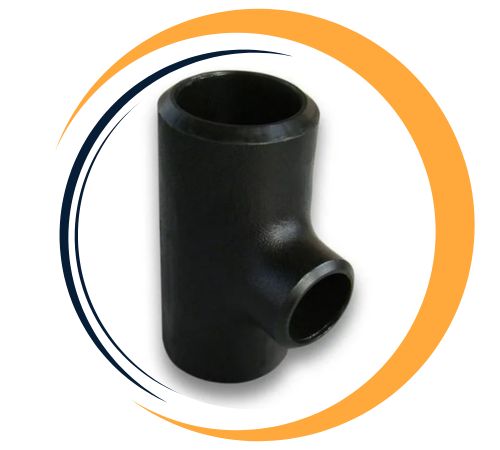

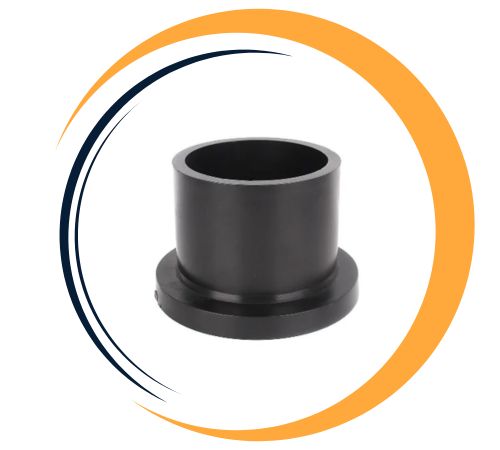

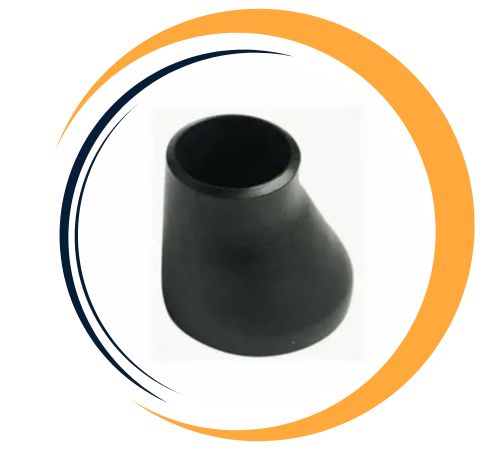

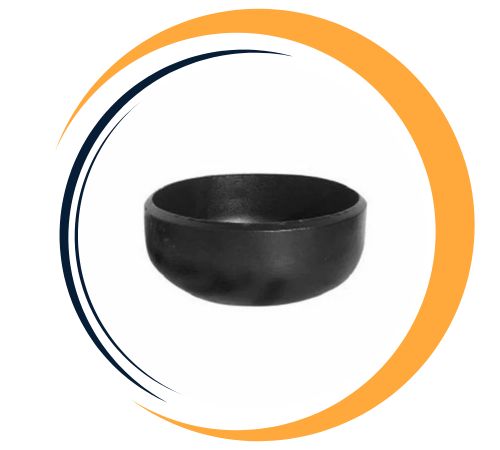

| Alloy Steel Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |
| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Alloy Steel Pipe Fittings are mainly a blend of carbon steel and corrosion resistant alloying elements such as chromium, molybdenum, vanadium and nickel. Alloying elements create corrosion resistance, heat resistance and strength. They are typically composed of carbon (0.3-0.9%), chromium (0.5-5%), alloying elements in varying amounts depending on the alloy grade. In terms of mechanical properties, it has great tensile strength (up to 1000 MPa), high yield strength, great weldability, and can withstand impact loading in both high and low temperature conditions. Alloy Steel Pipe Fittings are used in a variety of high-pressure and high-temperature applications found in the oil and gas and the power generation industries.
|
Grade |
Mn |
C |
P |
Si |
Cr |
S |
Mo |
|---|---|---|---|---|---|---|---|
|
F5 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F1 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F11 |
0.03 to 0.06 |
0.05 to 0.015 |
0.003 |
0.05 to 1.00 |
1.00 to 1.05 |
0.003 |
0.044 to 0.065 |
|
F9 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
F22 |
0.03 to 0.06 |
0.050.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F12 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 |
4 to 6 |
0.003 |
0.044 to 0.065 |
|
F91 |
0.03 to 0.06 |
0.015 maximum |
0.003 |
0.05 to 1.00 |
8 to 10 |
0.003 |
0.09 to 1.01 |
|
Grade |
Yield Strength (0.2%Offset) |
Tensile Strength |
Elongation |
|---|---|---|---|
|
F5 |
485 |
275 |
20 % |
|
F1 |
485 |
275 |
20 % |
|
F11 |
415 |
205 |
20 % |
|
F9 |
585 |
380 |
20 % |
|
F22 |
415 |
205 |
20 % |
|
F12 |
485 |
275 |
20 % |
|
F91 |
585 |
380 |
20 % |
Devang Fittings is a leading supplier of Alloy Steel Pipe Fittings in Kolkata, India. We offer an extensive range of Alloy Steel Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel Pipe Fittings have excellent strength, durability, and resistance to corrosion, making them valuable for high-stress applications. Their ability to withstand high temperatures and extreme pressure makes them reliable in the oil and gas, chemical processing, and power generation industries. Additionally, these fittings have great wear resistance, ensuring they can retain the intended performance in even the most abrasive environments. Alloy steel pipe fittings can even be considered to have good versatility because they have good weldability and machinability, and often work well in off-site fabrication environments. Furthermore, because alloy steel pipe fittings can provide cost savings and are built for longevity, they are the go-to-weld and pipe fabricators and end-users who depend on fittings for demanding industrial applications.
Yes, custom sizes for Alloy Steel Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Industry uses alloy steel pipe fittings mainly in applications requiring high strength, corrosion resistance, and durability. Using alloy steel pipe fittings are typically found in oil and gas, power generation, chemical processing, petrochemical, and construction related industries. Like other types pipe fittings alloy steel fittings can endure applications where high temperatures, pressure, and harsh conditions exist in the piping system and ensuring a secure connection for proper flow. Alloy steel pipe fittings help to resist wear, fatigue, and oxidation better than other pipe fittings. Alloy steel fittings are also used commonly in manufacturing, transportation, and are typically used in a system which needs long-lasting and reliable performance under extreme operating conditions.
