Devang Fittings is a reputable manufacturer and supplier of quality pipe fittings in Kolkata (India). Well known for precision engineering and reliability, we manufacture Alloy Steel WP11 Piping fitting which are apt for demanding industrial applications. Our fittings are used in petrochemicals, power generation and chemical processing because of their exceptional mechanical properties, reliable durability, as well as delegation from corrosion. We stay consistent with our quality, innovative designs and customer focused services to able to produce reliable and cost effective solutions for you pipe applications.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

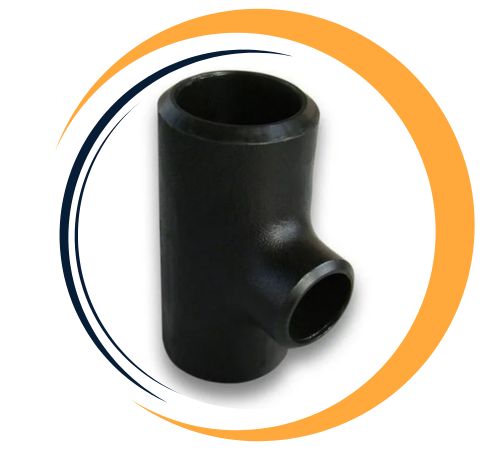

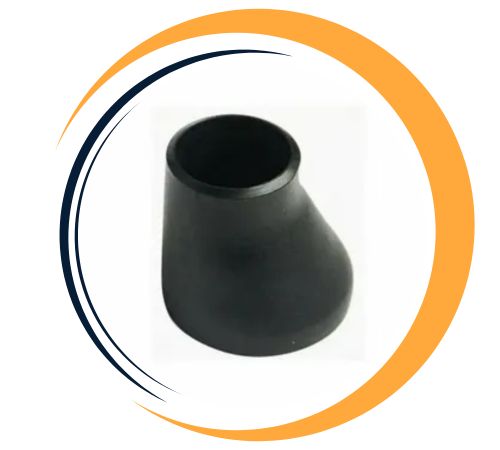

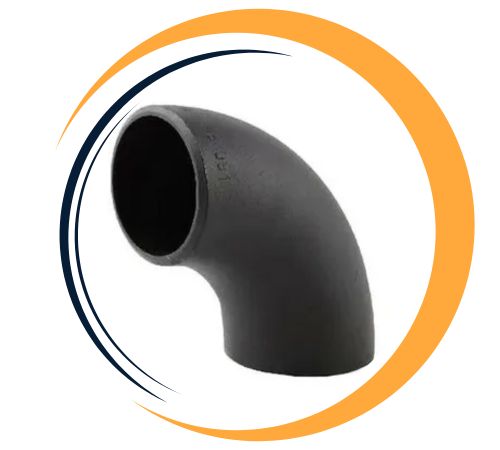

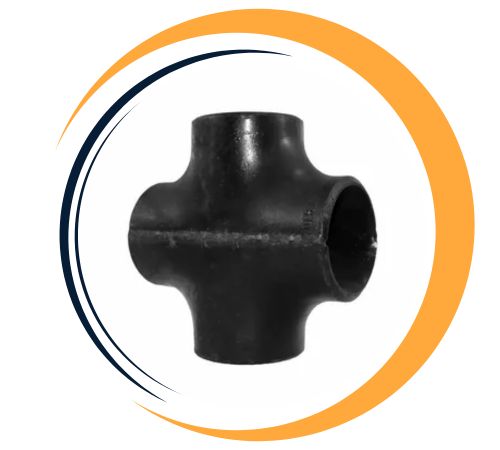

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
The alloy steel WP11 pipe fittings are comprised of chromium (1-1.5%); Molybdenum (0.45-0.65%); carbon (0.05 to 0.15%) along with a couple of trace elements, manganese, silicon, phosphorus, and sulfur. The properties of these fittings make them excellent for superior strength, corrosion resistance, and thermal stability. The compression of WP11 provides mechanical properties such as tensile strength of 415-585 MPa and yield strength of 205 Mpa, which makes fittings durable in high pressure designs. The elongation is 20% of WP11 fittings, and its properties are referenced for toughness. Fittings of WP11 are ideal for high temperature and pressure applications in plants, refineries and petrochemical application design. Hence, WP11 fittings have excellent weldability and creep resistance.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP11 | 0.05-0.2 | 0.3-0.8 | 0.5-1 | ≤0.030 | ≤0.030 | 1-1.5 | 1-1.5 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP11 | 415 – 585 | ≥205 | ≥20 |
Devang Fittings is a leading supplier of Alloy Steel WP11 Pipe Fittings in Kolkata, India. We offer an extensive range of Alloy Steel WP11 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP11 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP11 Pipe Fittings are strong, durable and have a high-temperature resistance, so they are typically used in power generation and demanding high-pressure applications. These fittings show excellent oxidation resistance, good corrosion resistance (particularly in a reducing environment), and good wear resistance. These fittings provide good long-term service due to their resistance to thermal fatigue and stress in extreme conditions. Alloy Steel WP11 Pipe Fittings are very useful and flexible products that allow good weldability and formability for a wide variety of applications. They are designed to operate efficiently and safely in critical industrial applications. They are also one of the best cost-effective options, due to their long life and low maintenance requirements.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP11 Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Alloy Steel WP11 Pipe Fittings serve many functions in high-temperature applications because of their excellent heat resistance and strength. These fittings are often used in applications in power generation and oil and gas, petrochemical, complex processing industries and other pressure-retaining applications. These fittings are ideal when systems involve steam, water, or other high-pressure fluids that function at extreme temperatures without damaging the structure of the fittings. The use of WP11 fittings is critical in pressure vessel construction, boiler systems, and pipelines that function at high-temperatures to ensure reliable functionality and a long service life.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
