Devang Fittings is a renowned manufacturer and supplier based in Kolkata, India which is dedicated to providing a superior quality piping solution for the requirement of various industries. Devang fittings is known for precision engineering and reliability and provide honed and sophisticated Alloy steel WP5 Pipe fittings that suit the intensive demands of Oil and Gas, Chemical Processing, and Power. These team and systems make up a company that builds durability, corrosion resistance, and superior performance in every pipe fitting that invokes a seamless integration into, and lasting value to, every project.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |

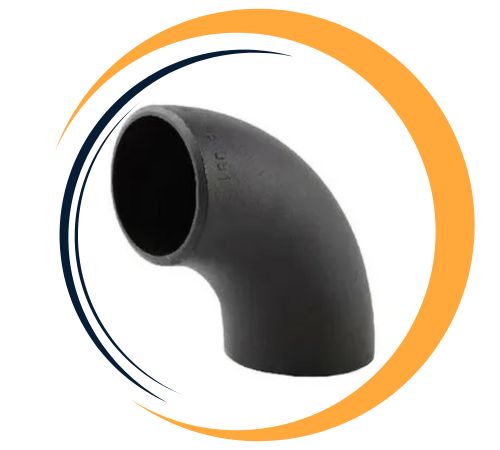

| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

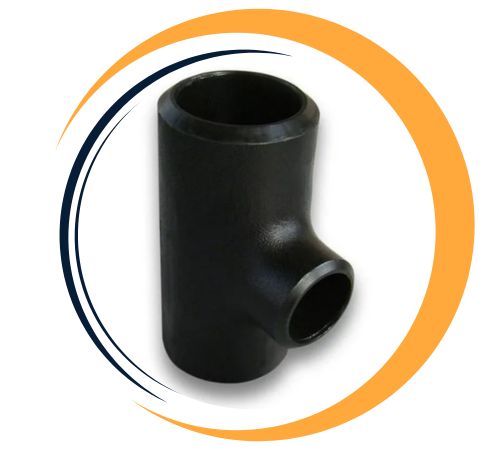

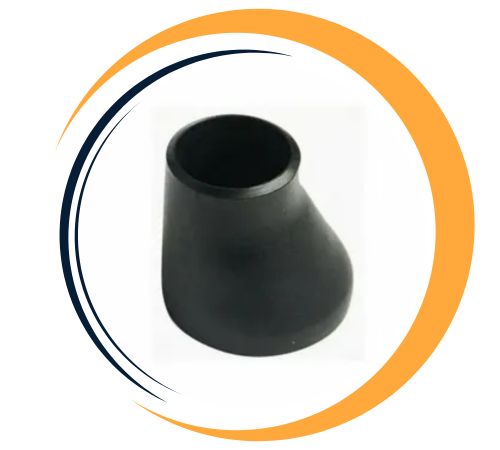

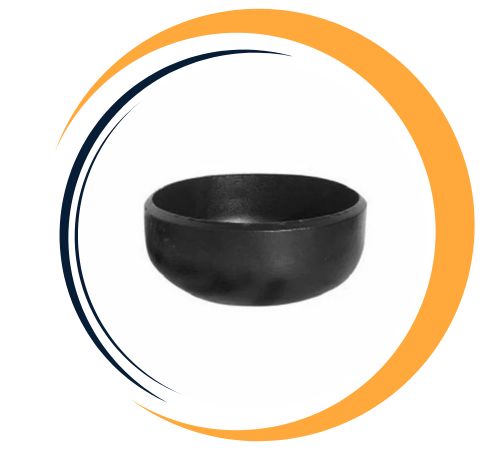

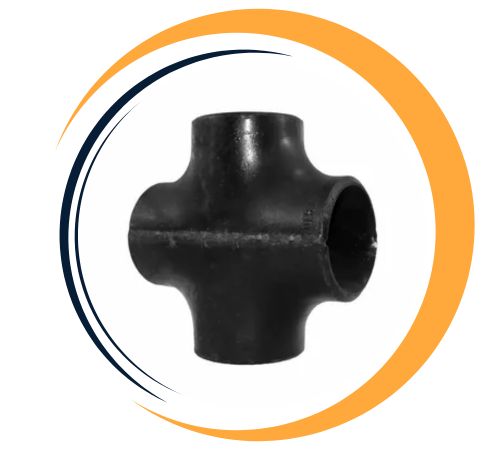

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Alloy Steel WP5 pipe fittings are composed of chromium molybdenum (Cr-Mo) alloys with about 0.05-0.15% carbon, chromium 2.25-2.75%, molybdenum 0.9-1.2%, and small amounts of other elements to make it a tougher alloy. The fittings have excellent strength, hardness, and ability to perform in high-temperature environments. The tensile stress in these fittings is between: 415-585 MPa; yield strength: 205-290 MPa yield strength; elongation between: 20-30%. WP5 fittings have great weldability, and resistance to oxidation and corrosion, but they’re still used in high-pressure and high-temperatures applications. These fittings are used in high-pressure, high-temperature petrochemical and power generation applications.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP5 | ≤0.15 | ≤0.6 | ≤0.5 | ≤0.04 | ≤0.03 | 4-6 | 0.44-0.65 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP5 | 415 – 585 | ≥205 | ≥20 |
Devang Fittings is a leading supplier of Alloy Steel WP5 Pipe Fittings in Kolkata, India. We offer an extensive range of Alloy Steel WP5 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP5 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Pipes fittings made from Alloy Steel WP5 provide excellent strength, durability, high-temperature resistance, and are ideal for high-pressure applications. Alloy Steel WP5 pipe fittings are very resistant to corrosion, oxidation, and wearing which makes them last longer where they are exposed to hard-wearing conditions. They will keep their strength under extreme pressure and temperature and could be used in power generation, petrochemical, oil & gas and other high-pressure industries. Alloy steel WP5 pipe fittings are also easy to weld and form. Alloy Steel WP5 pipe fittings cover a large and diverse group, which allows them fit in to many different piping systems. They are reliable for critical applications and are affordable which makes them cost-effective for the project.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP5 Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Alloy steel WP5 pipe fittings are used in industries that require strong and durable materials that are also heat resistant. Commonly used in power plants, petrochemical companies, refineries, and steam systems, the fittings need to be able to withstand high temperatures and high pressures. The fittings’ strength and incredible resistance to corrosion and thermal fatigue make them optimal to convey fluids, gases, or steam in critical systems. Alloy steel WP5 pipe fittings are used in many industries such as boiler, turbines, and piping systems, amongst others.
