Devang Fittings is a trusted supplier and manufacturer from Kolkata, India that deals in pipe fittings and accessories for different industries. Recognized for our durable and precise fittings, we manufacture an extensive variety of pipeline fittings including the Alloy Steel WP91 Pipe Fittings. W91 fittings feature colossal strength, corrosion resistant properties and high temperature capable components; making them an excellent choice in demanding pipelines such as oil and gas pipeline transportation, chemical processing, and power generation.
| Specifications | ASTM A234 / ASME SA234 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Manufacturing Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, DN15-DN1200 BS : BS4504, BS4504, BS1560, BS10 JIS : JIS B2311, JIS B2312, JIS B2313, JIS B2316 GOST : GOST 17375, GOST 17376, GOST 30753, GOST 17378, GOST 17379, GOST 17380 EN: EN10253-1, EN10253-2 |
| Types | Seamless / ERW / Welded / Fabricated |
| Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |

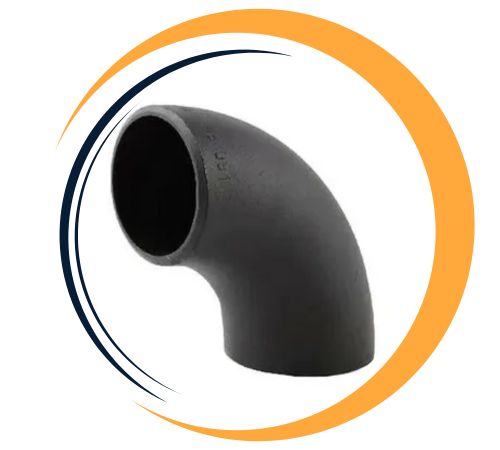

| Elbow | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Manufacturing process | Push, Press, Forge, Cast, etc. |

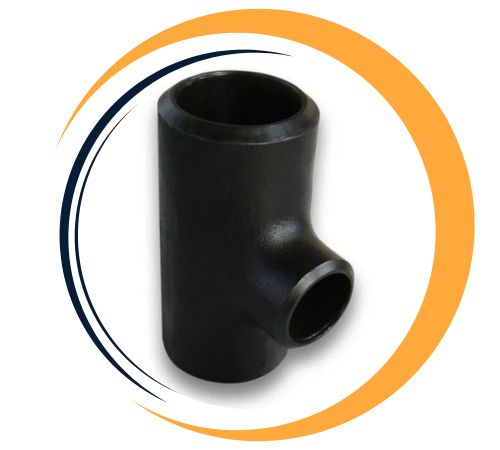

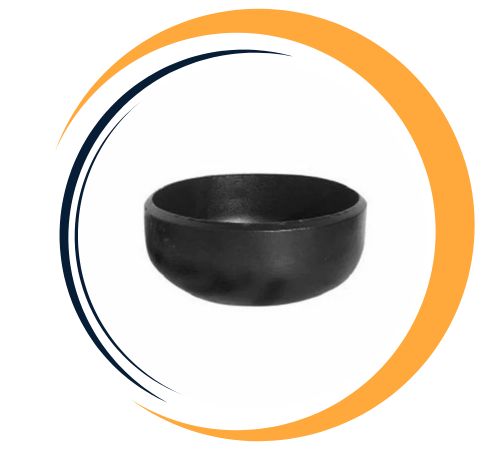

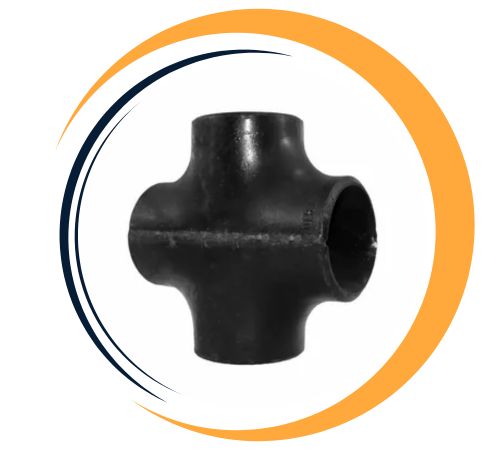

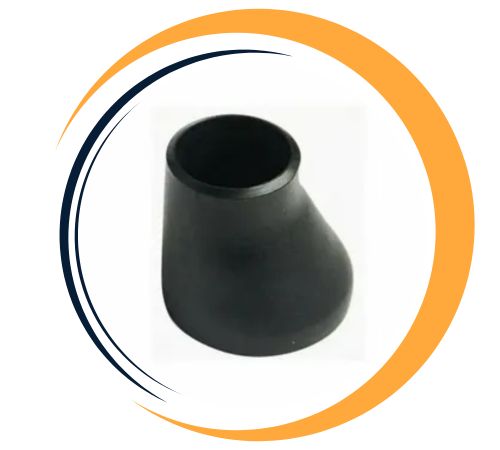

| Specialized manufacturer of | 90º Elbows, Couplings, Reducers, Inserts, Caps, Nipples, 45º Elbows, Tees, Crosses, Equal Tees & Reducing Tees |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
The Alloy Steel WP91 pipe fittings are classified as chromium-molybdenum alloy steels that are able to resist oxidation and corrosion at elevated temperatures. The chemical composition usually consist of 9% chromium and 1% molybdenum, and the balance of iron plus a small amount of carbon, silicon, and molybdenum. The physical properties of the Alloy Steel WP91 pipe fittings include features of high strength, excellent creep resistance and cold cracking and good source welding toughness. The mechanical properties for Alloy Steel WP91 pipe fittings are 415 – 585 MPa tensile strength, 205MPa yield strength, and a hardness between 150 – 190 HB. Alloy Steel WP91 is suitable for use in power plants, chemical processing and applications that require high temperature.
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A234 WP91 | 0.05-0.15 | 0.3-0.6 | ≤0.5 | ≤0.04 | ≤0.04 | 2-2.5 | 0.87-1.13 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A234 WP91 | 415-585 | 205 | 20 |
Devang Fittings is a leading supplier of Alloy Steel WP91 Pipe Fittings in Kolkata, India. We offer an extensive range of Alloy Steel WP91 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Alloy Steel WP91 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Alloy Steel WP91 Pipe Fittings have many benefits, such as outstanding strength and high temperature resistance that makes them ideal for power plants, petrochemicals, as well as other demanding industries. They withstand oxidation, creep and thermal fatigue at elevated temperatures. WP91 fittings have good weldability and produce reliable and secure connections between structure and pipe fittings in piping systems. WP91 exhibits great resistance to corrosion and stress corrosion cracking that extends performance and lifespan in difficult environments. They provide versatility and good mechanical properties that make them ideal for critical or demanding applications.
| Nominal Pipe Size | All Fittings | All Fittings | All Fittings | Elbows/ Tees | 180° Return Bends | 180° Return Bends | 180 Deg Return Bends | Reducers | Caps |
|---|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) | Wall Thickness (3) | Centre-to-End Dimension A,B,C,M | Centre-to-Centre O | Back-to-Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 | 0.03 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 | 0.06 | Not less than 87.5% of nominal thickness | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 | 0.12 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 | 0.19 | Not less than 87.5% of nominal thickness | 0.19 | … | … | … | 0.19 | 0.38 |
Yes, custom sizes for Alloy Steel WP91 Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Alloy Steel WP91 Pipe Fittings are a viable choice for high-temperature and high-pressure applications, and are known for their compressive strength, durability, and oxidation and corrosion resistance. Alloy Steel WP91 Pipe Fittings are typically seen in many applications in power generation, petrochemicals, oil and gas, and chemical processing. Alloy Steel WP91 pipe fittings can be effectively used in piping systems transporting steam, hot gases, or harsh or aggressive fluids. Alloy Steel WP91 pipe fittings provide excellent performance in areas exposing the service conditions to significant thermal stresses. Alloy Steel WP91 pipe fittings provide reliability and long service life in critical applications, including, boiler systems, heat exchangers, and pressure vessels.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
