Devang Fittings is a leading manufacturer and supplier based in Kolkata, India. We are better known as specialist manufacturers of piping solutions for industries. Devang has a great focus of innovation and accuracy with a number of electricity, vanishing quality, durability, reliability and high-performance pipe fittings. Duplex Steel S32205 Pipe Fittings is proposed to be a high corrosion resistance, high strength with high performance in difficult environments. Common uses in the oil & gas industry, chemical, and marine environments.
| Specifications Standard | ASTM A815 /ASME SA815 |
|---|---|
| Duplex 2205 Pipe Fittings Size Range | Welded Fittings: 1/2″ – 48″ Seamless Fittings: 1/2″ – 10″ |
| Connection | Welding |
| Type | DN15 to DN1200 |
| Origin & Mills | Indian, European, Korean, Japanese, Ukraine, USA, Russian |
| Radius of bending | R=3D, 1D, 8D, 10D, 5D, 2D, Custom MSS Sp-43, 6D |
| Duplex 2205 Pipe Fittings Manufacturing process | Forge, Press, Cast, Push etc. |
| Thickness | SCH10, SCH40, XS, SCH30, SCH 160, SCH 80, SCH 140, SCH60, SCH20, STD , SCH 120, SCH 100, XXS |
| Pressure Ratings | 2000#, 150#, 6000#, 3000#, 9000# |
| End Connections: | socket weld and Threaded |

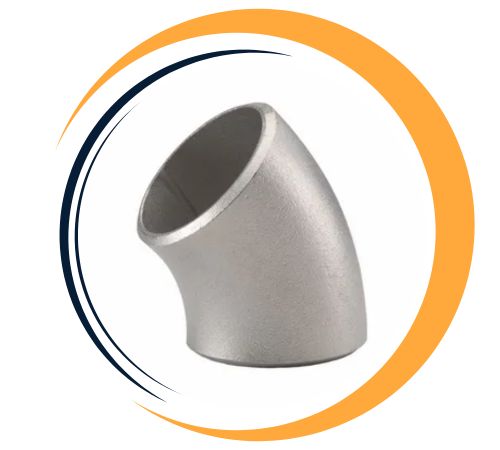

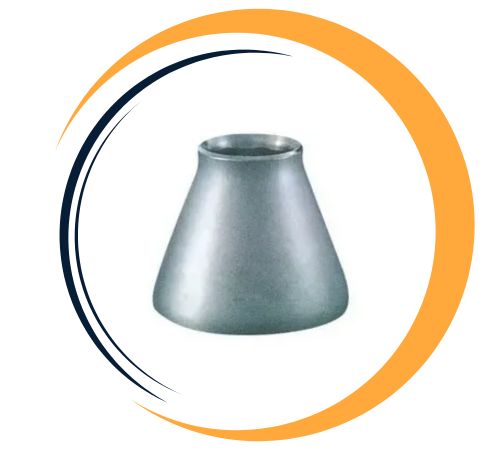

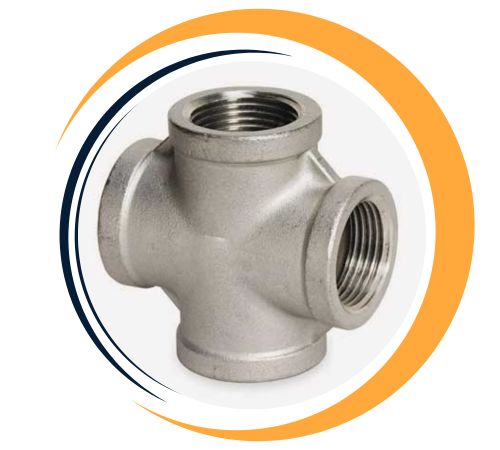

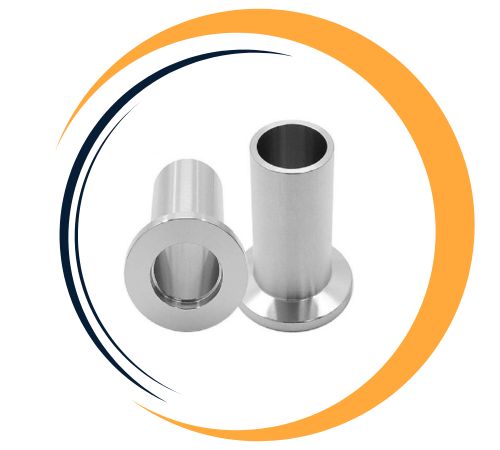

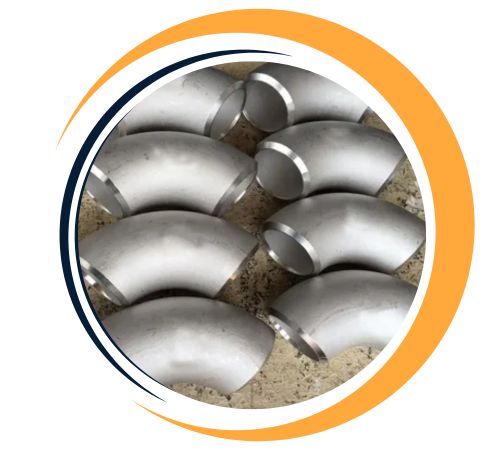

| Duplex 2205 Pipe Fittings manufacturer | 90º Tee, Elbows, Pipe Cap, Stub End, 45º Elbows, Crosses, Pipe Bend, Reducers |
| Dimensions | ASME B16.28, BS4504, MSS-SP-43, ASME/ANSI B16.9, BS1560, BS4504, BS10 |
| Elbows | Angle : 2.0D, 1.5D, 5D, 3D, 1.0D, 6D, 4D, 2.5D, 7D-40D . Standard: JISB2312, MSS SP-75, 22.5 deg, JISB2313, 30deg, ASME B16.9, 180 deg, 45 deg, JISB2311 BS, DIN2605, 90 deg, GB ISO |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate Third Party Inspection Report, etc |
Duplex Stainless Steel S32205 Pipe Fittings are made from 22% chromium, 5% nickel, and 3% molybdenum with traces of nitrogen, manganese, and silicon. This composition provides exceptional protection against pitting, crevice corrosion and stress corrosion cracking (SCC). Mechanical properties include 450 MPa yield strength, 620 MPa tensile strength and 25% elongation. The good toughness, high resistance to stress corrosion cracking in chloride environments, and excellent weldability further support its use in industrial applications. The material also has a two-phase microstructure comprising austenite and ferrite which ultimately improves both strength and corrosion resistance in highly corrosive applications.
| Grade | C | Mn | Si | N | P | Cr | Fe | Ni | S | Mo |
| S32205 Fittings | 0.030 maximum | 2.00 maximum | 1.00 maximum | 0.8 to 0.20 | 0.030 maximum | 21.0 to 23.0 | 63.54 minimum | 4.50 to 6.50 | 0.020 maximum | 2.50 to 3.50 |
| Grades | Density (lb/in 3) | Melting Point (°F) | Density (g/centimeter 3) | Melting Point (°C) |
| S32205 Fittings | 0.285 | 2588 to 2669 | 7.805 | 1420 to 1465 |
Devang Fittings is a leading supplier of Duplex Steel S32205 Pipe Fittings in Kolkata, India. We offer an extensive range of Duplex Steel S32205 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Standard | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Super Duplex 2205 | 1.4462 | S32205 | – | – | – | – | – |
Duplex Steel S32205 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Duplex Steel S32205 Pipe Fittings provide multiple benefits, including outstanding corrosion resistance, particularly in chlorine-rich environments. They constitute a high strength-to-weight ratio and can be utilized satisfactorily in demanding applications, and also is able to decrease the load on structures. The duplex S32205 alloy also has much higher resistance to stress corrosion cracking (SCC) and pitting, leading to improved durability in challenging situations. Duplex Steel S32205 fittings exhibit excellent weldability; therefore, they have strong and reliable connections. They are also easy to form and maintain high toughness. They can be used as long-lasting Parts in the chemical, marine, and oil and gas industries, lowering maintenance needs.
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | 180 DEG RETURN BENDS | REDUCERS | ELBOWS AND TEES | 180 DEG RETURN BENDS | CAPS |
|---|---|---|---|---|---|---|---|
| NPS | ID at End (1), (3), (4) | OD at Bevel (1), (2) | Centre-to- Centre O | Overall Length H | Centre -to- End Dimension A, B, C, M | Alignment of Ends U | Overall Length E |
| ½ to 2½ | 0.003 | 0.006 -0.003 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 3 to 3 ½ | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 4 | 0.006 | 0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.012 |
| 5 to 8 | 0.006 | 0.009 -0.006 | 0.025 | 0.006 | 0.006 | 0.003 | 0.025 |
| 10 to 18 | 0.012 | 0.016 -0.012 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 20 to 24 | 0.019 | 0.025 -0.019 | 0.038 | 0.009 | 0.009 | 0.006 | 0.025 |
| 26 to 30 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.012 | … | 0.038 |
| 32 to 48 | 0.019 | 0.025 -0.019 | … | 0.019 | 0.019 | … |
Yes, custom sizes for Duplex Steel S32205 Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Duplex Steel S32205 pipe fittings are commonly used in industries that require high strength and corrosion resistance, including oil and gas, chemical processing, marine, and power generation. S32205 fittings resist stress corrosion cracking, pitting, and crevice corrosion exceptionally well. Applications include offshore oil rigs, desalination, heat exchangers, and chemical reactors. Because of registered excellent mechanical properties and resistance to harsh environments, S32205 fittings are most excellent for high-pressure systems or significant use in critical applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
