Hastelloy C22 Buttweld Fittings Manufacturer and Supplier in Kolkata, India

Devang Fittings is a premium manufacturer and supplier of industrial fittings company based in Kolkata, India. We supply many different products, but we are best known for our specialty in the supply of Hastelloy C22 Buttweld Fittings. Hastelloy C22 Buttweld Fittings are especially known for their resistance to corrosion, offering a long service life in industries like chemical processing, pharmaceuticals and aerospace. Devang Fittings aim is to provide our client’s market with reliable, durable and precision-engineered products that they can count on.

Hastelloy Alloy N06022 Pipe Fittings India, Inconel C22 Buttweld Fittings United kingdom, Hastelloy N06022 Butt weld Fittings Kolkata, Hastelloy 2.4602 Buttweld Fittings India, ANSI B16.9 Hastelloy® Alloy C22 Buttweld Fittings India, Nickel Alloy N06022 Buttweld Pipe Fittings Kolkata, ASTM B366 Hastelloy C22 Buttweld Fittings Manufacturer in India.

Hastelloy C22 Buttweld Fittings Specification

Specifications

ASTM B366 / ASME SB366

DIMENSIONS

ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size

Seamless Butt Weld Fittings: 1/2″ – 10″, Welded Butt Weld Fittings: 1/2″ – 48″

Type

Seamless / Welded / Fabricated

Thickness

20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

Schedule

Sch 5 TO Sch XXS.

Hastelloy C22 Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

Hastelloy C22 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Hastelloy C22 Buttweld Fittings Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	GOST	EN	OR
Hastelloy C22	2.4602	N06022	NW 6022	–	NiCr21Mo14W	–

Hastelloy C22 Buttweld Fittings are produced using a nickel-chromium-molybdenum alloy that provides exceptional resistance to corrosion in highly aggressive environments, including oxidizing and reducing conditions. Approximately 56% nickel, 22% chromium, 13% molybdenum and trace amounts of iron, tungsten, and cobalt make up the composition of Hastelloy C22. The Hastelloy C22 Buttweld Fittings have excellent resistance to both pitting, crevice corrosion, and stress corrosion cracking. Their mechanical properties include high tensile strength (approximately 758 MPa), yield strength (approximately 345 MPa), and excellent ductility. They are highly weldable and well suited for strong and demand applications, including those typical in chemical processing and jobs in other industries.

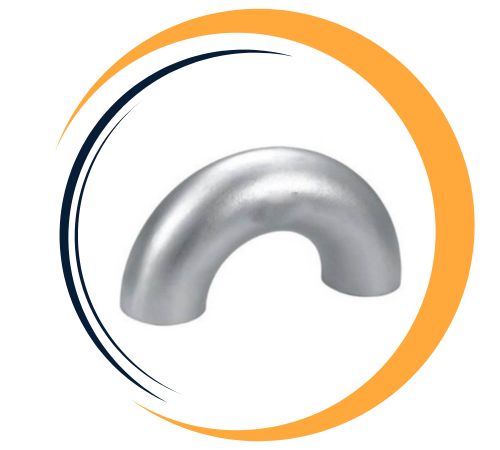

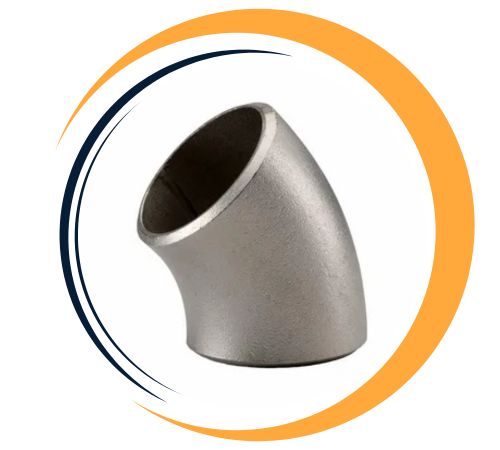

Hastelloy C22 Buttweld Elbow Dimensions Standard

Nominal PipeSize	Outside Diameter		90° Elbows		45° Elbows		180° Returns
*(inches)*	–		Long Radius	Short Radius	Long Radius		Long Radius
	*(mm)*	*(inches)*	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8		7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

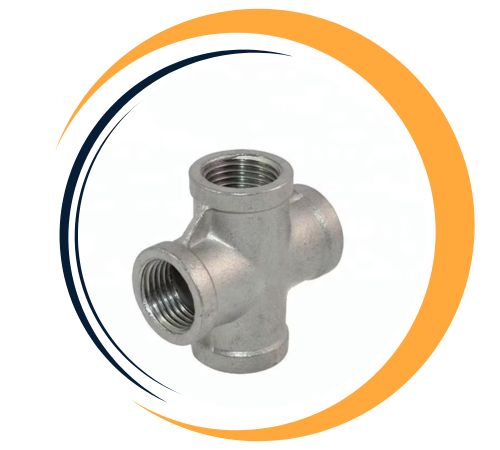

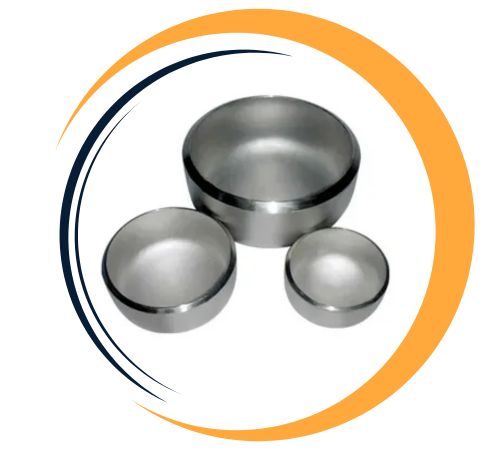

Hastelloy N06022 Buttweld Cross India, Hastelloy C22 Buttweld Pipe Nipple United kingdom, Hastelloy Alloy N06022 Buttweld Reducer Kolkata, JIS NW 6022 Buttweld Elbow Kolkata, Nickel Alloy C22 Buttweld Pipe Cap India, ASME SB366 Alloy C22 Buttweld Fittings Kolkata, Hastelloy® Alloy N06022 Buttweld Stub End India, Alloy N06022 Buttweld Tee India, Alloy C22 Buttweld Welded Fittings United kingdom, Hastelloy N06022 Pipe Fittings Supplier in Kolkata, India.

Largest Hastelloy C22 Buttweld Fittings Supplier in Kolkata, India

Devang Fittings is a leading supplier of Hastelloy C22 Buttweld Fittings in Kolkata, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

SIZE of Hastelloy Alloy C22 Buttweld Fittings

NPS (inch)	Pipe Sch.	Wall Thk. (in)	OD (inch)	Temperature
				100	200	300	400	500
				Allowable Stress (Pressure Rating)
				16700	16700	16700	15500	14400
1″	40	0.133	1.315	2205	2205	2205	2047	1902
	80	0.179	1.315	3061	3061	3061	2841	2640
	160	0.250	1.315	4493	4493	4493	4170	3874
1 1/2″	40	0.145	1.900	1629	1629	1629	1512	1404
	80	0.200	1.900	2303	2303	2303	2138	1986
	160	0.281	1.900	3362	3362	3362	3120	2899
2″	40	0.154	2.375	1371	1371	1371	1272	1182
	80	0.218	2.375	1985	1985	1985	1843	1712
	160	0.344	2.375	3283	3283	3283	3047	2831
3″	40	0.216	3.500	1301	1301	1301	1208	1122
	80	0.300	3.500	1844	1844	1844	1712	1590
	160	0.438	3.500	2787	2787	2787	2587	2403
4″	40	0.237	4.500	1102	1102	1102	1023	950
	80	0.337	4.500	1596	1596	1596	1482	1377
	160	0.531	4.500	2611	2611	2611	2424	2552
5″	40	0.258	5.563	965	965	965	896	832
	80	0.375	5.563	1428	1428	1428	1325	1231
	160	0.625	5.563	2474	2474	2474	2296	2133
6″	40	0.280	6.625	877	877	877	814	756
	80	0.432	6.625	1379	1379	1379	1280	1189
	160	0.719	6.625	2382	2382	2382	2211	2054
8″	40	0.322	8.625	771	771	771	716	665
	80	0.500	8.625	1218	1218	1218	1131	1050
	160	0.906	8.625	2298	2298	2298	2133	1982
10″	40	0.365	10.750	699	699	699	649	603
	80	0.594	10.750	1159	1159	1159	1075	999
	160	1.125	10.750	2289	2289	2289	2124	1974

Why Choose Hastelloy C22 Buttweld Fittings from Devang Fittings?

Hastelloy C22 Buttweld Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

Hastelloy Alloy N06022 Pipe Fittings India, Inconel C22 Buttweld Fittings United kingdom, Hastelloy N06022 Butt weld Fittings Kolkata, Hastelloy 2.4602 Buttweld Fittings Kolkata, ANSI B16.9 Hastelloy® Alloy C22 Buttweld Fittings India, Nickel Alloy N06022 Buttweld Pipe Fittings Kolkata, ASTM B366 Hastelloy C22 Buttweld Fittings Manufacturer in India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Hastelloy C22 Buttweld Fittings provide several significant advantages like being highly resistant to most corrosive environments such as oxidizing acids (nitric acid) and reducing acids (sulfuric acid). They exhibit excellent resistance to pitting, crevice corrosion and stress-corrosion cracking, making them well-suited for chemical and pharmaceutical applications where a range of chemical purity, oxidizing and reducing media, and temperature extremes are of concern. Hastelloy C22 provides superior toughness and durability with high strength at both low and high temperatures, and requires very little maintenance. Hastelloy C22 possesses excellent weldability and fabricability, so this means there is virtually little installation downtime, so the cost of downtime is even more minimal. Hastelloy C22 is reliable, has an excellent history in fabrication, and has proven performance to provide great service in high corrosion service.

Types of Hastelloy C22 Buttweld Fittings

Are Custom Sizes Available for Hastelloy C22 Buttweld Fittings?

Yes, custom sizes for Hastelloy C22 Buttweld Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.

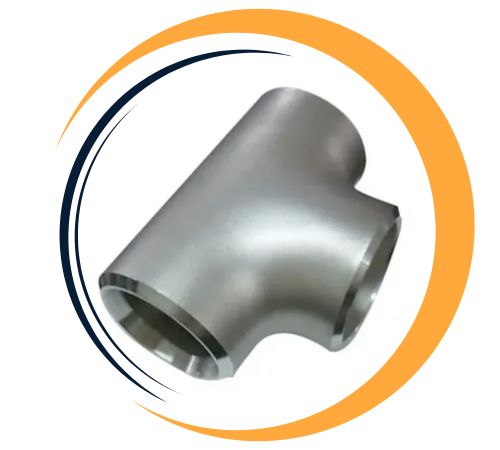

Hastelloy N06022 Buttweld Cross India, Hastelloy C22 Buttweld Pipe Nipple United kingdom, Hastelloy Alloy N06022 Buttweld Reducer Kolkata, JIS NW 6022 Buttweld Elbow Kolkata, Nickel Alloy C22 Buttweld Pipe Cap India, ASME SB366 Alloy C22 Buttweld Fittings Kolkata, Hastelloy® Alloy N06022 Buttweld Stub End India, Alloy N06022 Buttweld Tee India, Alloy C22 Buttweld Welded Fittings India, Hastelloy N06022 Pipe Fittings Supplier in Kolkata, India.

Application Industry of Hastelloy C22 Buttweld Fittings

Hastelloy C22 Buttweld Fittings are utilized extensively in applications that require superior corrosion resistance and superior performance. Some of the relevant applications include chemical processing, pharmaceutical production, and aerospace. They are suitable for handling aggressive chemicals such as chlorine, hydrochloric acid, and sulfuric acid because they resist pitting and crevice corrosion. They are used in pollution control applications, marine applications, and flue gas desulfurization technologies. Their incredible durability, combined with their ability to withstand extreme temperatures and harsh environmental conditions, make Hastelloy C22 Buttweld Fittings a critical component to maintaining system integrity.
