Hastelloy C22 Pipe Fittings Manufacturer and Supplier in Kolkata, India

Devang Fittings, a leading company based in Kolkata, India, is a renowned name in the field of producing and supplying Hastelloy C22 Pipe Fittings. It is recognized for its superior resistance to corrosive conditions across a broad range of environments, which makes it the best choice for applications in chemical processing, marine, and aerospace industries. Devang Fittings guarantees every product to meet international standards of quality through superior manufacturing processes and rigorous quality checks. With a customer-focused strategy and emphasis on accuracy, the company provides tailored Hastelloy C22 solutions to India and the global market as per the requirements of critical applications in harsh industrial surroundings.

Hastelloy C22 Stub End In India, Hastelloy C22 Buttweld Elbow United kingdom, ASTM B366 Hastelloy Alloy C22 Pipe Fittings Kolkata, Hastelloy C22 Reducing Tee Kolkata, Hastelloy® C22 Pipe Fittings in India, ASME SB366 Hastelloy® Alloy C22 Pipe Cap Kolkata, Hastelloy C22 Buttweld Fittings India.

Hastelloy C22 Pipe Fittings Specification

Specification : ASTM B366 / ASME SB366

Dimension Standard : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

ASME B16.9 : standard for – Factory-Made Wrought Buttwelding Fittings

ASME B16.25 : Buttwelding Ends

ASME B16.28 : standard for – Butt-Welded Short Radius Elbows & Returns Bends

MSS SP-43 : Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Size Range : ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)

Seamless Butt Weld Fitting Size : 1/2″ – 10″

Welded Butt Weld Fittings Size : 1/2″ – 48″

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom

Type : Seamless / Welded / Fabricated

Hastelloy C22 Pipe Fittings consist of high-performance nickel-based alloy with nearly 56% nickel, 22% chromium, 13% molybdenum, 3% iron, trace cobalt, tungsten, and other constituent elements. This special composition shows great resistance towards oxidizing and reducing agents. The alloy mechanically shows high stability with a minimum tensile strength of 690 MPa, yield strength of 283 MPa, and elongation of 45%, making it very suitable for high-stress, high-temperature applications. These characteristics render Hastelloy C22 an ideal material in challenging, corrosive industrial processes.

Hastelloy C22 Pipe Fittings Chemical Composition

Grade	C	Mn	Si	S	Co	Ni	Cr	Fe	Mo	P
Alloy C22	0.010 max	0.50 max	0.08 max	0.02 max	2.50 max	50.015 min*	20.00 – 22.50	2.00 – 6.00	12.50 – 14.50	0.02 max

Hastelloy C22 Pipe Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Hastelloy C22	8.69 g/cm3	1399 °C (2550 °F)	Psi – 1,00,000 , MPa – 690	Psi – 45000 , MPa – 310	45 %

Equivalent Grades for Hastelloy C22 Pipe Fittings

STANDARD	UNS	WERKSTOFF NR.	JIS	EN
Hastelloy C22	N06022	2.4602	NW 6022	NiCr21Mo14W

Hastelloy C22 45 deg. Elbow In India, Hastelloy C22 Reducer United kingdom, Hastelloy C22 90 deg Elbow Kolkata, ANSI B16.9 Hastelloy C22 Buttweld Pipe Fittings Suppliers in Kolkata, Hastelloy C22 Pipe Bend in India, Hastelloy® C22 Pipe Fittings Price List in Kolkata, Hastelloy C22 Pipe Elbow Suppliers India, Hastelloy C22 Seamless Pipe Fittings India.

Largest Hastelloy C22 Pipe Fittings Supplier in Kolkata, India

Devang Fittings is a leading supplier of Hastelloy C22 Pipe Fittings in Kolkata, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Hastelloy C22 Pipe Fittings Dimensions

Nominal Pipe Size	All Fittings	All Fittings	All Fittings	Elbows/ Tees	180° Return Bends	180° Return Bends	180 Deg Return Bends	Reducers	Caps
NPS	O.D. at Bevel (1), (2)	I.D. at End (1), (3), (4)	Wall Thickness (3)	Centre-to-End Dimension A,B,C,M	Centre-to-Centre O	Back-to-Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 -0.03	0.03	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 -0.06	0.06	Not less than 87.5% of nominal thickness	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 -0.12	0.12	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.12	…	…	…	0.19	0.38
32 to 48	0.25 -0.19	0.19	Not less than 87.5% of nominal thickness	0.19	…	…	…	0.19	0.38

Why Choose Hastelloy C22 Pipe Fittings from Devang Fittings?

Hastelloy C22 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

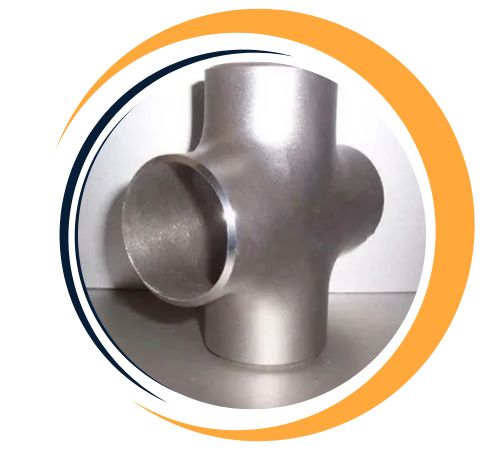

Hastelloy C22 Buttweld Cross Manufacturers India, Hastelloy C22 Welded Pipe Fittings Exporter in United kingdom, Hastelloy C22 Elbow Kolkata, ASTM B366 Hastelloy C22 Tee Kolkata, ASME SB366 Hastelloy C22 Unequal Tee India, Hastelloy® C22 Straight Tees Kolkata, ASME / ANSI B16.9 Hastelloy C22 Short Stub End India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Hastelloy C22 pipe fittings offer exceptional resistance to corrosion, particularly in oxidizing and reducing environments, making them ideal for chemical processing. They withstand high temperatures and aggressive chemicals, including chlorides, acids, and oxidizing agents, enhancing durability in extreme conditions. Their superior weldability and machinability ensure ease of fabrication. With excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, they maintain structural integrity in demanding applications. These fittings are versatile, suitable for pharmaceutical, marine, and power industries, ensuring long-term reliability, reduced maintenance, and cost-efficiency in critical environments.

Types of Hastelloy C22 Pipe Fittings

Are Custom Sizes Available for Hastelloy C22 Pipe Fittings?

Yes, custom sizes for Hastelloy C22 Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.

Hastelloy C22 45 deg. Elbow In India, Hastelloy C22 Reducer United kingdom, Hastelloy C22 90 deg Elbow Kolkata, ANSI B16.9 Hastelloy C22 Buttweld Pipe Fittings Suppliers in Kolkata, Hastelloy C22 Pipe Bend in India, Hastelloy® C22 Pipe Fittings Price List in Kolkata, Hastelloy C22 Pipe Elbow Suppliers India, Hastelloy C22 Seamless Pipe Fittings India.

Application Industry of Hastelloy C22 Pipe Fittings

Hastelloy C22 pipe fittings are widely used in industries requiring exceptional corrosion resistance. They are crucial in chemical processing, handling aggressive chemicals like chlorides and sulfuric, hydrochloric, and nitric acids. In marine environments, they resist seawater corrosion, making them ideal for shipbuilding and offshore applications. Power generation plants use them in cooling systems and flue gas scrubbers due to their durability in high temperatures and corrosive conditions. Additionally, they are employed in the pharmaceutical and food industries, ensuring purity and preventing contamination in sensitive processes.
