Incoloy 825 Buttweld Fittings Manufacturer and Supplier in Kolkata, India

Devang Fittings is a leading manufacturer and supplier located in Kolkata, India, which specializes in high quality buttweld fittings, like Incoloy 825 buttweld fittings. Devang Fittings is known for their precision engineering, their fittings are manufactured in a variety of sizes and configurations to meet the demanding specifications of the oil and gas ,petrochemical and power generation industries. With unrivaled craftsmanship and delivery, only the best supplied by Devang Fittings can guarantee a product that provides reliability and performance, for the most critical applications.

ANSI B16.9 Incoloy 825 Welded Buttweld Fittings India, Incoloy UNS N08800 Seamless Pipe Fittings in India, Incoloy 3d Pipe Bend Kolkata, Alloy 825 Short Radius Elbow Supplier Kolkata, Incoloy 825 Pipe Fittings India, 825 Incoloy Alloy Welded Pipe Fittings Dealer Kolkata, 825 Incoloy Alloy End Cap India, ASTM B366 825 Incoloy Alloy 90 degree Elbow Exporters and Suppliers in India, Incoloy 1.5d Pipe Bend India, 825 Incoloy Alloy End Cap Kolkata, Incoloy WERKSTOFF NR1.4958 Cross Exporter in Kolkata.

Incoloy 825 Buttweld Fittings Specification

Grade	Incoloy Alloy 825 / UNS N08825
Standard	ASTM B366, ASME SB366
Dimensions	ASME B16.28, ASME/ANSI B16.9, MSS-SP-43
Incoloy 825 Seamless Fittings	1/2″ NB – 10″ NB
Incoloy 825 Welded Fittings	1/2″ NB – 48″ NB

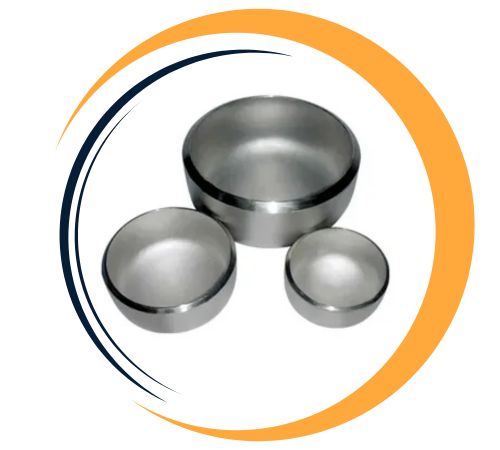

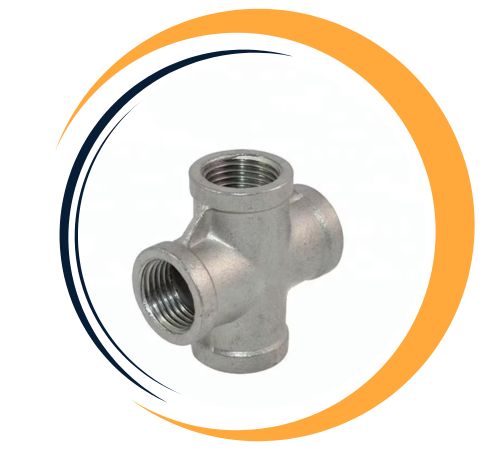

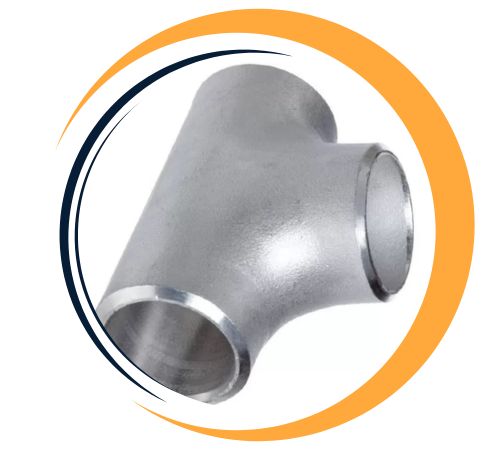

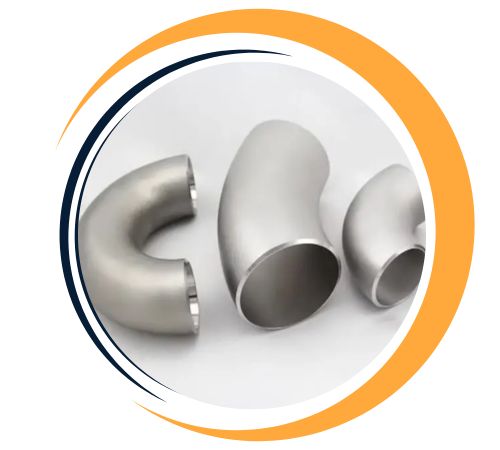

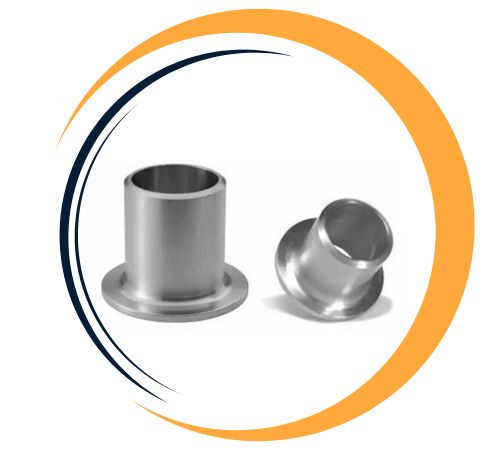

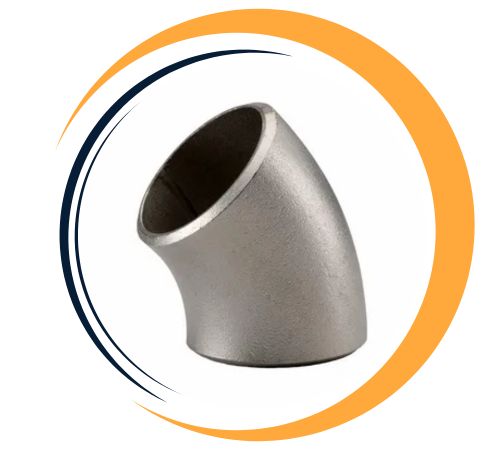

Form	90 Elbow, 45 Elbow, Long Radius Elbow, Short Radius Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Unequal Tee, Lateral Tee, Cross, Bends 1.5d, 3d, 5d, 10d, U bend, 180 Deg Bend, Short Stub End, Long stub end, End Cap, Dish Cap
Schedule	SCH 5 To SCH XXS
Wall Thickness	from 2 to 40 mm
Type	Seamless / Welded / Fabricated

Incoloy 825 Buttweld Fittings Chemical Composition

Ni	Fe	C	Mn	Si	Mb	Cu	Cr	Al	Ti	S
38.0 – 46.0	22.0 min	0.05 max	1.0 max	0.5 max	2.5 – 3.5	1.5 – 3.0	19.5 – 23.5	0.2 max	0.6 – 1.2	0.015 max

Incoloy 825 Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa -550	Psi – 32,000 , MPa – 220	30 %

Incoloy 825 buttweld fittings consist of a nickel-iron-chromium alloy made from 38-46% nickel, 19-23% chromium, 2.5-3.5% molybdenum, 1.5-3% copper, with small amounts of titanium, aluminum, and traces of other elements. This alloy has excellent corrosion resistance, especially in acidic conditions such as sulfuric acid and phosphoric acid, and includes general corrosion resistance, pitting resistance, crevice corrosion resistance, and stress corrosion cracking resistance. The mechanical properties of Incoloy 825 have high tensile strength (about 620 MPa), good oxidation resistance, and is well weldable, making it a good fit for demanding industrial applications.

825 Incoloy Alloy End Cap India, Incoloy Alloy 825 180 Deg bend India, Incoloy Alloy 825 Pipe Bend Kolkata, Jis Ncf 825 Pipe Fittings Kolkata, Incoloy Alloy 825 Stub Ends India, Incoloy 825 Pipe End Cap Kolkata, 825 Incoloy Alloy End Cap India, Incoloy Alloy 825 Equal Tee Kolkata, Ansi B16.9 800h Incoloy 45 / 90 / 180 Deg. Reducing Elbow India, Incoloy 825 Pipe Elbow Kolkata, Supplier of Incoloy 825 45 degree Elbow India, Incoloy 10d Pipe Bend Kolkata, 825 Incoloy Reducer, Incoloy Alloy 825 Pipe bend Supplier in India.

Largest Incoloy 825 Buttweld Fittings Supplier in Kolkata, India

Devang Fittings is a leading supplier of Incoloy 825 Buttweld Fittings in Kolkata, India. We offer an extensive range of Incoloy fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Why Choose Incoloy 825 Buttweld Fittings from Devang Fittings?

Incoloy 825 Buttweld Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

ANSI B16.9 Incoloy 825 Welded Buttweld Fittings India, Incoloy UNS N08800 Seamless Pipe Fittings India, Incoloy 3d Pipe Bend Kolkata, Alloy 825 Short Radius Elbow Supplier Kolkata, Incoloy 825 Pipe Fittings India, 825 Incoloy Alloy Welded Pipe Fittings Dealer Kolkata, 825 Incoloy Alloy End Cap India, ASTM B366 825 Incoloy Alloy 90 degree Elbow Exporters and Suppliers in India, Incoloy 1.5d Pipe Bend India, 825 Incoloy Alloy End Cap Kolkata, Incoloy WERKSTOFF NR1.4958 Cross Exporter in Kolkata.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

Incoloy 825 buttweld fittings have a number of advantages. They provide outstanding resistance to many corrosive environments, such as acids, seawater, and gases. This makes them extremely suitable for a harsh industrial environment. The alloy contains high nickel and chromium that provides not only outstanding performance against stress corrosion cracking, but oxidation resistance as well. Incoloy 825 buttweld fittings offer tremendous weldability, as no special fabrication techniques are required. Their exceptional mechanical properties, such as high environment resistance, high strengths, and durability, make Incoloy 825 an excellent choice in chemical processing, oil and gas, and power generation industries providing long lasting reliability.

Incoloy 825 Buttweld Fittings Dimensions

Nominal PipeSize	Outside Diameter		90° Elbows		45° Elbows		180° Returns
*(inches)*	–		Long Radius	Short Radius	Long Radius		Long Radius
	*(mm)*	*(inches)*	Center to Face (inches)	Center to Face (inches)	Center to Face (inches)	Radius (inches)	Center to Center (inches)	Back to face (inches)
1/2	21.3	0.840	1 1/2	–	5/8		2	1 7/8
3/4	26.7	1.050	1 1/8		7/16		2 1/4	1 11/16
1	33.4	1.315	1 1/2	1	7/8		3	2 3/16
1 1/4	42.2	1.660	1 7/8	1 1/4	1		3 3/4	2 3/4
1 1/2	48.3	1.900	2 1/4	1 1/2	1 1/8	3	4 1/2	3 1/4
2	60.3	2.375	3	2	1 3/8	4	6	4 3/16
2 1/2	73.0	2.875	3 3/4	2 1/2	1 3/4	5	7 1/2	5 3/16
3	88.9	3.500	4 1/2	3	2	6	9	6 1/4
3 1/2	101.6	4.000	5 1/4	3 1/2	2 1/4	7	10 1/2	7 1/4
4	114.3	4.500	6	4	2 1/2	8	12	8 1/4
5	141.3	5.563	7 1/2	5	3 1/8	10	15	10 5/16
6	168.3	6.625	9	6	3 3/4	12	18	12 5/16
8	219.1	8.625	12	8	5	12	24	16 5/16
10	273.1	10.750	15	10	6 1/4	15	30	20 3/8
12	323.9	12.750	18	12	7 1/2	18	36	24 3/8

Types of Incoloy 825 Buttweld Fittings

Are Custom Sizes Available for Incoloy 825 Buttweld Fittings?

Yes, custom sizes for Incoloy 825 Buttweld Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.

825 Incoloy Alloy End Cap India, Incoloy Alloy 825 180 Deg bend India, Incoloy Alloy 825 Pipe Bend Kolkata, Jis Ncf 825 Pipe Fittings Kolkata, Incoloy Alloy 825 Stub Ends India, Incoloy 825 Pipe End Cap Kolkata, 825 Incoloy Alloy End Cap India, Incoloy Alloy 825 Equal Tee Kolkata, Ansi B16.9 800h Incoloy 45 / 90 / 180 Deg. Reducing Elbow India, Incoloy 825 Pipe Elbow Kolkata, Supplier of Incoloy 825 45 degree Elbow India, Incoloy 10d Pipe Bend Kolkata, 825 Incoloy Reducer, Incoloy Alloy 825 Pipe bend Supplier in India.

Application Industry of Incoloy 825 Buttweld Fittings

Incoloy 825 buttweld fittings are extensively utilized in a variety of industries that demand corrosion resistance in aggressive corrosive environments. Typical end use situations for these fittings occur in chemical processing, petroleum refining and power generation, where they are part of piping systems that handle acidic substances such as sulfuric acid, phosphoric acid or similar products. Buttweld fittings made with Incoloy 825 are also used in both offshore and subsea applications due to their excellent capability of resisting seawater corrosion. In addition, Incoloy 825 can be used in heat exchangers, pollution control systems and storage tanks that can be exposed to high temperature and highly corrosive environments.
