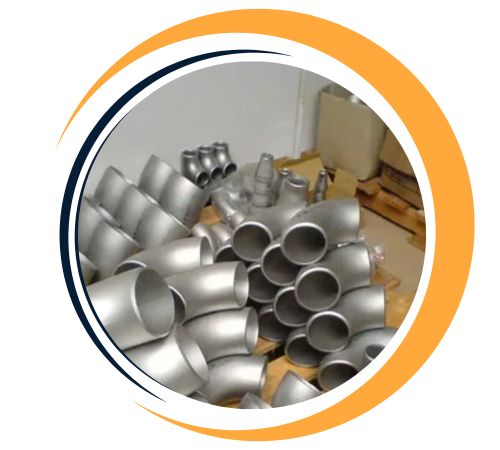

Devang Fittings, a Kolkata -based company, is a reputable supplier and maker of premium quality Inconel 625 Pipe Fittings. The company is renowned for providing precision-engineered parts and caters to mission-critical industries such as petrochemical, marine, aerospace, and power generation. The pipe fittings are made to resist harsh corrosion, high pressure, and high temperatures, so they provide consistent performance in austere environments. Devang Fittings is manufacturing various Inconel 625 pipe fittings including elbows, tees, reducers, and flanges to international standards and as per customer requirements. Devang Fittings boasts of strict quality checks and timely delivery, making it a supplier of choice for both the domestic and overseas markets.
Standard :ASTM B366 / ASME SB366
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Inconel 625 is a nickel-chromium alloy superalloy containing approximately 58% nickel, 20-23% chromium, 8-10% molybdenum, and trace amounts of iron, niobium, and other elements. This alloy features superb resistance against pitting, crevice corrosion, and stress corrosion cracking. The alloy has a tensile strength of about 760 MPa and a very good toughness even at cryogenic temperatures. Inconel 625 pipe fittings have superior mechanical stability and resistance to corrosion up to 982°C, making them ideal for tough industrial applications.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 705 | 42.5 % |
Devang Fittings is a leading supplier of Inconel 625 Pipe Fittings in Kolkata, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Pressure-Temperature ratings for Inconel 625 Pipe Fittings (psig) | |||||
|---|---|---|---|---|---|
| Temperature Ratings | Pressure Class | ||||
| 150 | 300 | ||||
| 1/4 – 1 inch. | 1 1/4 – 2 inch. | 2 1/2 – 3 inch. | |||
| (oF) | (oC) | ||||
| -20 to 150 | -29 to 66 | 300 | 2000 | 1500 | 1000 |
| 200 | 93 | 265 | 1785 | 1350 | 910 |
| 250 | 121 | 225 | 1575 | 1200 | 825 |
| 300 | 149 | 185 | 1360 | 1050 | 735 |
| 350 | 177 | 150 | 1150 | 900 | 650 |
| 400 | 204 | – | 935 | 750 | 560 |
| 450 | 232 | – | 725 | 600 | 475 |
| 500 | 260 | – | 510 | 450 | 385 |
| 550 | 288 | – | 300 | 300 | 300 |
Inconel 625 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Yes, custom sizes for Inconel 625 Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Inconel 625 Pipe Fittings have large applications in seawater processing systems, nuclear reactors, petrochemical facilities, offshore oil and gas platforms, and aerospace industries. Owing to their high resistance against oxidizing and reducing agents, excellent weldability, and formability, they are best suited for critical piping systems under high-temperature and aggressive conditions. Devang Fittings’ Inconel 625 pipe fittings come in a range of sizes and pressure classes that provide leak-proof seals and extended service life in severe industrial applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
