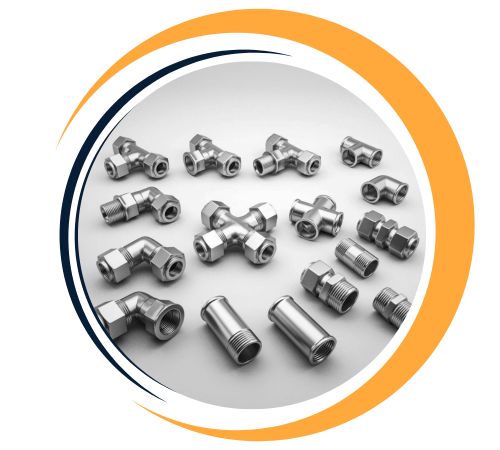

Devang Fittings is a well-respected manufacturer and supplier of high-performance Inconel forged fittings, proudly based in Kolkata, India. With a reputation for engineering excellence and precision in manufacturing, the company specializes in corrosion-resistant fittings crafted from top-notch Inconel alloys like Inconel 600, 625, and 825. These fittings are a go-to choice in harsh and high-temperature settings, thanks to their outstanding mechanical properties and metallurgical stability. Devang Fittings caters to a diverse range of industries, including oil & gas, aerospace, chemicals, and power. Committed to quality, timely delivery, and customer satisfaction, the company offers both standard and tailored solutions that adhere to rigorous international standards.
| Specifications | ASTM B564 & ASME SB564 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Grades | Inconel 600, 601, 625, 718, 783, 690, X750 Forged Fittings |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
The Inconel forged fittings produced by Devang Fittings are made using nickel-chromium-based superalloys, primarily Inconel 600, 625, and 825. These alloys typically consist of about 58–72% nickel, 14–23% chromium, along with elements like molybdenum, iron, and niobium, which provide exceptional resistance to corrosion and oxidation. Their mechanical properties boast tensile strength reaching up to 827 MPa, yield strength around 414 MPa, and remarkable resistance to creep and fatigue. These features make the fittings perfect for high-temperature and high-stress applications, such as in chemical plants, nuclear reactors, and offshore platforms, where traditional materials might not hold up.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 600 | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Inconel 625 | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 58.0 min | 20.0 – 23.0 |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
Devang Fittings is a leading supplier of Inconel Forged Fittings in Kolkata, India. We offer an extensive range of Inconel Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | EN | WERKSTOFF NR. | GOST | JIS | BS | AFNOR |
| Inconel 600 | N06600 | NiCr15Fe | 2.4816 | МНЖМц 28-2,5-1,5 | NCF 600 | NA 13 | NC15FE11M |
| Inconel 601 | N06601 | NiCr23Fe | 2.4851 | XH60BT | NCF 601 | NA 49 | NC23FeA |
| Inconel 625 | N06625 | NiCr22Mo9Nb | 2.4856 | ХН75МБТЮ | NCF 625 | NA 21 | NC22DNB4M |
| Inconel 718 | N07718 | – | 2.4668 | – | – | – | – |
Choose Inconel Forged Fittings from Devang Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Inconel Forged Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Inconel forged fittings from Devang Fittings are specifically engineered for extremely corrosive and high-temperature environments. You’ll often find these fittings in heat exchangers, pressure vessels, offshore drilling rigs, nuclear power plants, and exhaust systems in both aerospace and marine applications. Their ability to resist oxidation, stress-corrosion cracking, and thermal fatigue makes them ideal for critical operations involving acids, chlorides, and significant thermal gradients. Additionally, Inconel fittings are widely used in the petrochemical sector, flue gas scrubbers, and gas turbines. Devang Fittings ensures that every product meets strict quality control standards, guaranteeing reliability and performance.
