Devang Fittings is a premier manufacturer and distributor of excellent quality fittings in Kolkata, India. Specializing in providing an extensive range of industrial solutions, we are known for our excellent products and service. The Lap Joint Stub Ends that we create will provide reliability and durability, intended for many operations piping applications. We are firm believers in precision, quality, and customer satisfaction, and we have a reputation as a reliable name in the fittings industry.

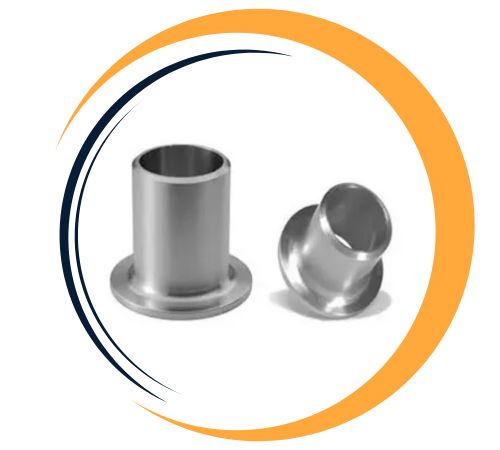

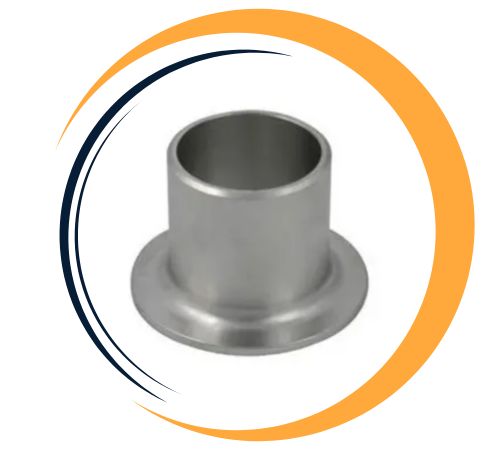

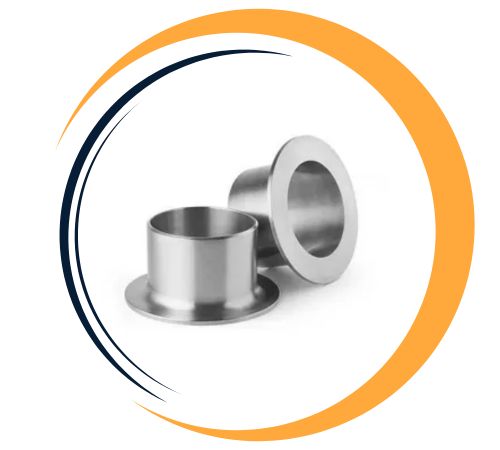

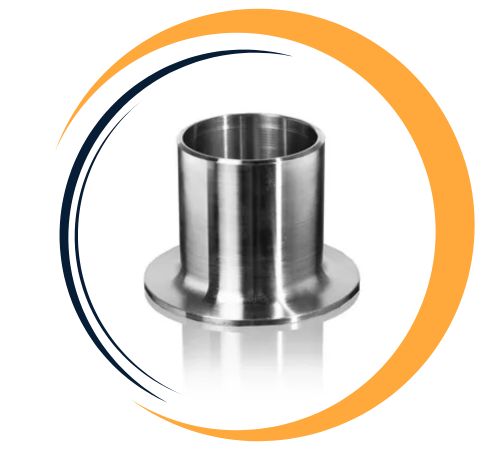

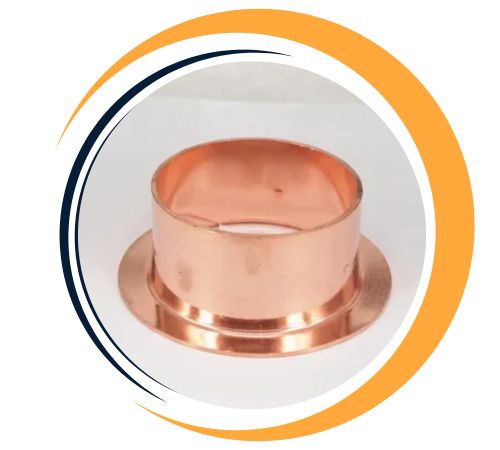

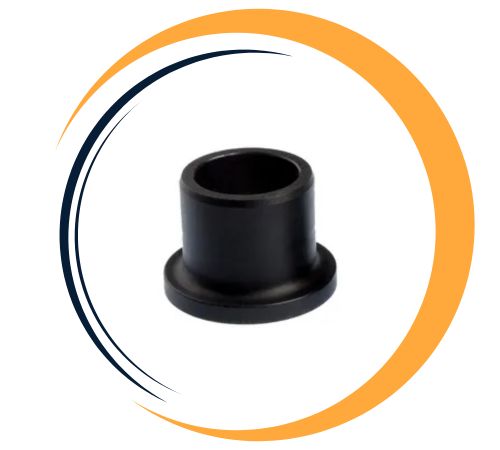

The Lap Joint Stub End can be made of a range of materials for the different industries. Materials include stainless steel (304, 316, 904L), carbon steel (ASTM A105, A234), alloy steel (ASTM A182, A335), duplex steel (S31803, S32205), super duplex steel (S32750, S32760), Monel (Mon constant Monel 400), Hastelloy (C276, C22), and Inconel (625, 718). Theses materials have various mechanical properties and some include high tensile strength (40,000 to 100,000 psi), excellent corrosion resistance, good ductility, and high weldability. Lap Joint Stub Ends operate well and provide reliable, leak-free, connections in high-pressure environments. These connections make them ideal to use in the oil and gas, chemical process, and power generation industries.
| Buttweld Lap Joint Stub Ends size | Welded Stub Ends : 1/2″ – 48″ |
|---|---|
| Buttweld Lap Joint Stub Ends Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Buttweld Lap Joint Stub Ends Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Buttweld Lap Joint Stub Ends Connection | Welding |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) Buttweld Stub Ends |
| ASME B16.9 Buttweld Lap Joint Stub Ends Manufacturing process | Push, Press, Forge, Cast, etc. |
| Buttweld Lap Joint Stub Ends Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| ANSI B16.9 Buttweld Lap Joint Stub Ends Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
Devang Fittings is a leading supplier of Lap Joint Stub Ends in Kolkata, India. We offer an extensive range of Lap Joint Stub Ends, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Lap Joint Stub Ends from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Lap Joint Stub Ends provide some advantages in piping systems. They are versatile and economical means of making connections, particularly in systems where there will need to be frequent disassembly to perform maintenance. The stub end design allows for easy and reliable alignment with the stub end and then welding, so the remaining parts are joined together and leak free. Ideal when using lap joint flanges, the stub end provides options, by facilitating differing orientations relating to the installation of the lap joint flange to the stub end, so the stub end is not at risk of misalignment with the flange. More than merely offering options with installation and versatility, it is important to highlight that lap joint stub ends offer an increased level of corrosion resistance and are also very good for moderate and high-pressure applications, as is typical of oil and gas, chemical, and power generation applications.
| Nominal Pipe Size
(NPS) |
Outside Diameter at Bevel | Long Pattern | Short Pattern | Radius of Fillet | Diameter of Lap | |
| Max | Min | F | F | R | G | |
| 1/2 | 22.8 | 20.5 | 76 | 51 | 3 | 35 |
| 3/4 | 28.1 | 25.9 | 76 | 51 | 3 | 43 |
| 1 | 35.0 | 32.6 | 102 | 51 | 3 | 51 |
| 1-1/4 | 43.6 | 41.4 | 102 | 51 | 5 | 64 |
| 1-1/2 | 49.9 | 47.5 | 102 | 51 | 6 | 73 |
| 2 | 62.4 | 59.5 | 152 | 64 | 8 | 92 |
| 2-1/2 | 75.3 | 72.2 | 152 | 64 | 8 | 105 |
| 3 | 91.3 | 88.1 | 152 | 64 | 10 | 127 |
| 3-1/2 | 104.0 | 100.8 | 152 | 76 | 10 | 140 |
| 4 | 116.7 | 113.5 | 152 | 76 | 11 | 157 |
| 5 | 144.3 | 140.5 | 203 | 76 | 11 | 186 |
| 6 | 171.3 | 167.5 | 203 | 89 | 13 | 216 |
| 8 | 222.1 | 218.3 | 203 | 102 | 13 | 270 |
| 10 | 277.2 | 272.3 | 254 | 127 | 13 | 324 |
| 12 | 328.0 | 323.1 | 254 | 152 | 13 | 381 |
| 14 | 359.5 | 354.8 | 305 | 152 | 13 | 413 |
| 16 | 411.0 | 405.6 | 305 | 152 | 13 | 470 |
| 18 | 462 | 456 | 305 | 152 | 13 | 533 |
| 20 | 514 | 507 | 305 | 152 | 13 | 584 |
| 22 | 565 | 558 | 305 | 152 | 13 | 641 |
| 24 | 616 | 609 | 305 | 152 | 13 | 692 |
Yes, custom sizes for Lap Joint Stub Ends are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Lap Joint Stub Ends are a great option for piping systems and are commonly used in industries that require ease of disassembly for cleaning or maintenance. They are typically used in the chemical processing, oil and gas, and power generation industries. The design of lap joint stub ends allows a flanged connection to align easily with another component. They are the right choice for service situations where recurring maintenance of the line is required or in which connections need to be adjusted without disturbing the entire system. They can be used for any high-pressure and/or high-temperature service because they are durable.
