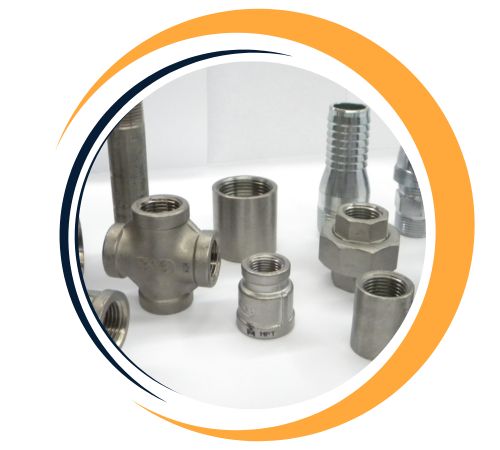

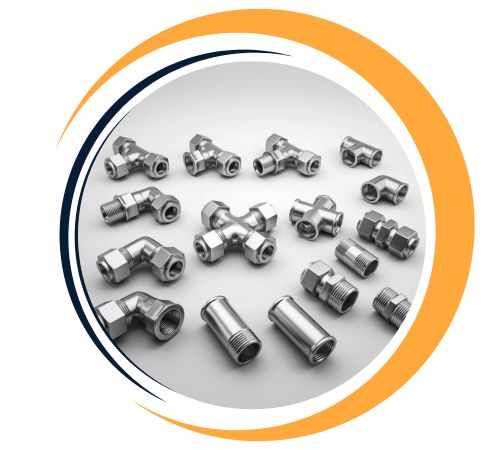

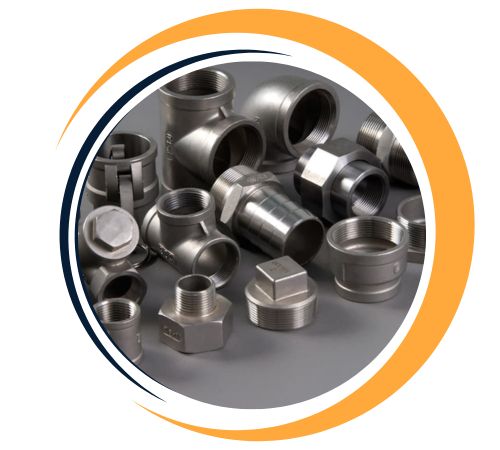

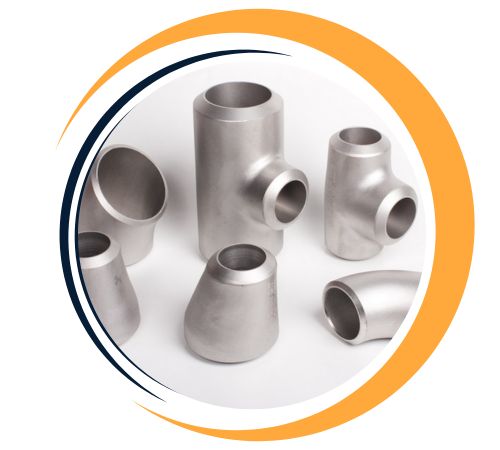

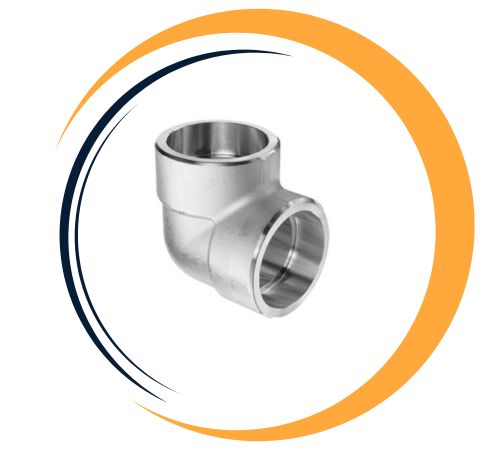

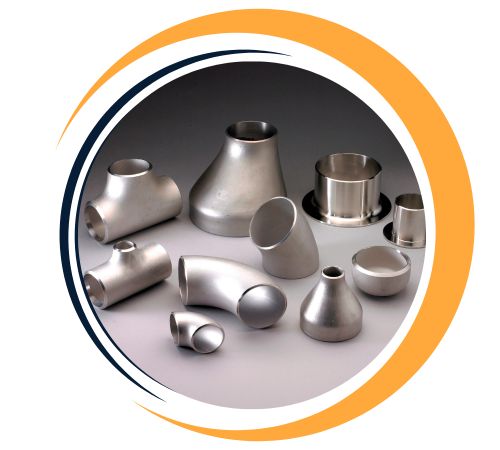

Devang Fittings, located in Kolkata, India, has built a solid reputation as a manufacturer and supplier of top-notch piping solutions. They specialize in high-quality Monel 400 Forged Fittings, designed to perform exceptionally well in harsh and corrosive environments. These fittings are crafted according to ASTM B564 and ASME B16.11 standards and come in various shapes, such as elbows, tees, couplings, unions, and bushings. Renowned for their impressive mechanical strength and remarkable resistance to corrosion from seawater, acids, and alkalis, Monel 400 forged fittings from Devang Fittings are a go-to choice in marine, chemical, oil & gas, and heat exchanger applications where long-lasting durability is essential.
Specification : ASTM B564 / ASME SB564
Dimension Standard : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS.
Socket-weld End – 3000 / 6000/ 9000 LBS.
Monel 400 Forged Fittings are primarily made up of nickel (around 63%) and copper (approximately 28–34%), along with small amounts of iron, manganese, and silicon. This solid-solution alloy is known for its excellent resistance to seawater, hydrofluoric acid, and alkaline conditions. Monel 400 boasts a tensile strength ranging from 480 to 620 MPa, a yield strength between 170 and 275 MPa, and an elongation of about 35%. The forged construction improves the grain structure, ensuring superior mechanical integrity, impact resistance, and precise dimensions, even in high-pressure and elevated-temperature situations. These characteristics make Monel 400 perfect for demanding industrial and marine applications.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
Devang Fittings is a leading supplier of Monel 400 Forged Fittings in Kolkata, India. We offer an extensive range of Monel 400 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Choose Monel 400 Forged Fittings from Devang Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Monel 400 Forged Fittings find extensive use in marine engineering, particularly for seawater piping, pump shafts, and valve components, thanks to their exceptional resistance to chloride stress corrosion and saltwater conditions. In the chemical processing sector, they are perfect for handling hydrofluoric acid, alkalis, and sulfuric acid. These fittings are also utilized in oil & gas refineries, heat exchangers, and power generation systems that require high mechanical strength and corrosion resistance. Their ability to maintain structural integrity in extreme temperatures makes them a reliable choice for various demanding applications.
Yes, custom sizes for Monel 400 Forged Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in
Monel 400 Forged Fittings are widely used in marine, chemical processing, and oil & gas industries due to their exceptional corrosion resistance. In marine environments, they are ideal for seawater systems, pumps, and heat exchangers. In chemical processing, these fittings are used in systems handling aggressive chemicals, high temperatures, and pressure. Monel 400 is also essential in aerospace for high-performance components. The fittings are reliable for applications in industries where resistance to seawater, acids, and other harsh environments is crucial, ensuring durability and long-term performance.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
