Devang Fittings is one of the top manufacturers and suppliers of Monel 400 Pipe Fittings in Kolkata, India, providing high-performance fittings designed for use in highly corrosive and demanding industrial situations. The fittings have excellent resistance to seawater, acids, and alkaline solutions and are, therefore, best suited for marine and chemical industries. Devang Fittings offers a comprehensive line of pipe fittings such as elbows, tees, reducers, couplings, and crosses, made to exacting tolerance and international specifications. With an impeccable reputation for quality, on-time delivery, and technical knowhow, Devang Fittings cater to mission-critical industries like oil and gas, shipbuilding, and chemical processing.
| Specification Properties: | Monel 400 Pipe Fittings |

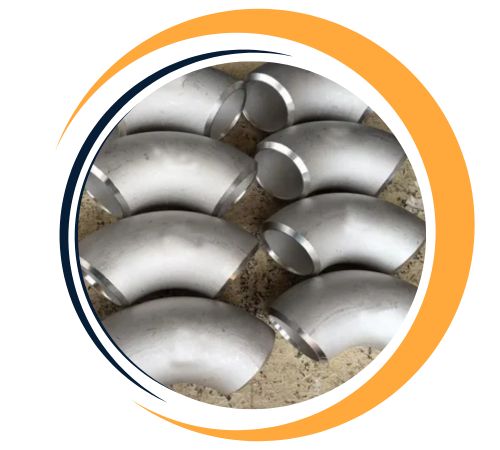

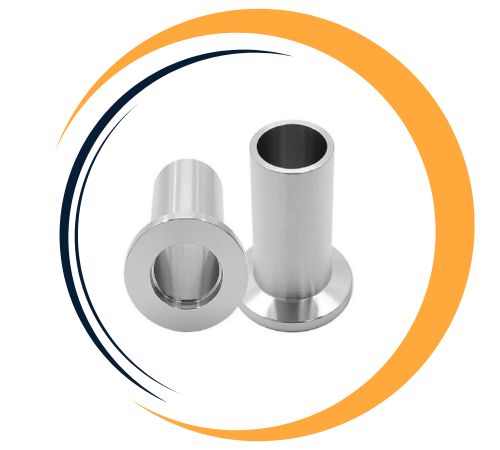

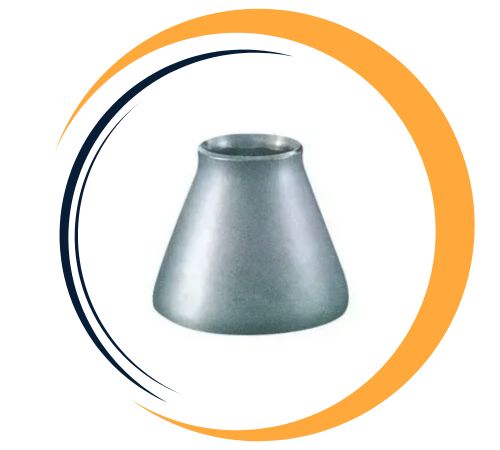

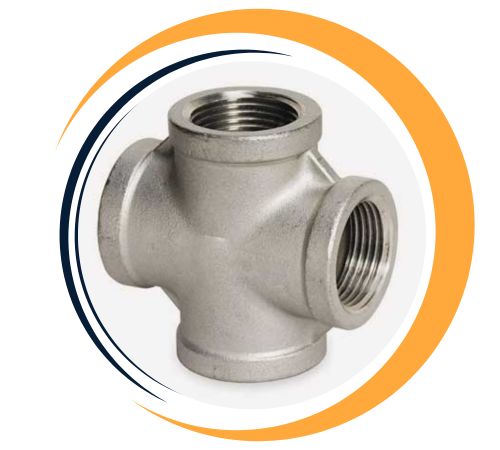

| Cmmonly Used Fittings Types | End Cap, Stub End, Bend, Tee, Reducer, Cross, Adapter, 4 Wye, Elbow |
| Flange Connection Type | Clamp End / End Bell/ Threaded/ Weld |
| Thickness Tolerance: | Schedule 20S To Schedule XXS |
| Length: | Normal Pipe Size (1⁄₂”) to Normal Pipe Size (48”) |
| Manufacturer Of Fittings Dimension Types: | ANSI B16.28, MSS-SP-43 Type A, JIS B2312, ANSI B16.9, MSS-SP-43 Type B, JIS B2313 |
| Standard Chart : | JIS, NPT, ISO, DIN, EN |
| Pressure Rating Chart : | 150# To 2500#. |
| Materials List: | Bronze, Copper, Iron (Ductile/Cast), Carbon Steel, Inconel, Monel, Hastalloy, Alloy Steel, Brass, Titanium, Chrome-molybdenum, Cupro-Nickel 90/10 & 70/30, Nickel, Nickel Alloys, Tantalum, Stainless Steel. |
Monel 400 Pipe Fittings are fabricated from nickel-copper alloy having nearly 63% of nickel and 30–34% of copper, with traces of iron, manganese, carbon, and silicon. The above composition imparts Monel 400 excellent corrosion resistance, especially in chemical and marine environments. These pipe fittings possess tensile strength of nearly 550–620 MPa and yield strength of nearly 170–345 MPa, with good ductility and toughness even at sub-zero temperatures. Monel 400 also has excellent weldability and mechanical properties under reducing and oxidizing conditions, which makes it compatible with severe service conditions.
| Grade | C | Mn | Si | Cu | S | Ti | Ni | Al | Fe |
| Monel 400 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.02 max | – | 63.0 min | 0.50 max | 1.0 – 2.5 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 35000 , MPa – 240 | 40 % |
Devang Fittings is a leading supplier of Monel 400 pipe fittings in Kolkata, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel 400 pipe fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

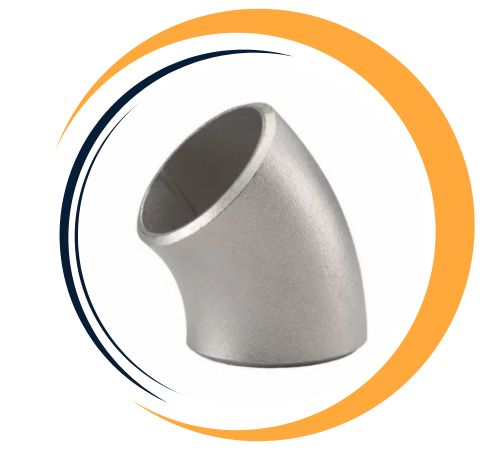

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Monel 400 pipe fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Monel 400 Pipe Fittings are used widely in marine engineering applications, offshore oil and gas platforms, chemical processing plants, power generation plants. They are best suited for applications in heat exchangers, pump shafts, piping for seawater, hydrofluoric acid, sulfuric acid, or alkalis handling systems. Owing to their superior corrosion resistance and strength, these fittings are widely used in piping systems demanding durability and reliability over a long period of time under high pressure and corrosive conditions. Monel 400’s resistance to pitting, stress corrosion cracking, and erosion also render it a material of choice in critical and safety-critical industrial applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
