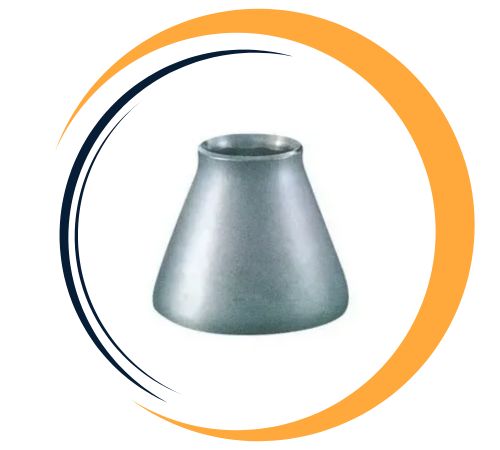

Devang Fittings is a leading manufacturer and exporter of Monel K500 Pipe Fittings in Kolkata, India, that offers high-strength, corrosion-resistant fittings suitable for employment under the most challenging industrial environments. The fittings are produced using a precipitation-hardened variation of Monel 400, which has the very good corrosion resistance of Monel supplemented with additional strength and hardness. Devang Fittings provides an extensive range of pipe fittings including elbows, tees, reducers, and couplings, all produced in accordance with international standards. With quality and reliability as its hallmark, the company is serving customers in marine, chemical, oil and gas, and aerospace industries across India and overseas.
Specifications ASTM B366 / ASME SB366
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, MSS SP-79
Size Seamless 1/2″ – 10″ , Welded 1/2″ – 48″
Type (Seamless & 100% X-Ray Welded, Fabricated)
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Grade Monel K500 Pipe Fittings UNS (N05500), DIN (2.4375)
Monel K500 Fittings consist mainly of 63% nickel and 29–33% copper, with minor additions of aluminium (2.3–3.15%) and titanium (0.35–0.85%) which facilitate age hardening. This alloy possesses much greater mechanical strength and hardness compared to Monel 400 but maintains good corrosion resistance. Monel K500 has a tensile strength of 965 MPa and yield strength of 690 MPa with satisfactory elongation and impact properties, even in sub-zero temperatures. These characteristics render it appropriate for high-stress applications where strength and resistance against aggressive media are necessary.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 115000 , MPa – 790 | Psi – 160000 , MPa – 1100 | 20 % |
Devang Fittings is a leading supplier of Monel K500 pipe fittings in Kolkata, India. We offer an extensive range of Monel K500 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel K500 | 2.4375 | N05500 | – | – | – | – | – |
Monel K500 pipe fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

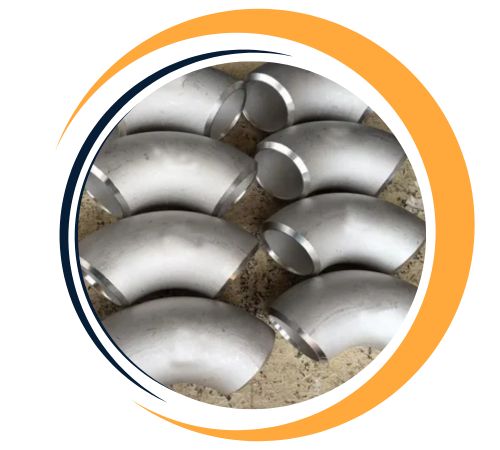

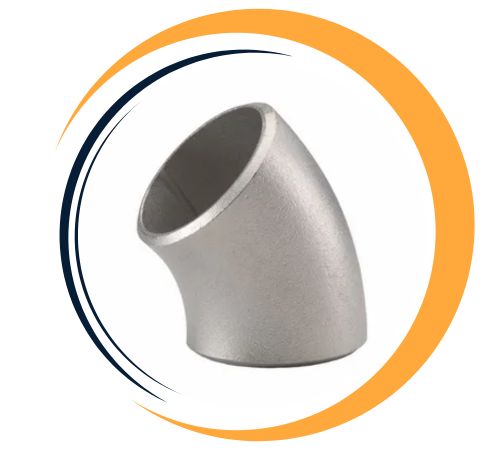

| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Monel K500 Pipe Fittings offer exceptional advantages, including superior corrosion resistance, making them ideal for marine and chemical industries. They combine high strength and toughness with excellent resistance to stress corrosion cracking and erosion in harsh environments. Their non-magnetic properties and outstanding thermal conductivity make them versatile for diverse applications. Monel K500 fittings maintain mechanical properties even at sub-zero and elevated temperatures, ensuring durability and reliability. Additionally, their ease of machining and fabrication allows for custom designs, meeting various industrial needs with long-term performance and low maintenance requirements.
| O.D. or I.D. Diameter | Equivalent Decimal | Nominal Diameter | Typical Threads In Inch |
| 5/16 | 0.313 | 1/16 | 27 |
| 13/32 | 0.405 | 1/8 | 27 |
| 35/64 | 0.540 | 1/4 | 18 |
| 43/64 | 0.675 | 3/8 | 18 |
| 27/32 | 0.840 | 1/2 | 14 |
| 1-3/64 | 1.050 | 3/4 | 14 |
| 1-5/16 | 1.315 | 1 | 11-1/2 |
| 1-21/32 | 1.660 | 1-1/4 | 11-1/2 |
| 1-29/32 | 1.900 | 1-1/2 | 11-1/2 |
| 2-3/8 | 2.375 | 2 | 11-1/2 |
| 2-7/8 | 2.875 | 2-1/2 | 8 |
| 3-1/2 | 3.500 | 3 | 8 |
| 4 | 4.000 | 3-1/2 | 8 |
| 4-1/2 | 4.500 | 4 | 8 |
Yes, custom sizes for Monel K500 pipe fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Monel K500 Pipe Fittings find extensive application in high-performance applications including offshore oil drilling platforms, marine equipment, chemical processing facilities, and heat exchangers. They are appropriate for non-magnetic components, high-velocity seawater systems, as well as equipment handling sour gas or acidic environments. The superior resistance of the alloy to pitting, stress corrosion cracking, and erosion in aggressive environments recommends it for pump shafts, valve parts, and pressure vessels. With superior mechanical characteristics and long-term stability, Monel K500 fittings find application wherever strength, toughness, and corrosion resistance are essential to the operational reliability.
