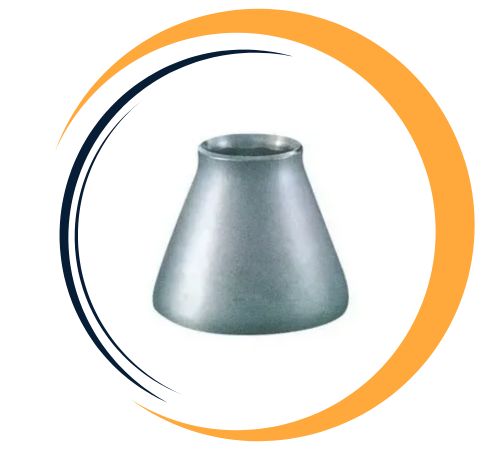

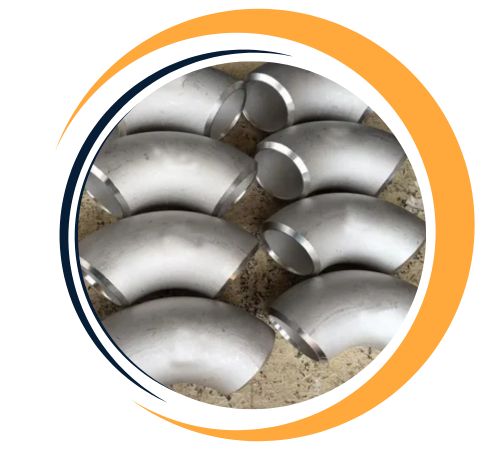

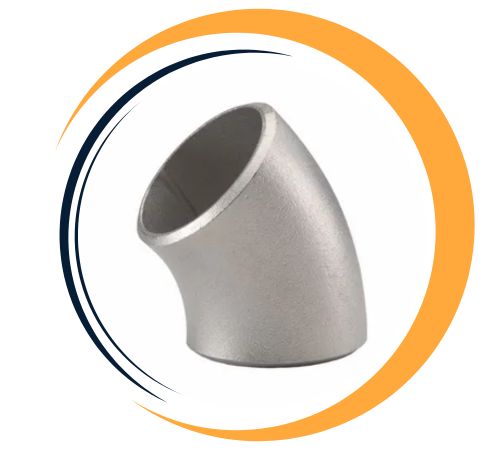

Devang Fittings is a trusted manufacturer and supplier of Nickel Alloy 200 Pipe Fittings in Kolkata, India, providing high-grade fittings for severe chemical and thermal conditions. Reputed for their purity and performance, the fittings are made from high-grade Nickel 200, which is a commercially pure (99.6%) wrought nickel. Devang Fittings offers a variety of products such as elbows, tees, reducers, and couplings that are of international standards and suitable for corrosive and high-temperature conditions. As a quality control oriented company that provides timely deliveries and superior customer satisfaction, Devang Fittings caters to clients from the chemical, marine, and power sectors.
| Specifications | ASTM B366 / ASME SB366, ASTM B366 UNS N02200, ASME SB366 UNS N02200 | |
|---|---|---|
| UNS N02200 Pipe Fittings size | Alloy 200 Seamless Butt Weld Fittings: 1/2″ – 10″ Alloy 200 Welded Butt Weld Fittings: 1/2″ – 48″ | |
| Nickel Alloy 200 Pipe Fittings Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504 , BS4504, BS1560, BS10 | |
| ASTM B366 UNS N02200 Fittings Available Thickness | Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 | |
| ASTM B366 200 Buttweld fitting Main Types | Seamless / Welded / Fabricated | |
| Nickel Alloy Ni200 Fittings Thread | NPT , BSPT, BSPP | |
| 2.4066 Nickel Fittings Type | DN15-DN1200 | |
| End | Threaded, Welding, JIC | |
| Hydraulic Tube Fittings Pressure Rating |
| |
| Connection | Welding | |
| UNS 2200 Buttweld Fitting Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc | |
| Application |
| |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | ||
Nickel Alloy 200 Pipe Fittings are made of 99.6% pure nickel, with minute traces of iron, manganese, carbon, and silicon. This alloy has good mechanical properties, such as tensile strength of approximately 480 MPa, yield strength of 140 MPa, and very good elongation. Nickel 200 has excellent corrosion resistance against a broad variety of corrosive media, particularly alkaline solutions. Its mechanical properties are maintained over a broad range of temperatures and exhibits superior thermal and electrical conductivity. These characteristics render it most appropriate for caustic solution, neutral salt, and reducing environment applications.
| Nickel 200 | Ni | C | Mo | Mn | Si | Fe | P | S | Cu | Cr |
| 99.0 min | 0.15 max | – | 0.35 max | 0.1 max | 0.4 max | – | 0.01 max | 0.25 max | – |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
Devang Fittings is a leading supplier of Nickel Alloy 200 Pipe Fittings in Kolkata, India. We offer an extensive range of Nickel Alloy 200 Pipe Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Nickel 200 | N02200 | 2.4066 | N-100M | Ni 99.2 | NW 2200 | NA 11 | НП-2 |
Nickel Alloy 200 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Yes, custom sizes for Nickel Alloy 200 Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Nickel Alloy 200 Pipe Fittings are extensively used in industries where there is a need for high corrosion resistance and thermal stability. Some of the common uses include equipment for chemical processing, caustic handling systems, marine and offshore piping, food processing equipment, and electrical and electronic components. These fittings find ideal application in environments that experience strong alkalis, acids, as well as high temperatures. Their purity coupled with low gas content makes them suitable for applications that demand high cleanliness levels, including in pharmaceuticals and electronics production. The durability and resistance to corrosion of the material also guarantee prolonged service life under demanding operating conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
