Devang Fittings, located in Kolkata, India, is a renowned manufacturer and supplier of quality industrial fittings, who specializes in delivering quality products. Our Reducing Outlet Tees work great for branching off a main pipeline with reliable size reduction for a smooth flow distribution. We make these tees from the best-suited materials for a durable, reliable valve. They are manufactured for industries such as oil and gas, water treatment and chemical processing. Our Reducing Outlet Tees are resistant to pressure, corrosion, and wear, and they stay in service longer.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Reducing Tee and Crosses, Fitting Outlet Reducing Tee and Crosses
Reducing Outlet Tees are often constructed from stainless steel, carbon steel and various alloys including Duplex and Super Duplex in accordance with the application. These materials provide good resistance to corrosion, strength and durability. The mechanical properties vary with material but include tensile strength (500-900 MPa), yield strength (250-700 MPa) and elongation (20-30). Reducing Outlet Tees can be used in high-pressure, high-temperature applications and provide a low-friction connection to the source of your fluid or gas flow. Reducing Outlet Tees provide a sturdy and reliable way to connect to any type of fluid or gas transmission system; they designed to offer trouble-free service in harsh industrial applications.

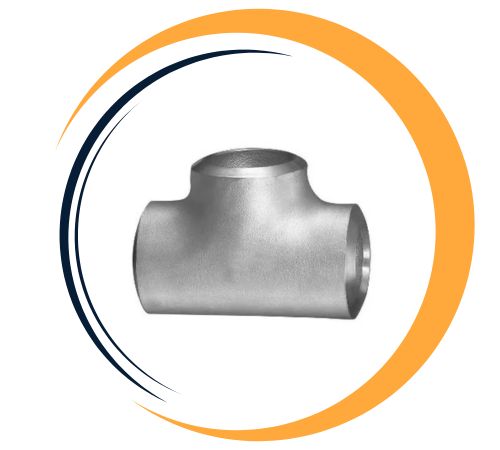

Stainless Steel Buttweld Reducing Tees & Crosses : ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L
Carbon Steel Buttweld Reducing Tees & Crosses : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

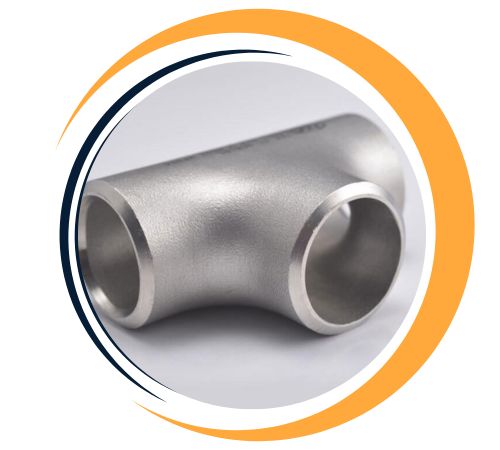

Alloy Steel Buttweld Reducing Tees & Crosses : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

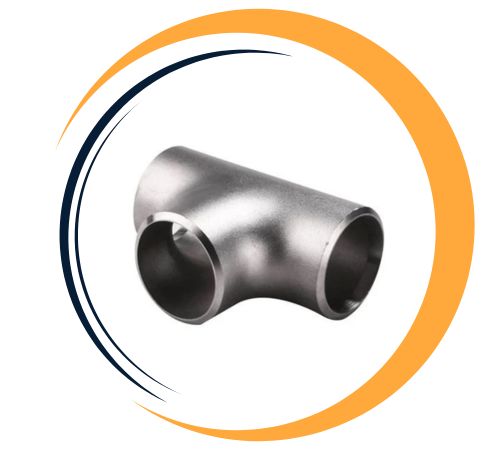

Duplex Steel Buttweld Reducing Tees & Crosses : ASTM A815, ASME SA815 UNS No S31803, S32205

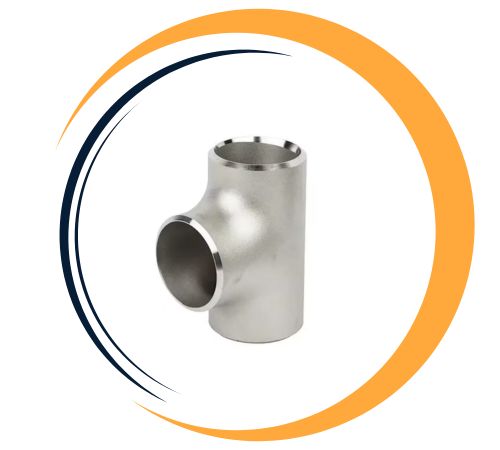

Super Duplex Buttweld Reducing Tees & Crosses : ASTM A815, ASME SA815 UNS No S32750, S32950

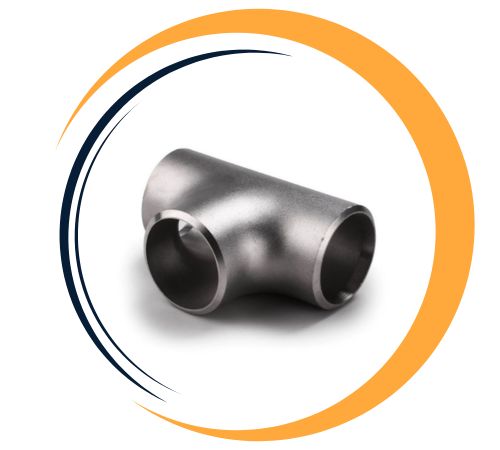

Nickel Alloy Buttweld Reducing Tees & Crosses : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Buttweld Reducing Tees & Crosses : ASTM A420 WPL3, A420 WPL6
Devang Fittings is a leading supplier of Reducing Outlet Tees in Kolkata, India. We offer an extensive range of Reducing Outlet Tees, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Reducing Outlet Tees from Devang Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Reducing Outlet Tees are advantageous because they can efficiently reduce the size of piping while conserving optimal flow distribution. This type of fitting conveniently branches off of a main pipeline and can be used in multiple fluid and gas systems. Typically composed of high-grade materials like stainless steel and alloys, these fittings provide exceptional corrosion resistance and durability in challenging environments. Reducing Outlet Tees are able to withstand high pressure and temperature for consistent performance in a variety of applications across industries like oil and gas, chemicals processing, and water treatment. The compact design also enables streamlined maintenance and installation.
Yes, custom sizes for Reducing Outlet Tees are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
| Nominal Pipe Size (NPS) | DN | Outlet Diameter at Bevel | Center- to-End | ||
| Run | Outlet | Run.C | Outlet. M[Notes(1)] | ||
| 1/2*1/2*3/8 | 15*15*10 | 21.3 | 17.3 | 25 | 25 |
| 1/2*1/2*1/4 | 15*15*8 | 21.3 | 13.7 | 25 | 25 |
| 3/4*3/4*1/2 | 20*20*15 | 26.7 | 21.3 | 29 | 29 |
| 3/4*3/4*3/8 | 20*20*10 | 26.7 | 17.3 | 29 | 29 |
| 1*1*3/4 | 25*25*20 | 33.4 | 26.7 | 38 | 38 |
| 1*1*1/2 | 25*25*15 | 33.4 | 21.3 | 38 | 38 |
| 1-1/4*1-1/4*1 | 32*32*25 | 42.2 | 33.4 | 48 | 48 |
| 1-1/4*1-1/4*3/4 | 32*32*20 | 42.2 | 26.7 | 48 | 48 |
| 1-1/4*1-1/4*1/2 | 32*32*15 | 42.2 | 21.3 | 48 | 48 |
| 1-1/2*1-1/2*1-1/4 | 40*40*32 | 48.3 | 42.2 | 57 | 57 |
| 1-1/2*1-1/2*1 | 40*40*25 | 48.3 | 33.4 | 57 | 57 |
| 1-1/2*1-1/2*3/4 | 40*40*20 | 48.3 | 26.7 | 57 | 57 |
| 1-1/2*1-1/2*1/2 | 40*40*15 | 48.3 | 21.3 | 57 | 57 |
| 2*2*1-1/2 | 50*50*40 | 60.3 | 48.3 | 64 | 60 |
| 2*2*1-1/4 | 50*50*32 | 60.3 | 42.2 | 64 | 57 |
| 2*2*1 | 50*50*25 | 60.3 | 33.4 | 64 | 51 |
| 2*2*3/4 | 50*50*20 | 60.3 | 73.0 | 64 | 44 |
| 2-1/2*2-1/2*2 | 65*65*50 | 73.0 | 60.3 | 76 | 70 |
| 2-1/2*2-1/2*1-1/2 | 65*65*40 | 73.0 | 48.3 | 76 | 67 |
| 2-1/2*2-1/2*1-1/4 | 65*65*32 | 73.0 | 42.2 | 76 | 64 |
| 2-1/2*2-1/2*1 | 65*65*25 | 73.0 | 88.9 | 76 | 57 |
| 3*3*2-1/2 | 80*80*65 | 88.9 | 73.0 | 86 | 83 |
| 3*3*2 | 80*80*50 | 88.9 | 60.3 | 86 | 76 |
| 3*3*1-1/2 | 80*80*40 | 88.9 | 48.3 | 86 | 73 |
| 3*3*1-1/4 | 80*80*32 | 88.9 | 101.6 | 86 | 70 |
| 3-1/2*3-1/2*3 | 90*90*80 | 101.6 | 88.9 | 95 | 92 |
| 3-1/2*3-1/2*2-1/2 | 90*90*65 | 101.6 | 73.0 | 95 | 89 |
| 3-1/2*3-1/2*2 | 90*90*50 | 101.6 | 60.3 | 95 | 83 |
| 3-1/2*3-1/2*1-1/2 | 90*90*40 | 101.6 | 48.3 | 95 | 79 |
| 4*4*3-1/2 | 100*100*90 | 114.3 | 101.6 | 105 | 102 |
| 4*4*3 | 100*100*80 | 114.3 | 88.9 | 105 | 98 |
| 4*4*2-1/2 | 100*100*65 | 114.3 | 73.0 | 105 | 95 |
| 4*4*2 | 100*100*50 | 114.3 | 60.3 | 105 | 89 |
| 4*4*1-1/2 | 100*100*40 | 114.3 | 48.3 | 105 | 86 |
| 5*5*4 | 125*125*100 | 141.3 | 114.3 | 124 | 117 |
| 5*5*3-1/2 | 125*125*90 | 141.3 | 101.6 | 124 | 114 |
| 5*5*3 | 125*125*80 | 141.3 | 88.9 | 124 | 111 |
| 5*5*2-1/2 | 125*125*65 | 141.3 | 73.6 | 124 | 108 |
| 5*5*2 | 125*125*50 | 141.3 | 60.3 | 124 | 105 |
Reducing Outlet Tees are widely used in many industries to generate branch connections with a reduction in pipe size. These fittings are essential to oil and gas pipelines, water treatment plants, chemical processing facilities, and various HVAC systems. They offer an efficient method of distributing flow in pipes of multiple diameters. Reducing Outlet Tees work great in situations where space is limited and multiple fluid streams have to be managed at varying pressures. They are durable fittings that resist corrosion, and provide reliability under high pressures and temperatures.
