SMO 254 Buttweld Fittings Manufacturer and Supplier in Kolkata, India

SMO 254 Buttweld Fittings are top-notch, corrosion-resistant components crafted for critical piping systems that operate in extremely harsh environments. Made by reputable suppliers like Devang Fittings in Kolkata, India, these fittings are specifically built to endure severe chloride-rich conditions and high temperatures. Their remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking makes them a go-to choice for offshore, marine, and chemical processing applications.

SMO 254 Pipe Elbow In India, SMO 254 Pipe Fittings United kingdom, SMO 254 Buttweld Elbow Kolkata, SMO S31254 Seamless Fittings Exporter Kolkata, SMO 254 Stainless Steel 1.4547 Butt Weld Pipe Fittings in India, SMO 254 Two Joint Pipe Fittings Kolkata, 254 SMO Welded Fittings Manufacturers in India, SMO 254 Buttweld Fittings In India, ASTM A240 WP3 254 SMO Buttweld Fittings Supplier in Kolkata, India.

SMO 254 Buttweld Fittings Specification

Specifications : ASTM A403 / ASME SA403

Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 3/4″ – 12″

Type : Seamless / Welded / Fabricated

Schedule : Sch 5 TO Sch XXS.

Thickness : 20 Swg., 18 Swg., 16 Swg., 14 Swg., 12 Swg., 10 Swg., & Sch. 10, Sch. 40, Sch. 80 etc.

SMO 254 is a super austenitic stainless steel, boasting a composition of about 20% chromium, 18% nickel, 6% molybdenum, along with enhanced nitrogen and copper content. This advanced alloy chemistry gives SMO 254 a high Pitting Resistance Equivalent Number (PREN) exceeding 42.5, showcasing its superior resistance in halide-rich environments. It offers a tensile strength of around 650 MPa, a yield strength of about 300 MPa, and outstanding ductility, weldability, and thermal stability even under extreme operating conditions.

SMO 254 Buttweld Fittings Chemical Composition

Grade	%	Ni	Cr	Mo	Cu	N	C	Mn	Si	P	S
SMO 254	Min.	17.5	19.5	6	0.5	0.18
SMO 254	Max.	18.5	20.5	6.5	1	0.22	0.02	1	0.8	0.03	0.01

SMO 254 Buttweld Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
SMO 254	8.0 g/cm3	1320-1390 ℃	650	300	35 %

ASTM A240 SMO 254 Buttweld Fittings Cross in India, SMO 1.4547 Buttweld Pipe Fittings United kingdom, SMO 254 Stainless Steel 254 Butt Weld Pipe Cap Kolkata, SMO 254 Eccentric Reducer Kolkata, SMO 254 Equal Tee India, 254 SMO Reducer in Kolkata, SMO 254 SR Elbow Exporter in India,

Largest SMO 254 Buttweld Fittings Supplier in Kolkata, India

Devang Fittings is a leading supplier of SMO 254 Buttweld Fittings in Kolkata, India. We offer an extensive range of SMO 254 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

SMO 254 Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	SIS	GOST	AFNOR	EN
SMO 254	1.4547	S31254	–	2378	–	Z1 CNDU 20.18.06Az	X1CrNiMoCuN20-18-7

Why Choose SMO 254 Buttweld Fittings from Devang Fittings?

SMO 254 Buttweld Fittingsfrom Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31254 Stub End Uk, ANSI B16.5 SMO 254 Pipe Fittings United kingdom, SMO 254 Pipe Bend Stockist in Kolkata, SMO 254 Pipe Nipple Manufacturer & Exporter in Kolkata, SMO 1.4547 Butt Weld Pipe Fittings in India, SMO 254 Pipe Two Joint Pipe Fittings Kolkata, 254 SMO Pipe Welded Fittings Manufacturers in India, SMO 254 Stainless Steel 254 Pipe Butt weld Fittings In India, ASTM A240 SMO 254 Pipe Butt Weld Fittings Supplier in Kolkata, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

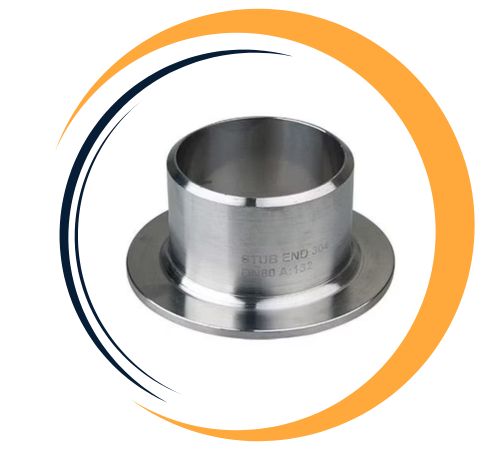

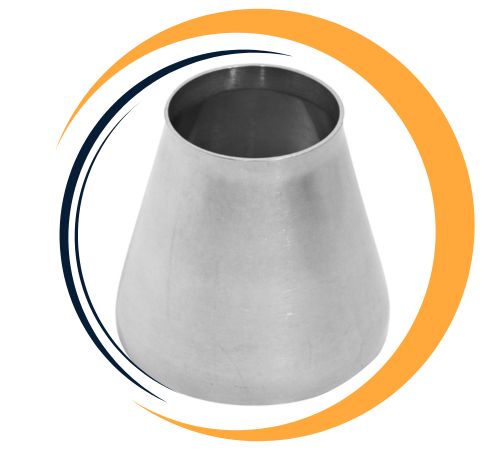

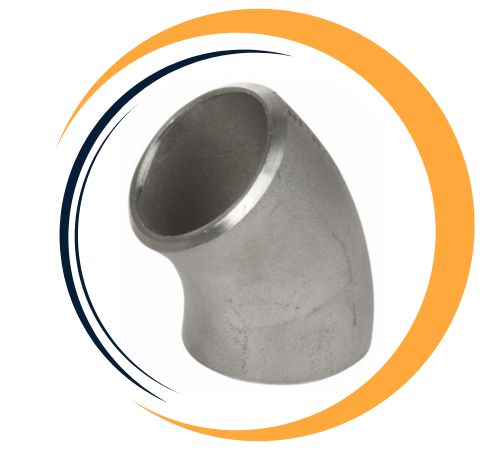

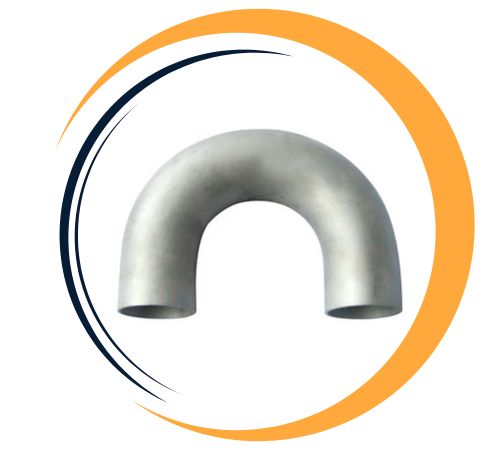

Types of SMO 254 Buttweld Fittings

SMO 254 Buttweld Fittings Dimensions Chart

Nom. Pipe Size	90° Elbows			45° Elbows		180° Return Bends				Tees		Lap Joint Stub Ends			Caps
	Long Rad.	Short Rad.	3R	Long Rad.	3R	Long Rad.		Short Rad.		C	M	F	G	R	E
	A	A	A	B	B	O	K	O	K	C	M	F	G	R	E
½	1.50	–	–	0.62	–	3.00	1.88	–	–	1.00	1.00	3.00	1.38	0.12	1.00
¾	1.50	–	–	0.75	–	3.00	2.00	–	–	1.12	1.12	3.00	1.69	0.12	1.00
1	1.50	1.00	–	0.88	–	3.00	2.19	2.00	1.62	1.50	1.50	4.00	2.00	0.12	1.50
1¼	1.88	1.25	–	1.00	–	3.75	2.75	2.50	2.06	1.88	1.88	4.00	2.50	0.19	1.50
1½	2.25	1.50	–	1.12	–	4.50	3.25	3.00	2.44	2.25	2.25	4.00	2.88	0.25	1.50
2	3.00	2.00	6.00	1.38	2.50	6.00	4.19	4.00	3.19	2.50	2.50	6.00	3.62	0.31	1.50
2½	3.75	2.50	7.50	1.75	3.12	7.50	5.19	5.00	3.94	3.00	3.00	6.00	4.12	0.31	1.50
3	4.50	3.00	9.00	2.00	3.75	9.00	6.25	6.00	4.75	3.38	3.38	6.00	5.00	0.38	2.00
3½	5.25	3.50	10.50	2.25	–	10.50	7.25	7.00	5.50	3.75	3.75	6.00	5.50	0.38	2.50
4	6.00	4.00	12.00	2.50	5.00	12.00	8.25	8.00	6.25	4.12	4.12	6.00	6.19	0.44	2.50
5	7.50	5.00	15.00	3.12	–	15.00	10.31	10.00	7.75	4.88	4.88	8.00	7.31	0.44	3.00
6	9.00	6.00	18.00	3.75	7.44	18.00	12.31	12.00	9.31	5.62	5.62	8.00	8.50	0.50	3.50
8	12.00	8.00	24.00	5.00	9.94	24.00	16.31	16.00	12.31	7.00	7.00	8.00	10.62	0.50	4.00
10	15.00	10.00	30.00	6.25	12.44	30.00	20.38	20.00	15.38	8.50	8.50	10.00	12.75	0.50	5.00
12	18.00	12.00	36.00	7.50	14.88	36.00	24.38	24.00	18.38	10.00	10.00	10.00	15.00	0.50	6.00
14	21.00	14.00	42.00	8.75	17.38	42.00	28.00	28.00	21.00	11.00	11.00	12.00	16.25	0.50	6.50
16	24.00	16.00	48.00	10.00	19.88	48.00	32.00	32.00	24.00	12.00	12.00	12.00	18.50	0.50	7.00
18	27.00	18.00	54.00	11.25	22.38	54.00	36.00	36.00	27.00	13.50	13.50	12.00	21.00	0.5	8.00
20	30.00	20.00	60.00	12.50	24.88	60.00	40.00	40.00	30.00	15.00	15.00	12.00	23.00	0.50	9.00
22	33.00	22.00	66.00	13.50	27.31	66.00	44.00	44.00	33.00	16.50	16.50	12.00	25.25	0.50	10.00
24	36.00	24.00	72.00	15.00	29.81	72.00	48.00	48.00	36.00	17.00	17.00	12.00	27.25	0.50	10.50
26	39.00	–	78.00	16.00	32.31	–	–	–	–	19.50	19.50	–	–	–	10.50
28	42.00	–	84.00	17.25	34.75	–	–	–	–	20.50	20.50	–	–	–	10.50
30	45.00	–	90.00	18.50	37.25	–	–	–	–	22.00	22.00	–	–	–	10.50
32	48.00	–	–	19.75	–	–	–	–	–	23.50	23.50	–	–	–	10.50
34	51.00	–	102.00	21.00	42.25	–	–	–	–	25.00	25.00	–	–	–	10.50
36	54.00	–	108.00	22.25	44.69	–	–	–	–	26.50	26.50	–	–	–	10.50
38	57.00	–	114.00	23.62	47.25	–	–	–	–	28.00	28.00	–	–	–	12.00
40	60.00	–	120.00	24.88	49.75	–	–	–	–	29.50	29.50	–	–	–	12.00
42	63.00	–	126.00	26.00	52.19	–	–	–	–	30.00	28.00	–	–	–	12.00
44	66.00	–	132.00	27.38	54.69	–	–	–	–	32.00	30.00	–	–	–	13.50
46	69.00	–	138.00	28.62	57.19	–	–	–	–	33.50	31.50	–	–	–	13.50
48	72.00	–	144.00	29.88	59.69	–	–	–	–	35.00	33.00	–	–	–	13.50

All dimensions given in inches for common diameters and wall thicknesses. Dimensions in accordance with ASME B16.9. Other sizes, schedules and wall thicknesses also available.

Are Custom Sizes Available for SMO 254 Buttweld Fittings?

Yes, custom sizes for SMO 254 Buttweld Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.

ASTM A403 SMO 254 Butt Weld Cross in India, SMO 1.4547 Buttweld Pipe Fittings United kingdom, SMO 254 Butt Weld Pipe Cap Kolkata, SMO 254 Eccentric Reducer Kolkata, Stainless Steel SMO 254 Equal Tee India, 254 SMO Reducer in Kolkata, SMO 254 SR Elbow Exporter in India,

Application Industry of SMO 254 Buttweld Fittings

You’ll find SMO 254 Buttweld Fittings commonly used in desalination plants, heat exchangers, pulp and paper bleaching systems, chemical tankers, and flue gas cleaning systems. Their smooth interior surface, high mechanical strength, and exceptional corrosion resistance make them perfect for transporting fluids under high pressure and temperature. These fittings guarantee a long service life and reliability in situations where standard stainless steels or duplex grades would quickly fail, providing a cost-effective and low-maintenance solution in tough industrial settings.
