SMO 254 Forged Fittings are top-notch, corrosion-resistant components crafted for use in extremely aggressive and chloride-heavy environments. Made by reputable suppliers like Devang Fittings in Kolkata, India, these fittings are perfect for critical systems that come into contact with seawater, brine, acids, and other tough chemical substances. Renowned for their outstanding strength, toughness, and resistance to corrosion, SMO 254 forged fittings outshine standard stainless steels and even many duplex grades in the most demanding service conditions.
| 254 Forged Fittings Specifications | ASTM A182/ ASME SA182 |
|---|---|
| 254 SMO Forged Fittings size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| 6 Moly Forged Fittings Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| SMO 254 Forged Fittings Types | Socketweld Fittings, Screwed-Threaded Fittings |
| ASTM A182 SMO 254 Forged Fittings Pressure Rating | Threaded End-2000lb/ 3000lb/ 6000lbs Socket-weld End-3000/ 6000/ 9000lbs |
| SMO 254 Forged Fittings Thread | NPT, BSPT, BSPP |
| SMO 254 Forged Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SMO 254 Forged Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

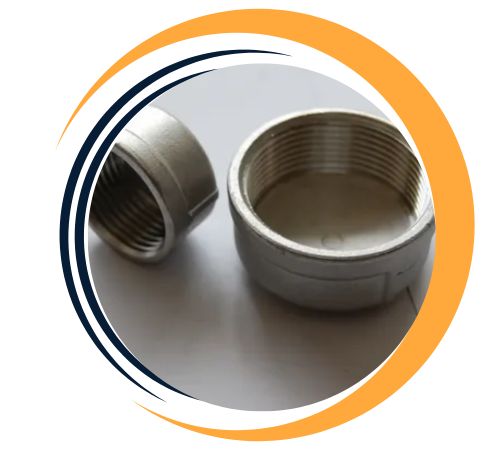

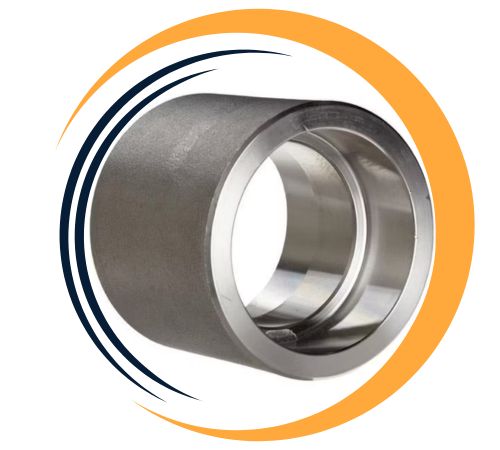

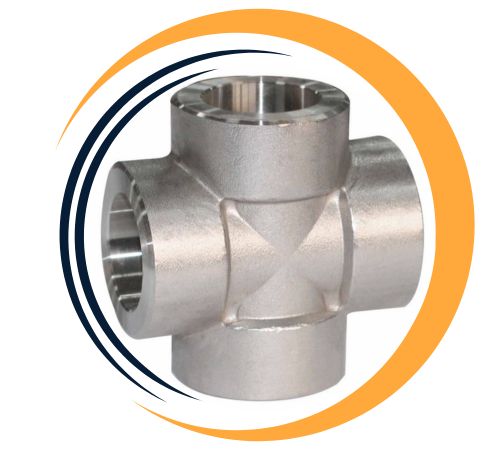

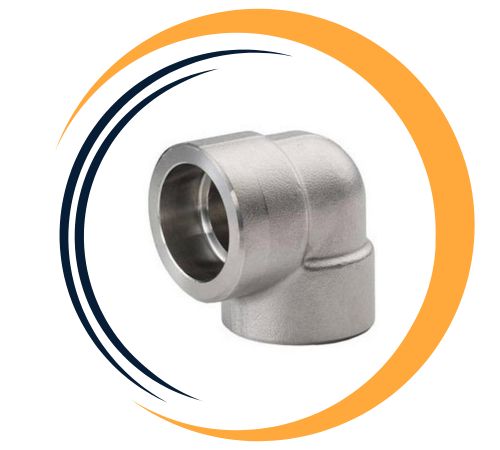

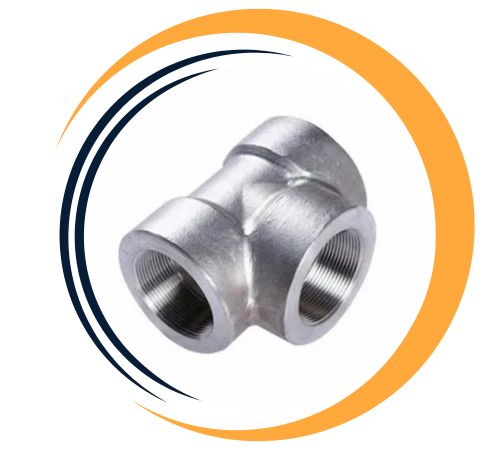

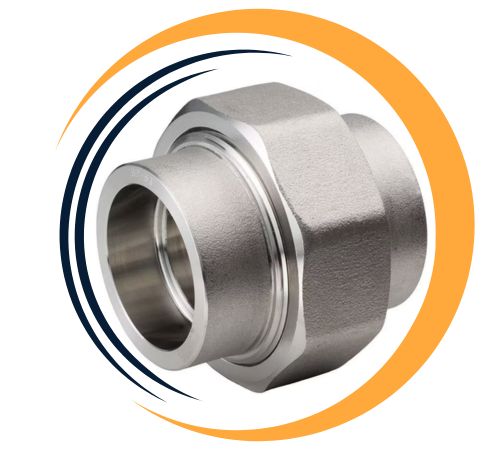

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
| Grade | Ni | Cr | Mo | Cu | N | C | Mn | Si | P | S |
| SMO 254 | 17.5 – 18.5 | 19.5 – 20.5 | 6 – 6.5 | 0.5 – 1 | 0.18 – 0.22 | 0.02 max | 1 max | 0.8 max | 0.03 max | 0.01 max |
| Density | Melting Point | Tensilee Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1320-1390 ℃ | 650 | 300 | 35 % |
SMO 254 is a super austenitic stainless steel alloy that boasts around 20% chromium, 18% nickel, 6% molybdenum, along with nitrogen and copper. This special chemical makeup gives the alloy an impressive Pitting Resistance Equivalent Number (PREN > 42.5), making it highly resistant to pitting, crevice corrosion, and stress corrosion cracking. With a tensile strength of about 650 MPa and a yield strength of around 300 MPa, it also offers excellent weldability and mechanical integrity, even under high pressures and temperatures.
Devang Fittings is a leading supplier of SMO 254 Forged Fittings in Kolkata, India. We offer an extensive range of SMO 254 Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SMO 254 | 1.4547 | S31254 | SIS 2378 | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| ASTM A182 / A182M | Forged Fittings and valves and parts for high temperature service. Standard Specification for Wrought Austenitic SMO Forged Fittings |
| BS21 | Threading. |
| BS3799 | Specification for Steel pipe fittings, screwed and Socket-welding for the petroleum industry |
| ANSI B16.11 | Forged steel fittings socket-welding and threaded. Socket Welding and Threaded Forged Fittings |
| ANSI/ASME B1.20.1 | Pipe threads, general purpose (inch). |
| ISO 4144 | SMO fittings threaded to ISO 7-1. |
| MSS SP-95 | Swage(d) Nipples and Bull Plugs |
Choose SMO 254 Forged Fittings from Devang Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for SMO 254 Forged Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in
You’ll find SMO 254 Forged Fittings commonly used in seawater cooling systems, desalination plants, offshore oil platforms, chemical processing, pulp and paper production, and flue gas scrubbing systems. Their ability to endure aggressive corrosive agents and high temperatures makes them a dependable choice for high-pressure applications in harsh environments. These fittings promise a long service life, lower maintenance costs, and superior performance where traditional stainless steels might fall short.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
