Stainless Steel 310 Pipe Fittings are heat-resistant parts designed for use in processes that subject equipment to extreme temperatures and oxidation. Built by reliable vendors such as Devang Fittings in Kolkata, India, the fittings find extensive application in environments where integrity, strength, and corrosion resistance are critical under long-term thermal exposure. Their accurate development provides lasting, leak-free connections to demanding industrial systems, particularly in thermal processing and heat-intense operations.
| Dimensions | ASME B16.28, MSS-SP-43, ASME/ANSI B16.9, BS4504, BS10, BS4504, BS1560, |
|---|---|
| Thickness | SCH10, SCH 80, SCH 100, SCH20, SCH30, STD SCH40, SCH 160, XXS, SCH60, XS, SCH 120, SCH 140, available with NACE MR 01-75 |
| Type | DN15-DN1200 |
| Connection | Welding |
| Bending Radius | R=2D, 3D, 5D, 6D, 8D, 1D, 10D or Custom |
| Manufacturing process | Press, Forge, Push, Cast, etc. |

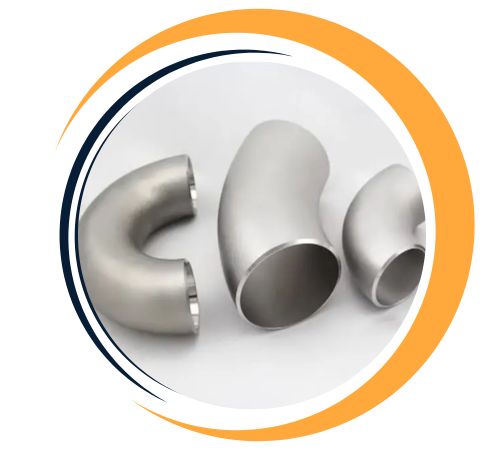

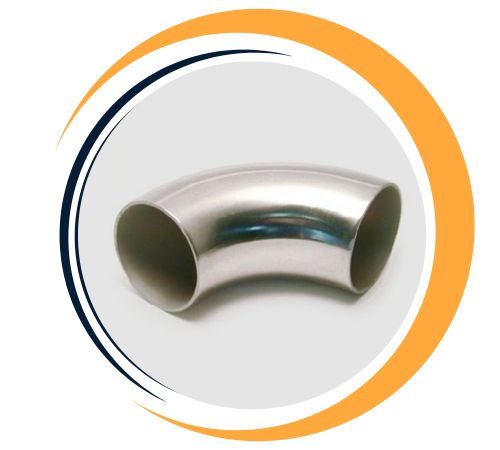

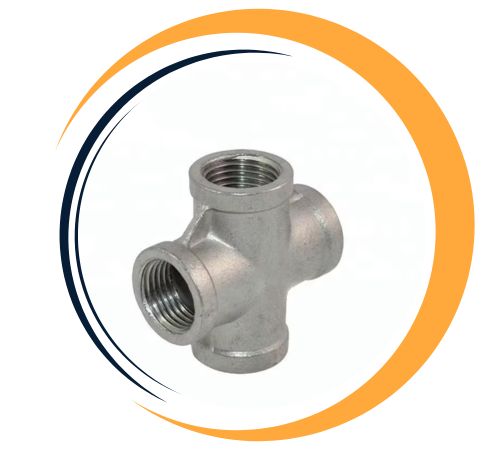

| Specialized manufacturer of | Tees, Crosses, Reducers, 90º Elbows, Stub End, Pipe Bend, 45º Elbows, Pipe Cap |
Grade 310 stainless steel is an austenitic stainless steel with about 24–26% chromium and 19–22% nickel content, which has excellent oxidation resistance to 1150°C in continuous exposure. It also offers a tensile strength of nearly 520 MPa and a yield strength of around 205 MPa, and good creep resistance and mechanical stability in high temperatures. The high nickel and chromium content of the alloy also provide high sulfidation and carburization resistance in hostile, high-temperature conditions.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 – 26.00 | 0.10 max | 19.00 – 21.00 | 54.7 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
Devang Fittings one of the largest suppliers of Stainless Steel 310 Pipe Fittings in Kolkata, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 310 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 310 Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 310 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 310 | 1.4841 | S31000 | SUS 310 | 310S24 | 20Ch25N20S2 | – | X15CrNi25-20 |
| Nominal PipeSize | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| (inches) | – | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | 7/16 | 2 1/4 | 1 11/16 | ||
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Yes, custom sizes are available for Stainless Steel 309S Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@devangfittings.co.in.
| NPS (inch) | Pipe Sch. | Wall Thk. (in) | OD (inch) | Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1″ | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2″ | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2″ | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3″ | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4″ | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5″ | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6″ | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8″ | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10″ | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
Stainless Steel 310 Pipe Fittings are used extensively in furnaces, kilns, heat exchangers, incinerators, and flue gas systems, and petrochemical and refinery processes. Their resistance to thermal cycling, oxidation, and corrosion makes them suitable for firebox service, combustion chambers, and heat treatment facilities. Stainless Steel 310 Pipe Fittings provide long service life, less maintenance, and high reliability, making them a best fit for heat-sustaining and corrosive industrial processes.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
