Stainless Steel 316H Buttweld Fittings are specially designed fittings for high-temperature, high-pressure piping systems that need high corrosion resistance and mechanical strength. They are provided by well-known manufacturers such as Devang Fittings in Kolkata, India. These fittings have higher carbon content than normal 316, offering increased strength when exposed to elevated temperatures while still having resistance to oxidation and corrosion. The buttweld configuration provides smooth flow conditions and leak-free, high-strength weld joints that are best suited for demanding applications in power plants, petrochemical, and chemical sectors.
| Specifications | ASTM A403 / ASME SA403 |
| Size | Seamless Butt Weld Fittings: 1/2″ – 24″, Welded Butt Weld Fittings: 1/2″ – 48″ |
| Standards | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Thickness | 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75 |
| Type | Seamless / Welded / Fabricated |
316H stainless steel is an austenitic steel composition with approximately 16–18% chromium, 10–14% nickel, and 2–3% molybdenum and with increased carbon content (usually 0.04–0.10%) to enhance tensile strength at high temperature. The alloy possesses tensile strength of approximately 520 MPa and yield strength of approximately 275 MPa, good toughness, and resistance to creep and stress corrosion cracking at high temperature. The balanced composition of the alloy provides durability and stability under oxidizing as well as mildly reducing conditions.
| Grade | 316/316H/316L | |
|---|---|---|
| min | max | |
| C | – | 0.035 |
| Mn | – | 2.0 |
| Si | – | 0.75 |
| P | – | 0.045 |
| S | – | 0.030 |
| Cr | 16.0 | 18.0 |
| Mo | 2.0 | 3.0 |
| Ni | 10.0 | 14.0 |
| N | – | – |
Devang Fittings is a leading supplier of Stainless Steel 304L Buttweld Fittings in Kolkata, India. We offer an extensive range of Stainless Steel 304L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 304L Buttweld Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

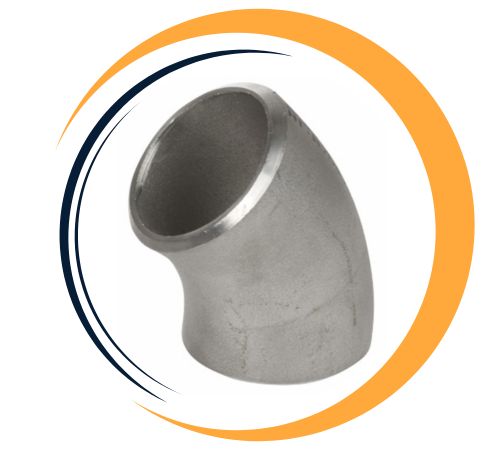

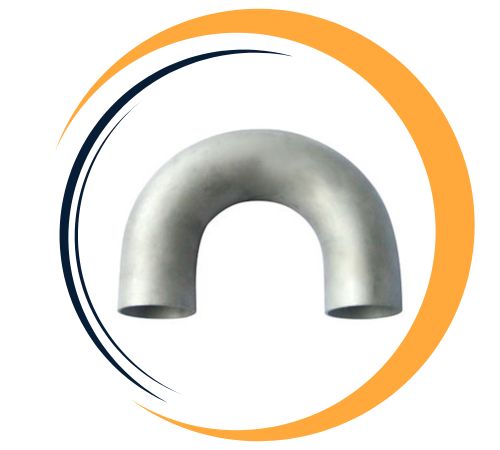

| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 304L Buttweld Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Stainless Steel 316H Buttweld Fittings find broad applications in boilers, heat exchangers, pressure vessels, and high-temperature piping systems in applications involving power generation, chemical processing, oil, and gas. While used to carry hot gases and fluids where mechanical strength and corrosion resistance are critical, they are a perfect solution. Their thermal cycling resistance and extreme chemical exposure capability guarantee extended life of service and low maintenance cost, which is a choice in high-temperature industrial usage.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
