Stainless Steel 316TI Buttweld Fittings Manufacturer and Supplier in Kolkata, India

Stainless Steel 316Ti Buttweld Fittings are top-class fittings that are meant to deliver superior corrosion resistance and mechanical strength in high-performance industrial piping systems. Produced by renowned manufacturers such as Devang Fittings in Kolkata, India, these fittings have a stabilized addition of titanium that enhances resistance to intergranular corrosion, particularly at higher temperatures. The buttweld configuration provides efficient flow of fluid and stable, permanent weld joints, which is well-suited for high-pressure and high-temperature applications where dependability and long-term durability are paramount.

Stainless Steel 316TI Pipe Elbow In India, Stainless Steel 316TI Pipe Fittings United kingdom, SS 316TI Buttweld Elbow Kolkata, Stainless Steel S31635 Seamless Fittings Exporter Kolkata, Stainless Steel 1.4571 Butt Weld Pipe Fittings in India, Stainless Steel 316TI Two Joint Pipe Fittings Kolkata, 316TI Stainless Steel Welded Fittings Manufacturers in India, Stainless Steel 316TI Buttweld Fittings In India, ASTM A403 WP3 316TI Stainless Steel Buttweld Fittings Supplier in Kolkata, India.

Stainless Steel 316TI Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP316Ti)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 316Ti
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

316Ti stainless steel is an austenitic alloy with about 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a slight addition of titanium to stabilize the material against carbide precipitation. It has tensile strength usually in the range of 515 MPa and yield strength close to 205 MPa, along with superior toughness and ductility. The alloy excels in corrosive environments like chemical processing, marine exposure, and heat exchangers, with retention of strength and corrosion resistance under conditions of thermal cycling.

Stainless Steel 316TI Buttweld Fittings Chemical Composition

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	Fe
SS 316Ti	0.08 max	2.0 max	0.75 max	0.045 max	0.030 max	16.00 – 18.00	2.00 – 3.00	10.00 – 14.00	68.395 min

Stainless Steel 316TI Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.0 g/cm3	1399 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 316TI Buttweld Fittings Cross in India, Stainless Steel 1.4571 Buttweld Pipe Fittings United kingdom, SS 316TI Butt Weld Pipe Cap Kolkata, Stainless Steel 316TI Eccentric Reducer Kolkata, Stainless Steel 316TI Equal Tee India, 316TI Stainless Steel Reducer in Kolkata, Stainless Steel 316TI SR Elbow Exporter in India,

Largest Stainless Steel 316TI Buttweld Fittings Supplier in Kolkata, India

Devang Fittings is a leading supplier of Stainless Steel 316TI Buttweld Fittings in Kolkata, India. We offer an extensive range of Stainless Steel 316TI Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 316TI Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
SS 316Ti	1.4571	S31635	SUS 316Ti	320S31	08Ch17N13M2T	Z6CNDT17‐123	X6CrNiMoTi17-12-2

Why Choose Stainless Steel 316TI Buttweld Fittings from Devang Fittings?

Stainless Steel 316TI Buttweld Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31635 Stub End Uk, ANSI B16.9 Stainless Steel 316TI Pipe Fittings United kingdom, Stainless Steel 316TI Pipe Bend Stockist in Kolkata, Stainless Steel 316TI Pipe Nipple Manufacturer & Exporter in Kolkata, Stainless Steel 1.4571 Butt Weld Pipe Fittings in India, Stainless Steel 316TI Pipe Two Joint Pipe Fittings Kolkata, 316TI Stainless Steel Pipe Welded Fittings Manufacturers in India, Stainless Steel 316TI Pipe Butt weld Fittings In India, ASTM A403 Stainless Steel 316TI Pipe Butt Weld Fittings Supplier in Kolkata, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

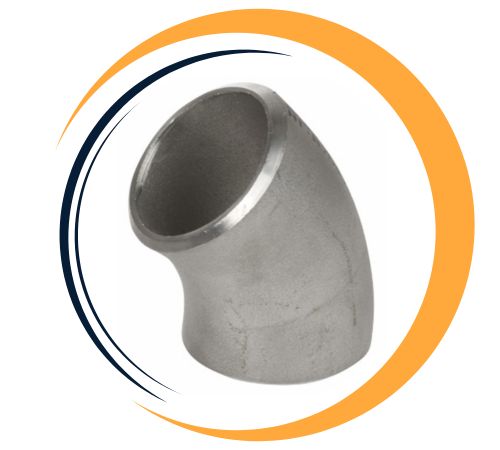

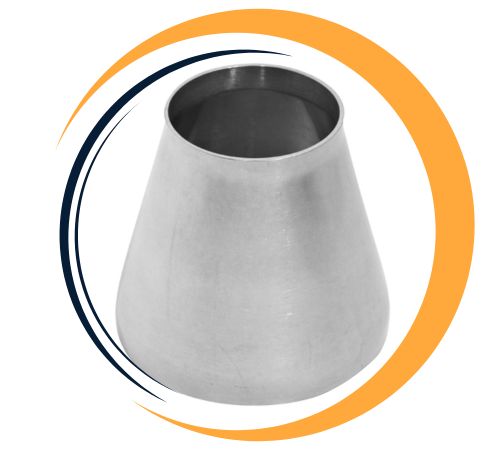

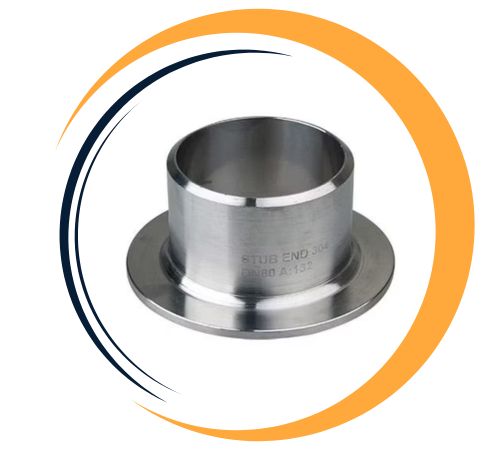

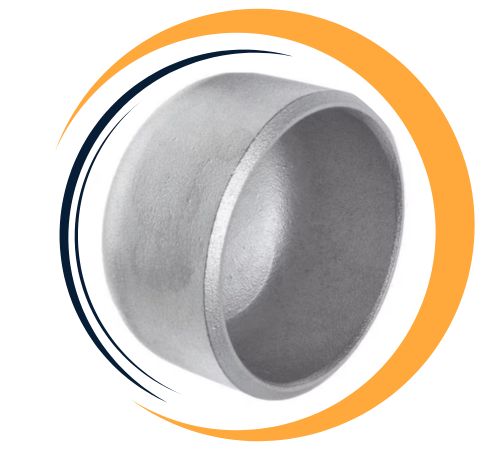

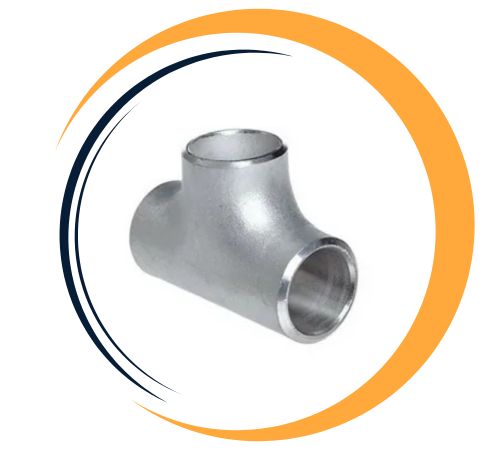

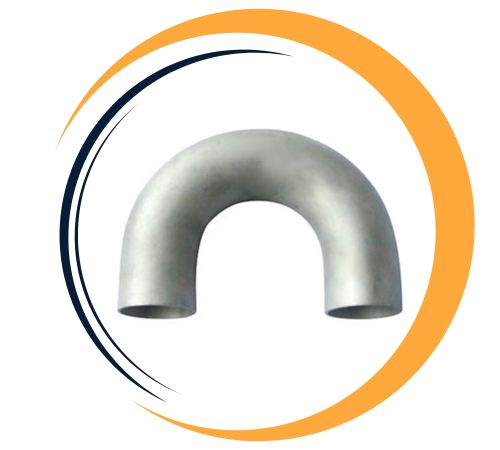

Types of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316TI Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 316TI Buttweld Fittings?

Yes, custom sizes for Stainless Steel 316TI Buttweld Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.

ASTM A403 Stainless Steel 316TI Butt Weld Cross in India, Stainless Steel 28011 Buttweld Pipe Fittings United kingdom, SS 316TI Butt Weld Pipe Cap Kolkata, Stainless Steel 316TI Eccentric Reducer Kolkata, Stainless Steel 316TI Equal Tee India, 316TI Stainless Steel Reducer in Kolkata, SS 316TI SR Elbow Exporter in India,

Application Industry of Stainless Steel 316TI Buttweld Fittings

Stainless Steel 316Ti Buttweld Fittings find extensive application in chemical and petrochemical facilities, food processing and pharmaceutical industries, power generation, and marine environments. Their ability to offer resistance against stress corrosion cracking, pitting, and crevice corrosion makes them ideal for those piping systems handling acidic or chloride-bearing fluids. They are also preferable in high-temperature conditions like boiler and heat exchanger tubes, offering endurance and lower maintenance requirements. They offer economical, dependable solutions for applications that demand heavy-duty, corrosion-resistant, and heat-stable piping parts.
