Stainless Steel 316Ti Pipe Fittings are titanium-stabilized, high-performance fittings suited for applications at high temperature and in extremely corrosive conditions. Produced by well-established suppliers such as Devang Fittings in Kolkata, India, they provide superior resistance to intergranular corrosion and high mechanical strength and are therefore best suited for welded structures and long-term operations in harsh chemical or thermal conditions. Titanium content avoids carbide precipitation during welding and thereby maintains the structure of the material in high-temperature applications.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
316Ti stainless steel is an austenitic alloy with about 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and very small amounts of titanium (about 0.5%), which stabilizes the alloy with respect to sensitization. It provides a tensile strength of around 550 MPa and a yield strength around 240 MPa, together with superior toughness, ductility, and resistance to pitting and crevice corrosion, particularly in chloride-rich environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |

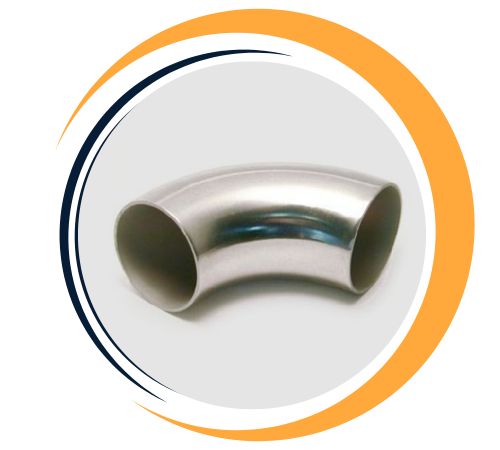

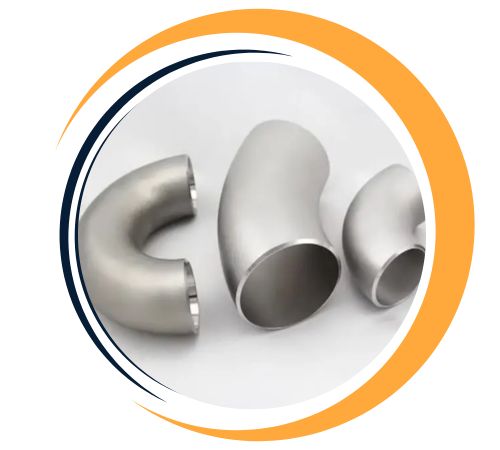

Devang Fittings one of the largest suppliers of Stainless Steel 316Ti Pipe Fittings in Kolkata, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 316Ti is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 316Ti Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 316Ti Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17-123 | X6CrNiMoTi17-12-2 |
Yes, custom sizes are available for Stainless Steel 316Ti Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@devangfittings.co.in.
| Product range and theoretical weights (kg) | |||||||||
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | 90° Elbow | 45° Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Stainless Steel 316Ti Pipe Fittings are extensively applied in heat exchangers, power generation systems, chemical processing plants, pharmaceutical plants, and marine applications where high temperature and aggressive chemicals are involved. Their high thermal stability and corrosion resistance property make them suitable for flue gas systems, boiler piping, and high-temperature process lines. These fittings offer a low-maintenance, strong solution for demanding applications with requirements for corrosion resistance and structural reliability during long service life.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
