Stainless Steel 317 / 317L Buttweld Fittings Manufacturer and Supplier in Kolkata, India

Stainless Steel 317 and 317L Buttweld Fittings are resistant parts used in challenging industrial piping systems that need better corrosion resistance to strong chemical environments. Produced by reliable suppliers such as Devang Fittings in Kolkata, India, these fittings have better protection against crevice corrosion and pitting than regular 316 grades due to their enhanced molybdenum content. The buttweld design produces smooth, leak-free joints, which are well suited for high-temperature and pressure applications in chemical, pharmaceutical, and food processing industries.

Stainless Steel 317 Pipe Elbow In India, Stainless Steel 317L Pipe Fittings United kingdom, SS 317 Buttweld Elbow Kolkata, Stainless Steel S31700 Seamless Fittings Exporter Kolkata, Stainless Steel 1.4449 Butt Weld Pipe Fittings in India, Stainless Steel 317 Two Joint Pipe Fittings Kolkata, 317L Stainless Steel Welded Fittings Manufacturers in India, Stainless Steel 317 Buttweld Fittings In India, ASTM A403 WP3 317L Stainless Steel Buttweld Fittings Supplier in Kolkata, India.

Stainless Steel 317 / 317L Buttweld Fittings Specification

Specifications	ASME SA403 / ASTM A403
Dimension Standard	ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49
Standard Size Range	1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded)
Manufacturing Type	Fabricated / Seamless / Welded / ERW
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom
Wall Thickness / Schedule	SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm
End Connection	Butt Weld
Melting Point	1400-1450°C for (WP317)
Outside Diameter (OD)	Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″)
Value Added Services	Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering
Other Standards	MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010
Material Test Certificates (MTC)	As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103
Materials	AISI 317
Two Halve / Two Joint Buttweld Fittings Size	6″ to 48″
Manufacturing Specification	ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2
A403 SS Seamless Fittings	Size: 15 NB to 300 NB \| Sch.& Swg: Sch.5 to Sch.XXs
A403 SS Welded Fittings	Size: 15 NB to 600 NB \| Sch.& Swg: Sch.5 to Sch.80s

Both 317 and 317L are austenitic stainless steels having around 18% chromium, 12% nickel, and 3–4% molybdenum. The “L” grade has a reduced carbon content, usually less than 0.03%, which improves weldability and reduces carbide precipitation. These alloys exhibit tensile strengths of about 515 MPa and yield strengths close to 205 MPa, along with very good toughness and ductility. Their high corrosion resistance qualifies them to handle acidic and chloride-rich fluids at high temperatures.

Stainless Steel 317 / 317L Buttweld Fittings Chemical Composition

Grade	C	Ni	Mn	P	S	Cr	Si	Mo	Fe
317	0.08 max	11.00 – 15.00	2 max	0.045 max	0.030 max	18.00 – 20.00	1 max	3.00 – 4.00	57.845 min

Stainless Steel 317 / 317L Buttweld Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
7.9 g/cm3	1400 °C (2550 °F)	Psi – 75000 , MPa – 515	Psi – 30000 , MPa – 205	35 %

ASTM A403 Stainless Steel 317 Buttweld Fittings Cross in India, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 317L Butt Weld Pipe Cap Kolkata, Stainless Steel 317 Eccentric Reducer Kolkata, Stainless Steel 317L Equal Tee India, 317 Stainless Steel Reducer in Kolkata, Stainless Steel 317L SR Elbow Exporter in India,

Largest Stainless Steel 317 / 317L Buttweld Fittings Supplier in Kolkata, India

Devang Fittings is a leading supplier of Stainless Steel 317 Buttweld Fittings in Kolkata, India. We offer an extensive range of Stainless Steel 317L Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

If You Are Looking To Buy High Quality

Stainless Steel 317 / 317L Buttweld Fittings Equivalent Grade

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN
317	1.4449	S31700	SUS 317	–	–	–	–

Why Choose Stainless Stainless Steel 317 / 317L Buttweld Fittings from Devang Fittings?

Stainless Steel 317 Buttweld Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

UNS S31700 Stub End Uk, ANSI B16.9 Stainless Steel 317L Pipe Fittings United kingdom, Stainless Steel 317 Pipe Bend Stockist in Kolkata, Stainless Steel 317L Pipe Nipple Manufacturer & Exporter in Kolkata, Stainless Steel 1.4449 Butt Weld Pipe Fittings in India, Stainless Steel 317 Pipe Two Joint Pipe Fittings Kolkata, 317L Stainless Steel Pipe Welded Fittings Manufacturers in India, Stainless Steel 317 Pipe Butt weld Fittings In India, ASTM A403 Stainless Steel 317L Pipe Butt Weld Fittings Supplier in Kolkata, India.

Customer Support

Largest Inventory

On Time Deliveries

ISO Certified

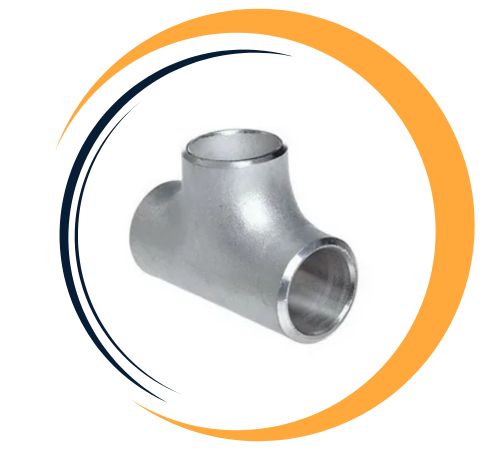

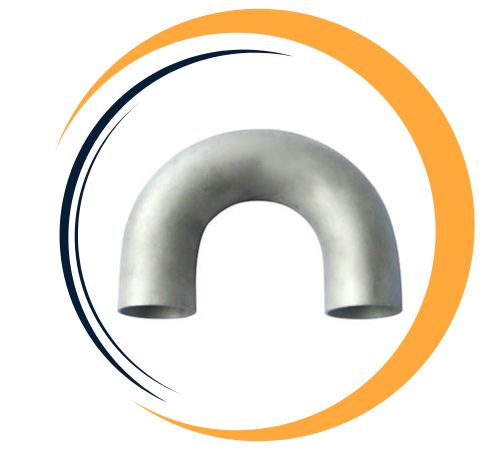

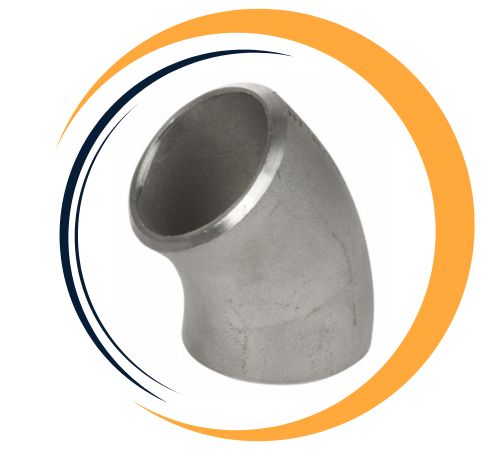

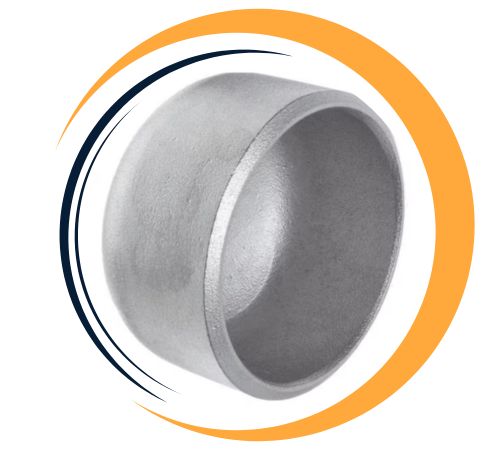

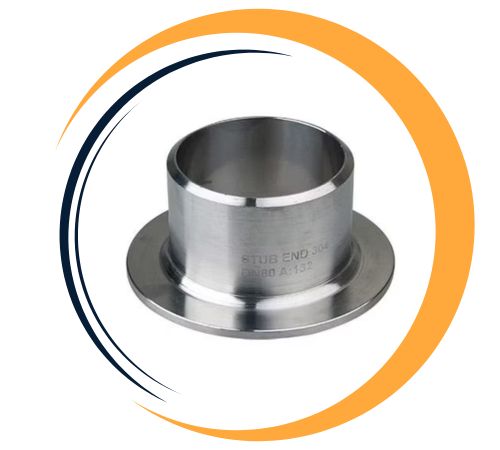

Types of Stainless Steel 317 / 317L Buttweld Fittings

Stainless Steel 317 / 317L Buttweld Fittings Dimensions Chart

Nominal Pipe Size (inches)	Outside Diameter		45°Elbows		90° Elbows		180° Returns
	Outside Diameter		Long Radius		Long Radius	Short Radius	Long Radius
	(mm)	(inches)	Center to Face (inches)	Radius (inches)	Center to Face (inches)	Center to Face (inches)	Center to Center (inches)	Back to face (inches)
1	33.4	1.315	7/8		1 1/2	1	3	2 3/16
1/2	21.3	0.840	5/8		1 1/2	–	2	1 7/8
3/4	26.7	1.050	7/16		1 1/8	–	2 1/4	1 11/16
1 1/4	42.2	1.660	1		1 7/8	1 1/4	3 3/4	2 3/4
1 1/2	48.3	1.900	1 1/8	3	2 1/4	1 1/2	4 1/2	3 1/4
2	60.3	2.375	1 3/8	4	3	2	6	4 3/16
2 1/2	73.0	2.875	1 3/4	5	3 3/4	2 1/2	7 1/2	5 3/16
3	88.9	3.500	2	6	4 1/2	3	9	6 1/4
3 1/2	101.6	4.000	2 1/4	7	5 1/4	3 1/2	10 1/2	7 1/4
4	114.3	4.500	2 1/2	8	6	4	12	8 1/4
5	141.3	5.563	3 1/8	10	7 1/2	5	15	10 5/16
6	168.3	6.625	3 3/4	12	9	6	18	12 5/16
8	219.1	8.625	5	12	12	8	24	16 5/16
10	273.1	10.750	6 1/4	15	15	10	30	20 3/8
12	323.9	12.750	7 1/2	18	18	12	36	24 3/8

Are Custom Sizes Available for Stainless Steel 317 / 317L Buttweld Fittings?

Yes, custom sizes for Stainless Steel 317 / 317L Buttweld Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.

ASTM A403 Stainless Steel 317 Butt Weld Cross in India, Stainless Steel 1.4449 Buttweld Pipe Fittings United kingdom, SS 317L Butt Weld Pipe Cap Kolkata, Stainless Steel 317 Eccentric Reducer Kolkata, Stainless Steel 317L Equal Tee India, 317 Stainless Steel Reducer in Kolkata, SS 317L SR Elbow Exporter in India,

Application Industry of Stainless Steel 317 / 317L Buttweld Fittings

Stainless Steel 317 / 317L Buttweld Fittings are extensively utilized in chemical processing, pharmaceutical production, food and beverage manufacturing, and pulp and paper. They are used in those environments where sulfuric, phosphoric, and hydrochloric acid resistance becomes absolutely necessary. Their stress corrosion cracking strength and resistance to harsh chemicals make them long-lasting and dependable for piping systems that handle corrosive media. These fittings provide an economical, rugged solution for industrial applications that need both strength and improved corrosion resistance.
