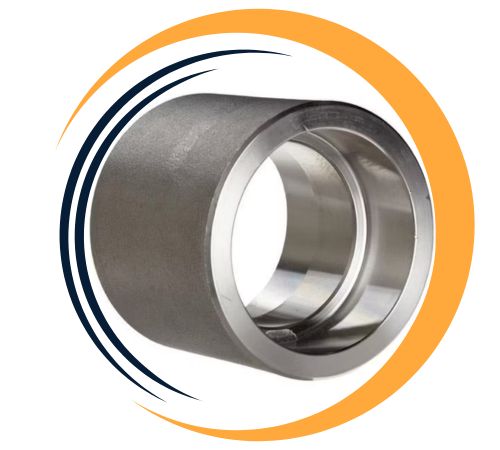

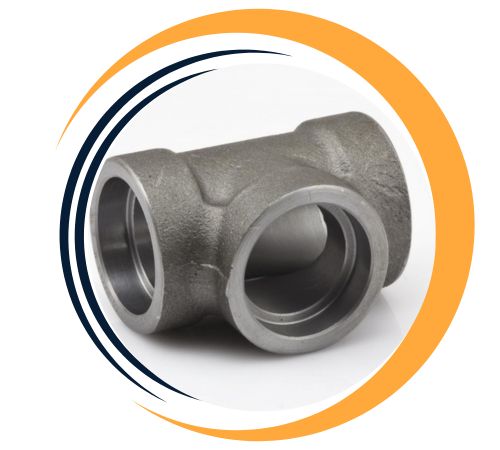

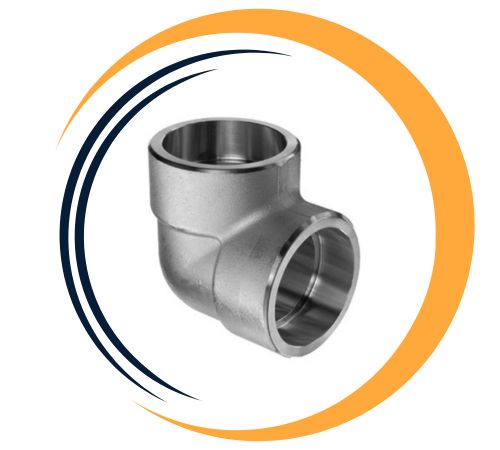

Devang Fittings is a top manufacturer and supplier of Stainless Steel 317 / 317L Forged Fittings in Kolkata, India, providing high-performance fittings for highly corrosive and high-temperature industrial applications. The forged fittings are accurately engineered to global standards and are supplied in a variety of shapes such as elbows, tees, couplings, and unions. Renowned for their high corrosion resistance and superior strength, 317 and 317L grades are most suitable for use in applications such as strong acids and chloride-containing environments. Devang Fittings believes in quality, prompt delivery, and customer satisfaction and caters to clients in chemical, pharmaceutical, and marine industries.
Specifications : ASTM A182 / ASME SA182
Dimensions : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
Stainless Steel 317 / 317L Forged Fittings are molybdenum-bearing austenitic stainless steels that contain increased corrosion resistance. Their standard composition consists of 18–20% chromium, 11–15% nickel, 3–4% molybdenum, and trace carbon content in 317L (up to 0.03%) for enhanced weldability. These types provide a tensile strength of approximately 515 MPa, yield strength of 205 MPa, and resistance to creep and stress rupture that is high. 317L offers better resistance to intergranular corrosion following welding. Their excellent mechanical and chemical properties make them particularly appropriate for use in applications where higher resistance to pitting and crevice corrosion is critical.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Devang Fittings is a leading supplier of Stainless Steel 317/317L Forged Fittings in Kolkata, India. We offer an extensive range of Stainless Steel 317/317L Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Choose Stainless Steel 317/317L Forged Fittings from Devang Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Stainless Steel 317/317L Forged Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in
| Fitting Schedule/Class | Pipe Size – Pipe Fitting | Fitting Connection Type | Pipe Fitting Material | Max. Pressure |
|---|---|---|---|---|
| Class 150 | 1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 1-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 2-1/2″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 3″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 3″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | Forged | Forged Stainless Steel 317 | 275 psi |
| Class 150 | 4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 4″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | FNPT | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 317 | 150 psi |
| Class 150 | 6″ | Welded | Stainless Steel 317 | 150 psi |
| DN-NPT | MAJOR DIAMETER MM | TAPPING DRILL SIZE MM | TPI | PITCH MM |
|---|---|---|---|---|
| 1/16″ | 7.895 | 6.00 | 27 | 0.941 |
| 1/8″ | 10.242 | 8.25 | 27 | 0.941 |
| 1/4″ | 13.616 | 10.70 | 18 | 1.411 |
| 3/8″ | 17.055 | 14.10 | 18 | 1.411 |
| 1/2″ | 21.223 | 17.40 | 14 | 1.814 |
| 3/4″ | 26.568 | 22.60 | 14 | 1.814 |
| 1″ | 33.228 | 28.50 | 11.5 | 2.209 |
| 1¼” | 41.985 | 37.00 | 11.5 | 2.209 |
| 1½” | 48.054 | 43.50 | 11.5 | 2.209 |
| 2″ | 60.092 | 55.00 | 11.5 | 2.209 |
| 2½” | 72.699 | 65.50 | 8 | 3.175 |
| 3″ | 88.608 | 81.50 | 8 | 3.175 |
| 3½” | 101.316 | 94.30 | 8 | 3.175 |
| 4″ | 113.973 | 107.00 | 8 | 3.175 |
| 5″ | 141.300 | 134.384 | 8 | 3.175 |
| 6″ | 168.275 | 161.191 | 8 | 3.175 |
| 8″ | 219.075 | 211.673 | 8 | 3.175 |
| 10″ | 273.050 | 265.311 | 8 | 3.175 |
| 12″ | 323.850 | 315.793 | 8 | 3.175 |
Stainless Steel 317 / 317L Forged Fittings are commonly used in chemical and marine environments that are aggressive in nature, particularly where sulfurous, acetic, formic, and tartaric acids resistance is essential. These fittings find broad use in the chemical processing sector, pulp and paper mills, textile machinery, fossil and nuclear power plant condensers, and food plants. Their high resistance to corrosion by chloride and high strength at high temperatures qualify them for applications in heat exchangers, pressure vessels, and high-pressure piping systems. The low carbon variant, 317L, is used in applications involving welding that need resistance to sensitization.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
