Stainless Steel 317 Pipe Fittings are alloy components particularly engineered for added corrosion resistance in highly aggressive chemical environments. Produced by reliable suppliers such as Devang Fittings in Kolkata, India, these fittings provide added resistance to pitting, crevice attack, and chemical assault, particularly under acidic or chloride-rich environments. With greater molybdenum compared to regular 316, 317 fittings are well suited for applications requiring long-term strength and structural integrity within corrosive process systems.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
Grade 317 stainless steel is an austenitic alloy with about 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, which greatly enhances its corrosion resistance compared to lower alloyed types. It possesses a tensile strength of around 515 MPa and yield strength of approximately 205 MPa, in addition to good ductility, weldability, and chemical attack resistance against sulfuric, acetic, and phosphoric acids. The alloy possesses mechanical strength and corrosion resistance in hot as well as cold temperature conditions.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Devang Fittings one of the largest suppliers of Stainless Steel 317 Pipe Fittings in Kolkata, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 317 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 317 Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 317 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
Yes, custom sizes are available for Stainless Steel 317 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@devangfittings.co.in.

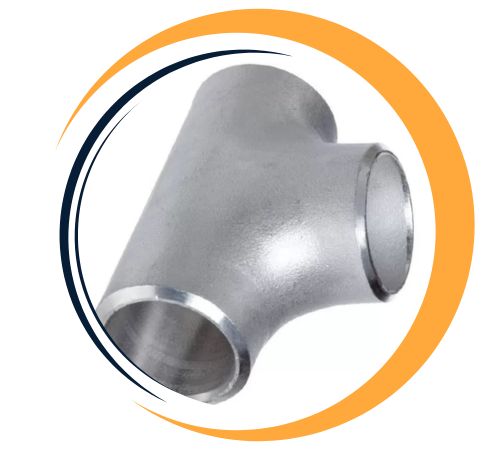

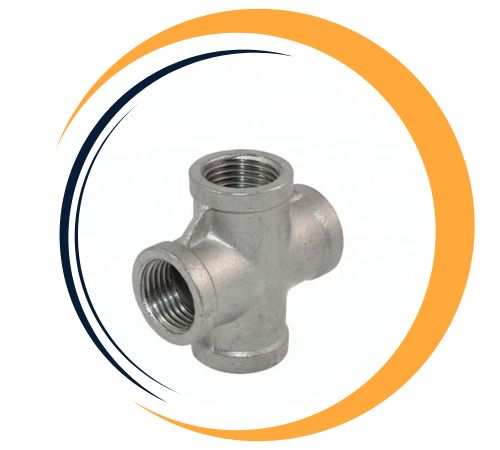

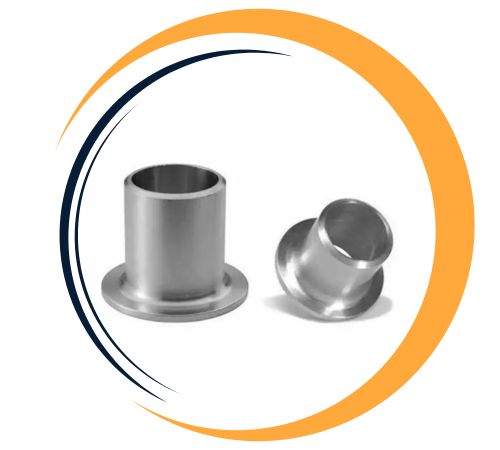

| Nominal Pipe Size | Straight Crosses | Straight Tees | Caps | Stub Ends | ||
|---|---|---|---|---|---|---|
| (inches) | Center to End (inches) | Center to End (inches) | Length (inches) | Long Length (inches) | Lap Diameter (inches) | Short Length (inches) |
| 1/2 | – | 1 | 1 | 3 | 1 3/8 | 2 |
| 1 1/2 | 2 1/4 | 2 1/4 | 1 1/2 | 4 | 2 7/8 | |
| 1 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | ||
| 2 1/2 | 3 | 3 | 1 1/2 | 6 | 4 1/8 | 2 1/2 |
| 3 | 3 3/8 | 3 3/8 | 2 | 5 | ||
| 2 | 2 1/2 | 2 1/2 | 1 1/2 | 3 5/8 | ||
| 4 | 4 1/8 | 4 1/8 | 2 1/2 | 6 3/16 | 3 | |
| 5 | 4 7/8 | 4 7/8 | 3 | 8 | 7 5/16 | |
| 8 | 7 | 7 | 4 | 10 5/8 | 4 | |
| 10 | 8 1/2 | 8 1/2 | 5 | 10 | 12 3/4 | 5 |
| 12 | 10 | 10 | 6 | 15 | 6 | |

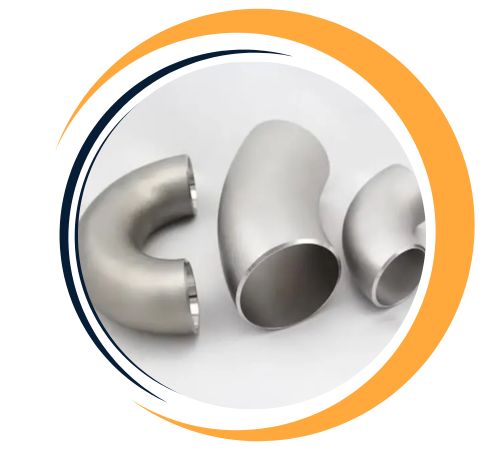

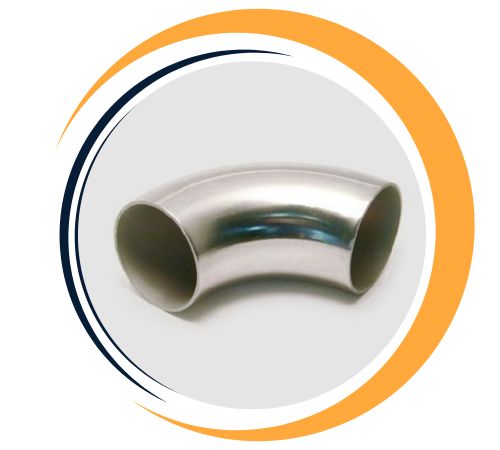

| NPS (Normal Pipe Size) | OD(Outside Daimeter) | 180 Deg Return Elbow | 90 Deg Elbow Fittings | 45 Deg Elbow Fittings | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Long Radius Elbow | Short Radius | Long Radius Elbow | ||||
| mm | inch | Back to face (Inch) | Center to Center (Inch) | Center to Face (Inch) | Center to Face (Inch) | Center to Face (Inch) | Radius (Inch) | |
| 12 | 323.9 | 12.750 | 24 3/8 | 36 | 18 | 12 | 7 1/2 | 18 |
| 3 | 88.9 | 3.500 | 6 1/4 | 9 | 4 1/2 | 3 | 2 | 6 |
| 1/2 | 21.3 | 0.840 | 1 7/8 | 2 | 1 1/2 | – | 5/8 | |
| 10 | 273.1 | 10.750 | 20 3/8 | 30 | 15 | 10 | 6 1/4 | 15 |
| 1 1/4 | 42.2 | 1.660 | 2 3/4 | 3 3/4 | 1 7/8 | 1 1/4 | 1 | |
| 1 | 33.4 | 1.315 | 2 3/16 | 3 | 1 1/2 | 1 | 7/8 | |
| 8 | 219.1 | 8.625 | 16 5/16 | 24 | 12 | 8 | 5 | 12 |
| 1 1/2 | 48.3 | 1.900 | 3 1/4 | 4 1/2 | 2 1/4 | 1 1/2 | 1 1/8 | 3 |
| 6 | 168.3 | 6.625 | 12 5/16 | 18 | 9 | 6 | 3 3/4 | 12 |
| 2 1/2 | 73.0 | 2.875 | 5 3/16 | 7 1/2 | 3 3/4 | 2 1/2 | 1 3/4 | 5 |
| 4 | 114.3 | 4.500 | 8 1/4 | 12 | 6 | 4 | 2 1/2 | 8 |
| 2 | 60.3 | 2.375 | 4 3/16 | 6 | 3 | 2 | 1 3/8 | 4 |
| 5 | 141.3 | 5.563 | 10 5/16 | 15 | 7 1/2 | 5 | 3 1/8 | 10 |
| 3 1/2 | 101.6 | 4.000 | 7 1/4 | 10 1/2 | 5 1/4 | 3 1/2 | 2 1/4 | 7 |
Stainless Steel 317 Pipe Fittings find widespread application in chemical processing, pulp and paper plants, textile dyeing machinery, petrochemical facilities, and marine operations. Their increased corrosion resistance renders them particularly appropriate for applications in surroundings with concentrated acids, chlorides, or other aggressive substances. These fittings provide dependable, long-lasting operation in demanding systems where corrosion failure of the material is not acceptable.
