Stainless Steel 317L Pipe Fittings are high-performance, corrosion-resistant fittings designed to be used in hostile chemical environments, especially where pitting and crevice corrosion resistance is to be enhanced. They are provided by reliable manufacturers such as Devang Fittings in Kolkata, India. These fittings are the low-carbon equivalent of stainless steel 317 and provide excellent weldability and corrosion resistance against intergranular corrosion, especially under welded construction and in high-temperature service.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
317L stainless steel is an austenitic alloy with about 18–20% chromium, 11–15% nickel, and 3–4% molybdenum with 0.03% max carbon. It has a much higher molybdenum content compared to regular 316L and this greatly enhances its resistance to acidic environments and chlorides. It has a tensile strength of about 515 MPa and a yield strength of about 205 MPa, and it is highly ductile and thermally stable.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |

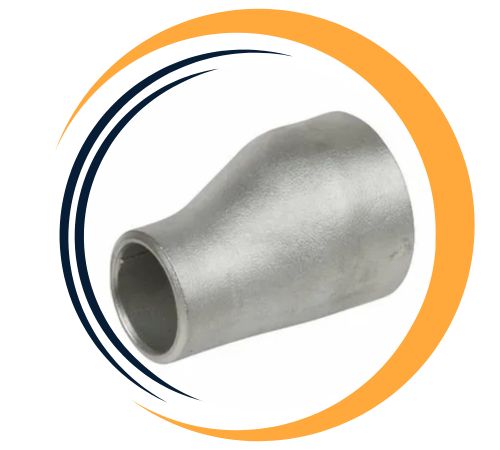

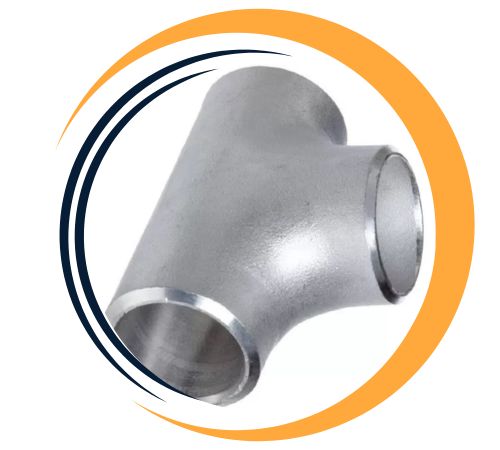

Devang Fittings one of the largest suppliers of Stainless Steel 317L Pipe Fittings in Kolkata, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 317L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 317L Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 317L Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
Yes, custom sizes are available for Stainless Steel 317L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@devangfittings.co.in.

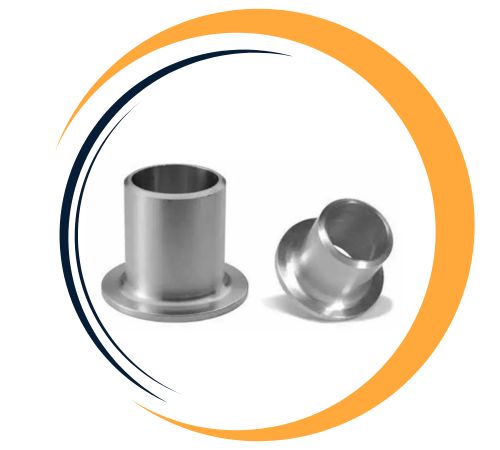

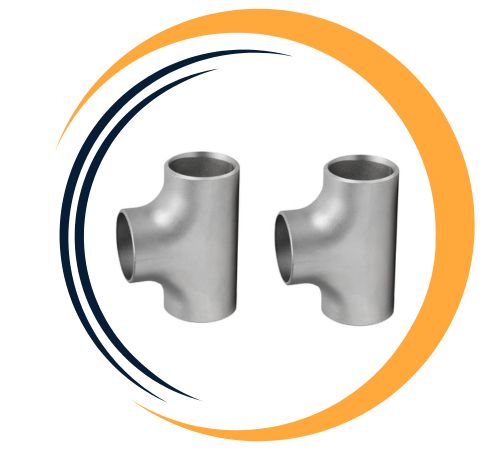

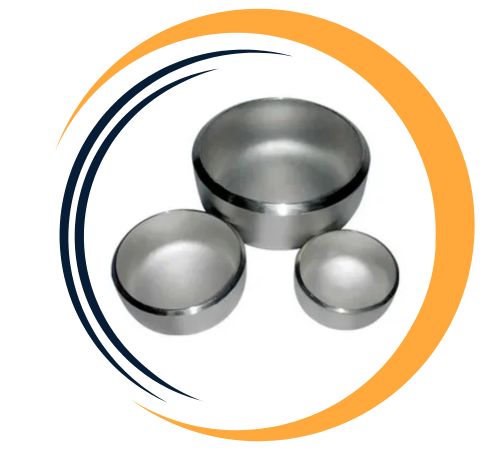

| Nominal Pipe Size | Straight Crosses | Straight Tees | Caps | Stub Ends | ||
|---|---|---|---|---|---|---|
| (inches) | Center to End (inches) | Center to End (inches) | Length (inches) | Long Length (inches) | Lap Diameter (inches) | Short Length (inches) |
| 1/2 | – | 1 | 1 | 3 | 1 3/8 | 2 |
| 1 1/2 | 2 1/4 | 2 1/4 | 1 1/2 | 4 | 2 7/8 | |
| 1 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | ||
| 2 1/2 | 3 | 3 | 1 1/2 | 6 | 4 1/8 | 2 1/2 |
| 3 | 3 3/8 | 3 3/8 | 2 | 5 | ||
| 2 | 2 1/2 | 2 1/2 | 1 1/2 | 3 5/8 | ||
| 4 | 4 1/8 | 4 1/8 | 2 1/2 | 6 3/16 | 3 | |
| 5 | 4 7/8 | 4 7/8 | 3 | 8 | 7 5/16 | |
| 8 | 7 | 7 | 4 | 10 5/8 | 4 | |
| 10 | 8 1/2 | 8 1/2 | 5 | 10 | 12 3/4 | 5 |
| 12 | 10 | 10 | 6 | 15 | 6 | |

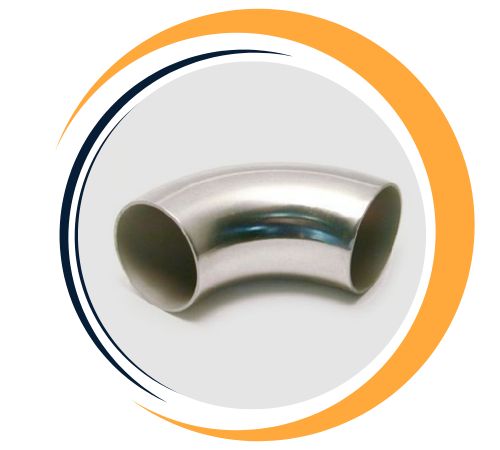

| NPS (Normal Pipe Size) | OD(Outside Daimeter) | 180 Deg Return Elbow | 90 Deg Elbow Fittings | 45 Deg Elbow Fittings | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Long Radius Elbow | Short Radius | Long Radius Elbow | ||||
| mm | inch | Back to face (Inch) | Center to Center (Inch) | Center to Face (Inch) | Center to Face (Inch) | Center to Face (Inch) | Radius (Inch) | |
| 12 | 323.9 | 12.750 | 24 3/8 | 36 | 18 | 12 | 7 1/2 | 18 |
| 3 | 88.9 | 3.500 | 6 1/4 | 9 | 4 1/2 | 3 | 2 | 6 |
| 1/2 | 21.3 | 0.840 | 1 7/8 | 2 | 1 1/2 | – | 5/8 | |
| 10 | 273.1 | 10.750 | 20 3/8 | 30 | 15 | 10 | 6 1/4 | 15 |
| 1 1/4 | 42.2 | 1.660 | 2 3/4 | 3 3/4 | 1 7/8 | 1 1/4 | 1 | |
| 1 | 33.4 | 1.315 | 2 3/16 | 3 | 1 1/2 | 1 | 7/8 | |
| 8 | 219.1 | 8.625 | 16 5/16 | 24 | 12 | 8 | 5 | 12 |
| 1 1/2 | 48.3 | 1.900 | 3 1/4 | 4 1/2 | 2 1/4 | 1 1/2 | 1 1/8 | 3 |
| 6 | 168.3 | 6.625 | 12 5/16 | 18 | 9 | 6 | 3 3/4 | 12 |
| 2 1/2 | 73.0 | 2.875 | 5 3/16 | 7 1/2 | 3 3/4 | 2 1/2 | 1 3/4 | 5 |
| 4 | 114.3 | 4.500 | 8 1/4 | 12 | 6 | 4 | 2 1/2 | 8 |
| 2 | 60.3 | 2.375 | 4 3/16 | 6 | 3 | 2 | 1 3/8 | 4 |
| 5 | 141.3 | 5.563 | 10 5/16 | 15 | 7 1/2 | 5 | 3 1/8 | 10 |
| 3 1/2 | 101.6 | 4.000 | 7 1/4 | 10 1/2 | 5 1/4 | 3 1/2 | 2 1/4 | 7 |
Stainless Steel 317L Pipe Fittings are found in chemical and petrochemical refineries, pulp and paper plants, textile dyeing machines, and marine atmospheres where frequent exposure to severe acids, chlorides, or high humidity occurs. Their high localized corrosion resistance and superior mechanical properties render them suitable for pressure vessels, heat exchangers, and process piping. Stainless Steel 317L Pipe Fittings offer a long service life and low maintenance for severe industrial applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
