Stainless Steel 321 Pipe Fittings are heat-stabilized, corrosion-resistant fittings for high-temperature operation and for service with frequent thermal cycling. Made by reputed manufacturers such as Devang Fittings in Kolkata, India, these fittings are stabilized with titanium, thereby inhibiting intergranular corrosion following welding. They are best used in applications where resistance to sustained heating and oxidation is necessary, e.g., chemical processing plants, refineries, and exhaust systems.
| Specifications | ASTM A403 / ASME SA403 |
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| Size Range | 15 NB UP TO 1200 NB ; 1/8″ NB TO 48″ NB |
| Schedule | SCH 5S , 10S ,10, 20 , 40S , 40 , STD , 60 , 80S , 80 , XS , 100 , 120 , 140 , 160 & XXS. |
| Type | Seamless & 100% X-Ray Welded, Fabricated |
Grade 321 stainless steel is an austenitic one with about 17–19% chromium, 9–12% nickel, and titanium (at least five times the carbon amount) to prevent carbide precipitation and stabilize the structure. It has a tensile strength of around 515 MPa and a yield strength of close to 205 MPa, with high ductility, toughness, and high-temperature scaling resistance. The alloy has good strength and corrosion resistance in continuous service to about 870°C.
| Grade | C | Mn | Si | P | S | Cr | N | Ni | Ti |
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 – 19.00 | 0.10 max | 9.00 – 12.00 | 5(C+N) – 0.70 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1457 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Devang Fittings one of the largest suppliers of Stainless Steel 321 Pipe Fittings in Kolkata, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 321 is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 321 Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 321 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 321 | 1.4541 | S32100 | SUS 321 | X6CrNiTi18-10 |
| Grade | Specific Heat 0-100°C (J/kg.K) | Mean Co-eff of Thermal Expansion (µm/m/°C) | Elastic Modulus (GPa) | Thermal Conductivity (W/m.K) | Density (kg/m3) | Elec Resistivity (nΩ.m) | |||
| 0-315°C | 0-100°C | 0-538°C | At 500°C | At 100°C | |||||
| Stainless Steel 321 | 500 | 17.2 | 16.6 | 18.6 | 193 | 22.2 | 16.1 | 8027 | 720 |
Yes, custom sizes are available for Stainless Steel 321 Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@devangfittings.co.in.
| Nominal Pipe Size | Inch | 3/4 | 1 1/4 | 2 | 3 | 4 | 6 | 10 | 12 | |
|---|---|---|---|---|---|---|---|---|---|---|
| OD. | Inch | 1.05 | 1.66 | 2.375 | 3.5 | 4.5 | 6.625 | 10.75 | 12.75 | |
| Millimeter | 26.7 | 42.2 | 60.3 | 88.9 | 114.3 | 168.3 | 273.1 | 323.9 | ||

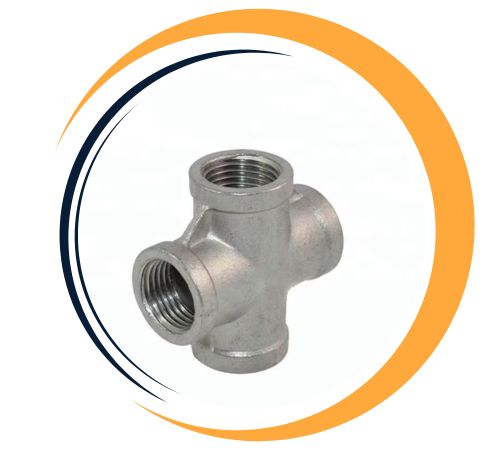

| Straight Crosses | Center to End | Inch | 1 7/8 | 2 1/2 | 3 3/8 | 4 1/8 | 5 5/8 | 8 1/2 | 10 | |
| Caps | L. | Inch | 1 | 1 1/2 | 1 1/2 | 2 | 2 1/2 | 3 1/2 | 5 | 6 |
| Stub Ends | Long L. | Inch | 3 | 4 | 6 | 6 | 6 | 8 | 10 | 10 |
| Lap Diameter | Inch | 1 11/16 | 2 1/2 | 3 5/8 | 5 | 6 3/16 | 8 1/2 | 12 3/4 | 15 | |
| Short L. | Inch | 2 | 2 | 2 1/2 | 2 1/2 | 3 | 3 1/2 | 5 | 6 | |
| Straight Tees | Center to End | Inch | 1 1/8 | 1 7/8 | 2 1/2 | 3 3/8 | 4 1/8 | 5 5/8 | 8 1/2 | 10 |

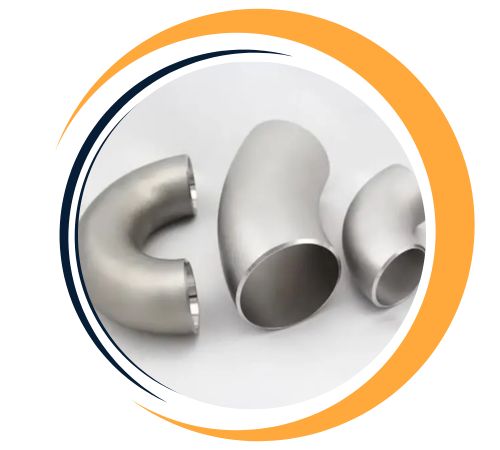

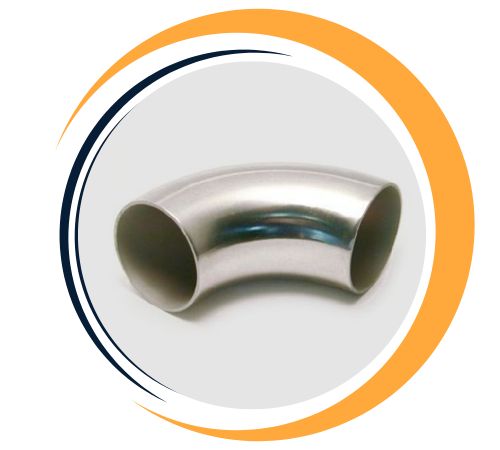

| Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
(inches) | Long Radius | Short Radius | Long Radius | Long Radius | ||||
(mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) | |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
321 Stainless Steel Pipe Fittings have wide applications in aerospace applications, furnace parts, heat exchangers, and chemical processing equipment. High temperature resistance and resistance to oxidation and stress corrosion make them a dependable choice for pipelines, steam lines, and flue gas systems. They offer long-term performance, particularly in welding applications where other stainless steels could be prone to sensitization, providing reliable performance in harsh industrial conditions.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
