Devang Fittings, a Kolkata-based, India-based company, is a well-established manufacturer and supplier of top-notch Stainless Steel 410 Buttweld Fittings. With a keen emphasis on precision engineering and product consistency, we provide fittings that can perform in harsh industrial applications. Our Stainless Steel 410 Buttweld Fittings are developed with superior-grade material and advanced technology to provide durability, strength, and corrosion resistance. Servicing various industries such as petrochemical, power generation, and oil & gas, we strive to provide timely solutions to national as well as international standards. Devang Fittings is your go-to company for high-performance, durable stainless steel piping components.
| Specifications | ASME SA403 / ASTM A403 |
|---|---|
| Dimension Standard | ASME/ANSI B16.9, MSS-SP-43/SP-79, ASME B16.28, ASME B16.25, ASME B16.49 |
| Standard Size Range | 1/2” NB TO 48” NB. (Fabricated, Seamless and 100% X-Ray Welded) |
| Manufacturing Type | Fabricated / Seamless / Welded / ERW |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D, or Custom |
| Wall Thickness / Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS / 3mm – 40mm |
| End Connection | Butt Weld |
| Melting Point | 1400-1450°C for (WP410) |
| Outside Diameter (OD) | Seamless / Buttweld Fitting ( 1/2″～48″), ERW / Welded / Fabricated Buttweld Fitting (1/2″～48″) |
| Value Added Services | Hot Dipped Galvanizing, Electro Polish, Sand Blasting, Epoxy & FBE Coating, Threading, Soldering |
| Other Standards | MSS SP-75, ISO, SNSI, JIS, DIN, GB, DIN2617, JISB2311, JISB2312, JISB2313 / T12459GB / T13401, SH3408, SH3409HG / T21635HG / T21631SY / T05010 |
| Material Test Certificates (MTC) | As per EN 10204 3.2 and EN 10204 3.1, Certifying NACE MR0175, NACE MR0103 |
| Materials | AISI 410 |
| Two Halve / Two Joint Buttweld Fittings Size | 6″ to 48″ |
| Manufacturing Specification | ASME: ANSI B16.9, ANSI B16.28, ASME B16.25, MSS-SP-43, DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011, EN: EN10253-1, EN10253-2 |
| A403 SS Seamless Fittings | Size: 15 NB to 300 NB | Sch.& Swg: Sch.5 to Sch.XXs |
| A403 SS Welded Fittings | Size: 15 NB to 600 NB | Sch.& Swg: Sch.5 to Sch.80s |
Stainless Steel 410 is a martensitic stainless steel alloy containing mainly iron, chromium (11.5–13.5%), along with small amounts of carbon, manganese, and silicon. It provides excellent mechanical strength and average corrosion resistance. The material possesses a tensile strength of around 480–700 MPa, yield strength of about 275 MPa, and elongation of 20% in 50 mm. It is magnetic and can be hardened by heat treatment. All these features make Stainless Steel 410 Buttweld Fittings suitable for structural applications with demands for durability, high temperature resistance, and good wear performance in the presence of moderate corrosive conditions.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 410 | min. | – | – | – | – | – | 11.5 | – | – | – |
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | – | 0.75 | – | |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 410 | 480 | 275 | 16 | 95 | 201 |
Devang Fittings is a leading supplier of Stainless Steel 410 Buttweld Fittings in Kolkata, India. We offer an extensive range of Stainless Steel 410 Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
|---|---|---|---|---|---|---|---|
| BS | En | No | Name | ||||
| 410 | S41000 | 410S21 | 56A | 1.4006 | X12Cr13 | 2302 | SUS 410 |
Stainless Steel 410 Buttweld Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

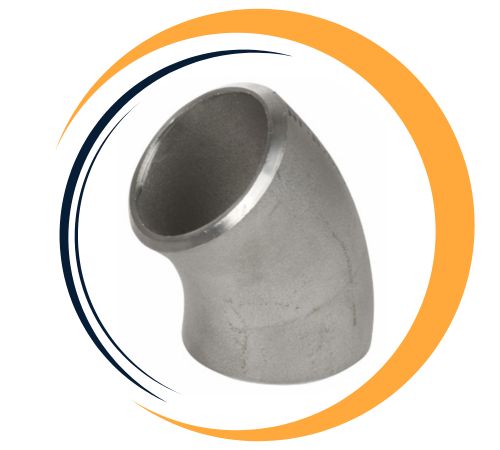

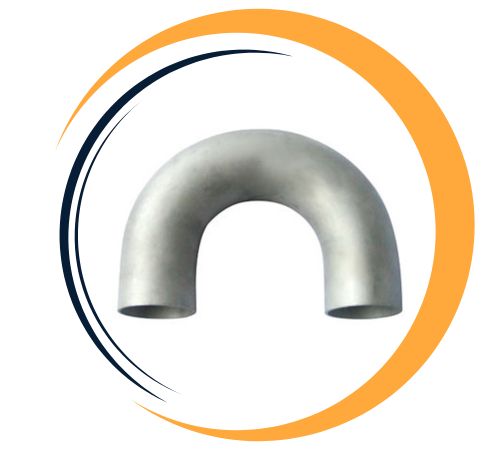

| Nominal Pipe Size (inches) | Outside Diameter | 45°Elbows | 90° Elbows | 180° Returns | ||||
|---|---|---|---|---|---|---|---|---|
| Long Radius | Long Radius | Short Radius | Long Radius | |||||
| (mm) | (inches) | Center to Face (inches) | Radius (inches) | Center to Face (inches) | Center to Face (inches) | Center to Center (inches) | Back to face (inches) | |
| 1 | 33.4 | 1.315 | 7/8 | 1 1/2 | 1 | 3 | 2 3/16 | |
| 1/2 | 21.3 | 0.840 | 5/8 | 1 1/2 | – | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 7/16 | 1 1/8 | – | 2 1/4 | 1 11/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 | 1 7/8 | 1 1/4 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 1 1/8 | 3 | 2 1/4 | 1 1/2 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 1 3/8 | 4 | 3 | 2 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 1 3/4 | 5 | 3 3/4 | 2 1/2 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 2 | 6 | 4 1/2 | 3 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 2 1/4 | 7 | 5 1/4 | 3 1/2 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 2 1/2 | 8 | 6 | 4 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 3 1/8 | 10 | 7 1/2 | 5 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 3 3/4 | 12 | 9 | 6 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 5 | 12 | 12 | 8 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 6 1/4 | 15 | 15 | 10 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 7 1/2 | 18 | 18 | 12 | 36 | 24 3/8 |
Yes, custom sizes for Stainless Steel 410 Buttweld Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Stainless Steel 410 Buttweld Fittings are extensively utilized in industrial piping systems that demand robust, corrosion-resistant fittings with high mechanical strength. The fittings are appropriate for use in oil and gas treatment processes, thermal power plants, chemical processing units, water treatment plants, and food processing plants. Because of their strength at high pressure, variation in temperature, and exposure to mild corrosive conditions, they are often used in pressure vessels, steam lines, and heat exchanger piping. Their weldability, hardness, and resistance to scaling qualify them to be used in structural and mechanical systems operating under adverse service conditions.
