904L Stainless Steel Pipe Fittings are high-performance fittings designed for piping systems requiring superior corrosion resistance and toughness for long-term service in aggressive chemical media. Supplied by top-grade suppliers such as Devang Fittings in Kolkata, India, these fittings are made to endure demanding conditions like corrosive acids, chloride-containing media, and high temperatures. Their accurate machining guarantees leak-free, strong connections ideal for severe duty applications in chemical processing, marine, and pharmaceutical processes.
| 904L Pipe Fittings Specifications | ASTM A403/ ASME SA403 |
|---|---|
| 904L SS Pipe Fittings size | 904L Seamless Butt Weld Fittings : 1/2″ – 10″ 904L Welded Butt Weld Fittings : 1/2″ – 48″ |
| SS 904L Pipe Fittings Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Stainless Steel 904L Buttweld Fittings Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| 904L Buttweld Pipe FittingsType | DN15-DN1200 |
| ASTM A403 904L Buttweld Fitting Connection | Welding |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom ASTM A403 Grade WP904L Pipe Fitting |
| Size Range | ½” NB to 24″ NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM A403 WP 904L Buttweld Fitting |
| ASTM A403 WP904L Buttweld Fittings Manufacturing process | Push, Press, Forge, Cast, etc. |
| 904L Stainless Steel Buttweld Pipe Fittings Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| SA 403 WP904L Pipe Fittings Origin & Mills | Japanese, Indian, USA, Korean, European, Ukraine, Russian |

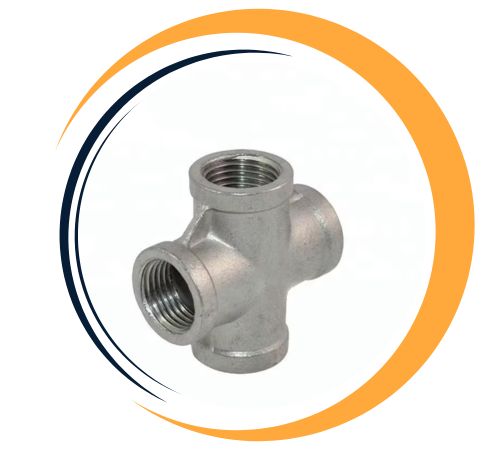

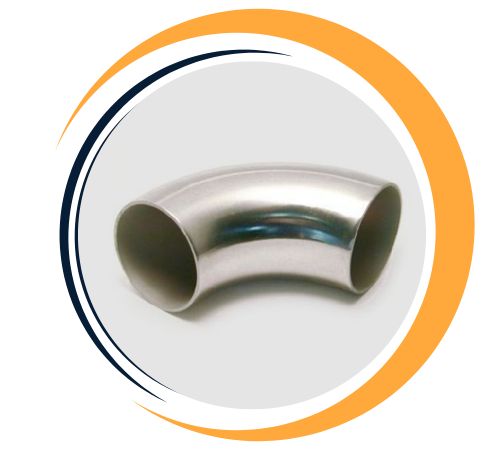

| Specialized manufacturer of | SS UNS N08904, N08904 90º Elbows, 45º Elbows, Tees, Cross, Reducer, Pipe Cap, Stub End, Pipe Bend |
| We provide Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175 | |
904L stainless is a low-carbon, austenitic alloy with about 19–23% chromium, 24–26% nickel, 4–5% molybdenum, and copper additions that increase resistance to reducing acids and further enhance corrosion resistance. It possesses tensile strength of about 485 MPa and yield strength of close to 170 MPa, accompanied by fine toughness and ductility. The alloy shows better pitting resistance, crevice corrosion, and stress corrosion cracking than the normal grades of 316, which makes it suitable for aggressive environments.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
Devang Fittings one of the largest suppliers of Stainless Steel 904L Pipe Fittings in Kolkata, India. We specialize in providing a wide range of high-quality, durable fittings for various industrial applications. Our inventory includes elbows, tees, reducers, couplings, and other essential fittings designed to offer exceptional corrosion resistance and strength. Stainless Steel 904L is known for its cost-effectiveness and excellent mechanical properties, making it ideal for industries such as construction, chemical processing, and food processing. With a commitment to customer satisfaction, timely delivery, and competitive pricing, we are the trusted choice for Stainless Steel 904L Pipe Fittings in the India.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 904L Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
| Product range and theoretical weights (kg) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Yes, custom sizes are available for Stainless Steel 904L Pipe Fittings to meet specific requirements. We offer tailored solutions to ensure precise fit and performance for various applications. For more information, please contact us at sales@devangfittings.co.in.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Stainless Steel 904L Pipe Fittings are used extensively in chemical and petrochemical facilities, offshore petroleum and gas platforms, desalination plants, and drug manufacturing. Their high corrosion resistance makes them a reliable option for working with sulfuric, phosphoric, and hydrochloric acid, and seawater and brine solution. The fittings are also used in heat exchangers, pressure vessels, and high-purity fluid systems, with long life and minimal maintenance expenses in rigorous industrial applications.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
