Devang Fittings is a manufacturer and supplier of industrial fittings in Kolkata, India. We manufacturer high-quality fittings to a exacting standard, with a focus on reliability and precision. A wide range of industrial fittings is provided to suit a multitude of industries. Our Straight Tees are designed with durability and performance in mind which will provide reliable service in numerous applications. These fittings provide high strength and corrosion resistance for pipeline installations, such as branch connections, and are a reliable choice for any high-pressure applications such as oil and gas, chemical processing, and construction.
Standard – ANSI/ASME :ASTM A403 / ASME SA403, ANSI B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
DIN : DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN : EN10253-1, EN10253-2
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Type : Seamless / ERW / Welded / Fabricated
Size: 1/2″ to 36″
Form: Butt weld Straight Tees, Fitting Butt weld Straight Crosses
Normally Straight Tees use base materials such as stainless steel, carbon steel, or an alloy such as Duplex or Super Duplex depending on the application’s requirements for strength, durability and corrosion resistance. Although the intended mechanical properties depend on the material used, generally these fittings will have a tensile strength in the range of 500 to 900 MPa, yield strength in the range of 250 to 700 MPa and the elongation values are typically in the range of 20-30%. With excellent fatigue and pressure resistance, Straight Tees are engineered to perform reliably in demanding applications such as fluid and gas transmission systems, capable of withstanding high-pressure, high-temperature conditions while maintaining structural integrity.

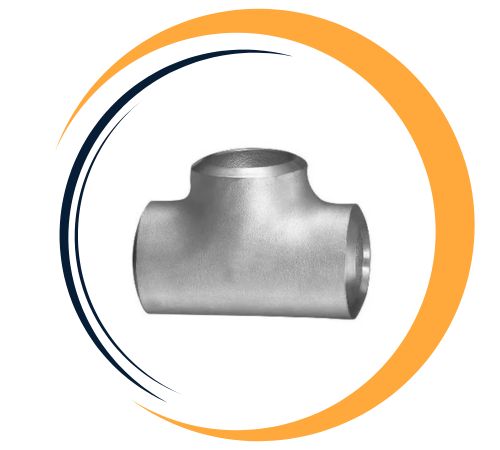

Stainless Steel Butt weld Straight Tees & Crosses: ASTM A403 WP316/316L, ASTM A403 WP304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

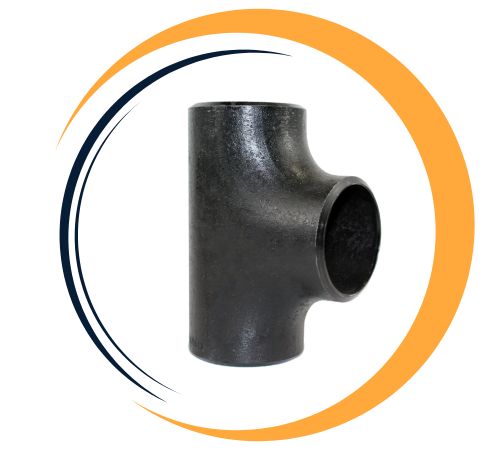

Carbon Steel Butt weld Straight Tees & Crosses : ASTM A234, ASME SA234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

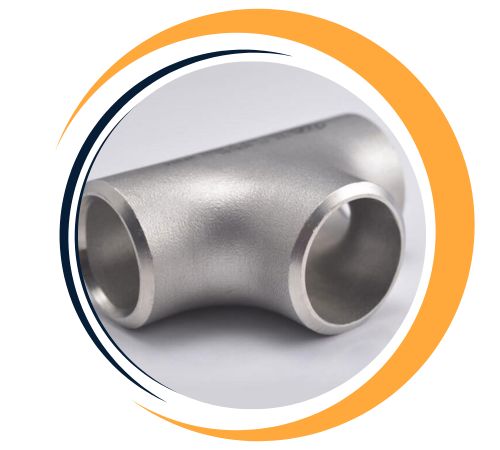

Alloy Steel Butt weld Straight Tees & Crosses : ASTM A234, ASME SA234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91

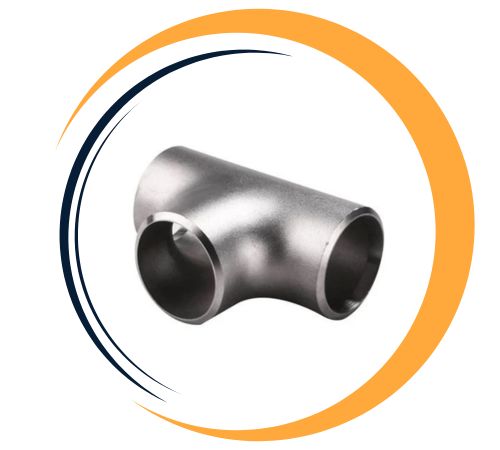

Duplex Steel Butt weld Straight Tees & Crosses : ASTM A815, ASME SA815 UNS No S31803, S32205

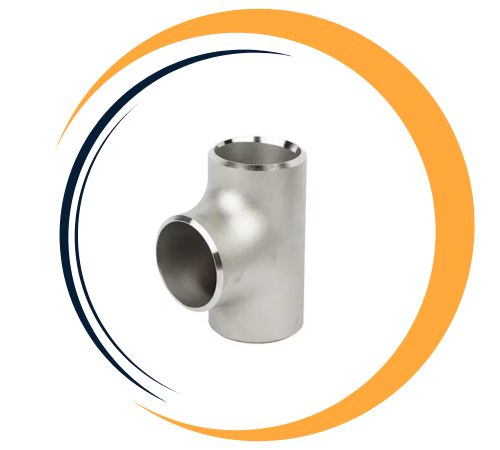

Super Duplex Butt weld Straight Tees & Crosses : ASTM A815, ASME SA815 UNS No S32750, S32950

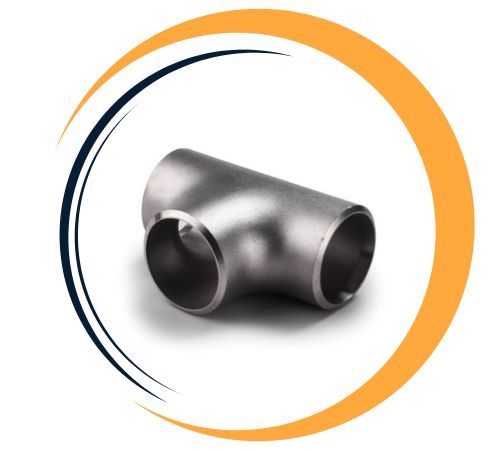

Nickel Alloy Butt weld Straight Tees & Crosses : ASTM B336, ASME SB336, Nickel 200 (UNS No. No2200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020), Titanium (Grade I & II), Cupro-Nickel 70/30, CuNi10Fe1Mn, CuNi30Mn1Fe.
Low Temperature Carbon Steel Butt weld Straight Tees & Crosses : ASTM A420 WPL3, A420 WPL6
Devang Fittings is a leading supplier of Straight Tees in Kolkata, India. We offer an extensive range of Straight Tees, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Straight Tees from Devang Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Straight Tees have a number of benefits in piping systems such as efficient flow splitting and combining features in a simple design. It’s a reliable, cost-effective branch for pipes, which can be easily used in numerous industrial systems. Straight Tees come in a very wide variety of materials, such as stainless steel, carbon steel and alloys, so there are many options for applications. Straight Tees are meant to operate in high-pressure and high-temperature scenarios, and provides the characteristics of durability, strength and corrosion resistance. The simple design aids in ease of installation and maintenance in piping systems for fluids and gases.
Yes, custom sizes for Straight Tees are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
| NPS | O.D. D | Center-to-End C | Center-to-End M |
| 1/2 | 21.3 | 25 | 25 |
| 3/4 | 26.7 | 29 | 29 |
| 1 | 33.4 | 38 | 38 |
| 1¼ | 42.2 | 48 | 48 |
| 1½ | 48.3 | 57 | 57 |
| 2 | 60.3 | 64 | 64 |
| 2½ | 73 | 76 | 76 |
| 3 | 88.9 | 86 | 86 |
| 3½ | 101.6 | 95 | 95 |
| 4 | 114.3 | 105 | 105 |
| 5 | 141.3 | 124 | 124 |
| 6 | 168.3 | 143 | 143 |
| 8 | 219.1 | 178 | 178 |
| 10 | 273 | 216 | 216 |
| 12 | 323.8 | 254 | 254 |
| 14 | 355.6 | 279 | 279 |
| 16 | 406.4 | 305 | 305 |
| 18 | 457 | 343 | 343 |
| 20 | 508 | 381 | 381 |
| 22 | 559 | 419 | 419 |
| 24 | 610 | 432 | 432 |
| 26 | 660 | 495 | 495 |
| 28 | 711 | 521 | 521 |
| 30 | 762 | 559 | 559 |
| 32 | 813 | 597 | 597 |
| 34 | 864 | 635 | 635 |
| 36 | 914 | 673 | 673 |
| 38 | 965 | 711 | 711 |
| 40 | 1016 | 749 | 749 |
| 42 | 1067 | 762 | 711 |
| 44 | 1118 | 813 | 762 |
| 46 | 1168 | 851 | 800 |
| 48 | 1219 | 889 | 838 |
Straight Tees are common components in all sorts of industry applications for fittings that branch in pipelines. They function as fittings in fluid and gas transmission systems, allowing for splitting or parallel flow in a straight line. Straight Tees are located in many systems including oil and gas pipelines, chemical processing plants, water treatment systems and residential or commercial HVAC systems. Other common applications include power generation plants, heating systems, and construction applications; Straight Tees are preferred due to their versatility, structural strength, and resistance to very high-pressure applications. Straight Tees allow for leak-proof and reliable operation in mission-critical piping systems.
