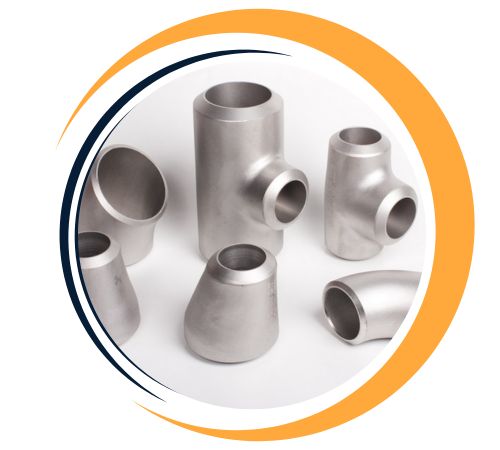

Devang Fittings, established in Kolkata, India, is a reliable exporter and manufacturer of Super Duplex Steel Buttweld Fittings, offering strong, high-strength piping components for heavy-duty industrial applications. Our buttweld fittings are made of top-quality super duplex stainless steel, which enjoys superior corrosion resistance and superior mechanical strength. Specifically designed for aggressive applications like offshore, marine, and chemical process industries, these fittings provide leak-tight joints and long service life. Devang Fittings adheres to precision manufacturing and quality control, producing products which are of international standards and meet the stringent specifications of our worldwide customer base.
Specifications ASTM A815 / ASME SA815
Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size 1/2″ NB to 24″NB in
Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Thickness Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Super Duplex Steel is an alloy stainless steel with high content that possesses the best properties of both ferritic and austenitic microstructures. It has 24–26% chromium, 6–8% nickel, 3–5% molybdenum, and added nitrogen content for improved strength and corrosion resistance. The alloys provide tensile strength of approximately 750–850 MPa, yield strength of approximately 550 MPa, and elongation of 25%. Super Duplex Steel Buttweld Fittings demonstrate superior resistance to pitting, crevice corrosion, and chloride-induced stress corrosion cracking, yet they possess excellent toughness and durability at high-pressure and severely corrosive working conditions.
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | N | Fe |
| Super Duplex S32750 | 0.030 max. | 2.00 max. | 1.00 max. | 0.030 max. | 0.020 max. | 22.0 – 23.0 | 4.50 – 6.50 | 3.0 – 3.5 | 0.14 – 0.20 | 63.72 min. |
| Super Duplex S32760 | 0.030 max. | 2.00 max. | 1.00 max. | 0.030 max. | 0.020 max. | 21.0 – 23.0 | 4.50 – 6.50 | 2.50 – 3.50 | 0.08 – 0.20 | 63.54 min |
| UNS No | Grade | Grades | Density (g/cm 3) | Density (lb/in 3) | Melting Point (°C) | Melting Point (°F) |
| S32750 | 7.8 | 0.281 | 1350 | 2460 | ||
| S32750 | 2507 | 550 | 795 | 15 | 310 | 32* |
Devang Fittings is a leading supplier of Super Duplex Steel Buttweld Fittings in Kolkata, India. We offer an extensive range of Super Duplex Steel Buttweld Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex 2507 | S32750 / S32760 | 1.4410 |
Choose Super Duplex Steel Buttweld Fittings from Devang Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Super Duplex Steel Buttweld Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in
| Nominal Pipe Size | Outside Diameter | Caps | Straight Tees | Straight Crosses | Stub Ends | |||
| inch | mm | inch | Length (inch) | Center to End (inch) | Center to End (inch) | Lap Diameter (inch) | Long Length (inch) | Short Length (inch) |
| 1/2 | 21.3 | 0.840 | 1 | 1 | – | 1 3/8 | 3 | 2 |
| 3/4 | 26.7 | 1.050 | 1 | 1 1/8 | – | 1 11/16 | 3 | 2 |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 1/2 | 1 1/2 | 2 | 4 | 2 |
| 1 1/4 | 42.2 | 1.660 | 1 1/2 | 1 7/8 | 1 7/8 | 2 1/2 | 4 | 2 |
| 1 1/2 | 48.3 | 1.900 | 1 1/2 | 2 1/4 | 2 1/4 | 2 7/8 | 4 | 2 |
| 2 | 60.3 | 2.375 | 1 1/2 | 2 1/2 | 2 1/2 | 3 5/8 | 6 | 2 1/2 |
| 2 1/2 | 73.0 | 2.875 | 1 1/2 | 3 | 3 | 4 1/8 | 6 | 2 1/2 |
| 3 | 88.9 | 3.500 | 2 | 3 3/8 | 3 3/8 | 5 | 6 | 2 1/2 |
| 3 1/2 | 101.6 | 4.000 | 2 1/2 | 3 3/4 | 3 3/4 | 5 1/2 | 6 | 3 |
| 4 | 114.3 | 4.500 | 2 1/2 | 4 1/8 | 4 1/8 | 6 3/16 | 6 | 3 |
| 5 | 141.3 | 5.563 | 3 | 4 7/8 | 4 7/8 | 7 5/16 | 8 | 3 |
| 6 | 168.3 | 6.625 | 3 1/2 | 5 5/8 | 5 5/8 | 8 1/2 | 8 | 3 1/2 |
| 8 | 219.1 | 8.625 | 4 | 7 | 7 | 10 5/8 | 8 | 4 |
| 10 | 273.1 | 10.750 | 5 | 8 1/2 | 8 1/2 | 12 3/4 | 10 | 5 |
| 12 | 323.9 | 12.750 | 6 | 10 | 10 | 15 | 10 | 6 |
| DN | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | 900 Elbow | 450 Elbow | Equal tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel Buttweld Fittings are mainly applied in stringent applications that require high strength as well as superior resistance to corrosion, especially in aggressive environments. They are most suitable for subsea pipelines, offshore drilling platforms, desalination units, chemical processing equipment, heat exchangers, and pressure vessels. They are also used extensively in the oil and gas industry for conveying aggressive fluids in deep-sea and sour service conditions. Because of their strong mechanical character, the fittings enable thinner section walls and lighter piping system construction. Their long service life, corrosion resistance, and strength make them a safe option for challenging industrial processes.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
