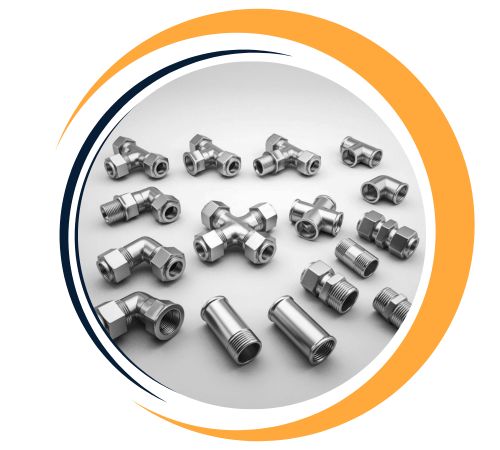

Super Duplex Steel Forged Fittings are top of the line fittings designed to provide superior strength, corrosion resistance, and durability in the most demanding industrial applications. These fittings are produced by reliable suppliers such as Devang Fittings of Kolkata, India, and are specifically designed to join piping systems under high pressure and corrosive conditions safely. Super Duplex steel, which possesses a dual-phase microstructure of austenite and ferrite, has excellent stress corrosion cracking, pitting, and crevice corrosion resistance. Thus, these forged fittings are the best choice for aggressive service conditions. Their accurate forging and dimensional precision provide leak-tight and high-integrity performance in demanding applications.
Specifications : ASTM A182 / ASME SA182
Size : 1/2″NB TO 4″NB IN
Class : 2000LBS, 3000LBS, 6000LBS, 9000LBS, etc.
Type : Socket Weld (S/W) and SCREWED (SCRD) – NPT, BSP, BSPT, Threaded Fittings
The chemical makeup of Super Duplex Steel is generally 24–26% chromium, 6–8% nickel, 3–5% molybdenum, and additions of nitrogen, manganese, and occasionally tungsten, which give it improved mechanical and corrosion-resistant properties. The alloy has high tensile strength—frequently approximately 800 MPa—and yield strength of around 550 MPa, with superior impact toughness at even low temperatures. Its ferritic-austenitic microstructure is the cause of its superior performance in chloride-rich and marine environments. Super Duplex forged fittings also have good fatigue resistance and thermal stability, thus are appropriate for both high-temperature and cryogenic service.
| UNS | Grade | C | Si | Mn | P | S | Cr | Mo | Ni | N | Other |
| S32750 | 2507 | 0.030 | 0.80 | 1.20 | 0.035 | 0.020 | 24.0/26.0 | 3.0/5.0 | 6.00/8.00 | 0.24/0.32 | Cu:0.50 |
| UNS | Grade | Proof Stress 0.2% (MPa) | Tensile Strength (MPa) | Elongation A5(%) | Hardness Max | |
| HB | HRB | |||||
| S32750 | 2507 | 550 | 795 | 15 | 310 | 32* |
Devang Fittings is a leading supplier of Super Duplex Steel Forged Fittings in Kolkata, India. We offer an extensive range of Super Duplex Steel Forged Fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex S2750 | S32750 | 1.4410 |
Choose Super Duplex Steel Forged Fittings from Devang Fittings for superior quality, exceptional corrosion resistance, and reliable performance in extreme conditions. We offer customized solutions backed by expert support and industry experience.
Yes, custom sizes for Super Duplex Steel Forged Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in
| NPS (Normal Pipe Size) | O.D. (Outside Daimeter) | Elbow 90 Deg | Elbow 45 Deg | Return Elbow 180 Deg | ||||
|---|---|---|---|---|---|---|---|---|
| (inch) | Long Radius Elbow | Short Radius | Long Radius Elbow | Long Radius Elbow | ||||
| (millimeter/ MM) | (inch./ Inches) | Center to Face (Inches) | Center to Face (Inches) | Center to Face (Inches) | Radius (Inches) | Center to Center (Inches) | Back to face (Inches) | |
| 1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | 2 | 1 7/8 | |
| 3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | 2 1/4 | 1 11/16 | |
| 1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | 3 | 2 3/16 | |
| 1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | 3 3/4 | 2 3/4 | |
| 1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
| 2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
| 2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
| 3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
| 3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
| 4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
| 5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
| 6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
| 8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
| 10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
| 12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
| DN (Normal Pipe Size) For ASME B16.9 | Schedule 10S | Schedule 40S | Schedule 80S | ||||||
| Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | Elbow 90 Deg | Elbow 45 Deg | B16.9 Equal Tee | |
| 8 | 0.02 | 0.01 | 0.03 | 0.03 | 0.02 | 0.06 | 0.04 | 0.03 | 0.07 |
| 10 | 0.03 | 0.02 | 0.05 | 0.03 | 0.02 | 0.03 | 0.06 | 0.04 | 0.09 |
| 15 | 0.06 | 0.03 | 0.09 | 0.08 | 0.04 | 0.10 | 0.10 | 0.05 | 0.14 |
| 20 | 0.07 | 0.03 | 0.13 | 0.08 | 0.04 | 0.17 | 0.11 | 0.05 | 0.20 |
| 25 | 0.14 | 0.08 | 0.28 | 0.15 | 0.11 | 0.29 | 0.22 | 0.14 | 0.38 |
| 32 | 0.23 | 0.11 | 0.49 | 0.26 | 0.17 | 0.59 | 0.40 | 0.23 | 0.68 |
| 40 | 0.30 | 0.17 | 0.68 | 0.40 | 0.23 | 0.86 | 0.51 | 0.29 | 1.02 |
| 50 | 0.50 | 0.25 | 0.85 | 0.70 | 0.4 | 1.28 | 0.91 | 0.59 | 1.59 |
| 65 | 0.85 | 0.48 | 1.41 | 1.40 | 0.77 | 2.19 | 1.81 | 0.99 | 3.13 |
| 80 | 1.25 | 0.63 | 1.77 | 2.20 | 1.08 | 3.31 | 2.97 | 1.50 | 4.45 |
| 90 | 1.70 | 0.75 | 2.67 | 2.83 | 1.42 | 4.08 | 4.00 | 2.00 | 5.44 |
| 100 | 2.10 | 1.08 | 3.46 | 4.47 | 2.09 | 5.27 | 6.18 | 2.81 | 7.71 |
| 150 | 5.45 | 2.72 | 8.07 | 10.89 | 5.44 | 10.99 | 16.32 | 8.16 | 13.61 |
| 200 | 10.20 | 5.33 | 15.65 | 21.54 | 10.77 | 20.91 | 33.11 | 16.56 | 28.12 |
| 250 | 18.15 | 9.75 | 26.46 | 38.56 | 19.27 | 35.38 | 51.71 | 25.86 | 49.90 |
| 300 | 25.80 | 13.62 | 39.46 | 59.42 | 29.71 | 62.14 | 79.38 | 39.69 | 83.91 |
Super Duplex Steel Forged Fittings are applied widely across industries like offshore oil and gas, chemical and petrochemical processing, desalination, marine engineering, and power generation. Their high resistance to aggressive fluids and seawater makes them suitable for subsea piping systems, manifolds, pressure vessels, and heat exchangers. In chemical plants, they process acidic and chloride-based fluids with little danger of degradation. Such fittings also appear in pulp and paper making, wastewater treatment, and structural uses where both strength and corrosion resistance are essential. Their strength in construction and long lifespan make them an economic solution for high-performance systems.
