Titanium Grade 5 Pipe Fittings are high-strength, corrosion-resistant fittings used extensively in applications where strength, resistance to corrosion, and weight saving are essential. Top manufacturers such as Devang Fittings in Kolkata, India produce these fittings for precision and durability with surefire connections in piping systems operating under high pressure and harsh temperatures. Also referred to as Ti-6Al-4V, Grade 5 is the world’s most widely used titanium alloy because of its superior mechanical strength, outstanding corrosion resistance, and good fabricating characteristics. These pipe fittings are appropriate for applications requiring long service life with low maintenance, even in hostile environments.
Standard : ASTM B363 / ASME SB363
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″ to 24″ NB to 24″NB in
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated

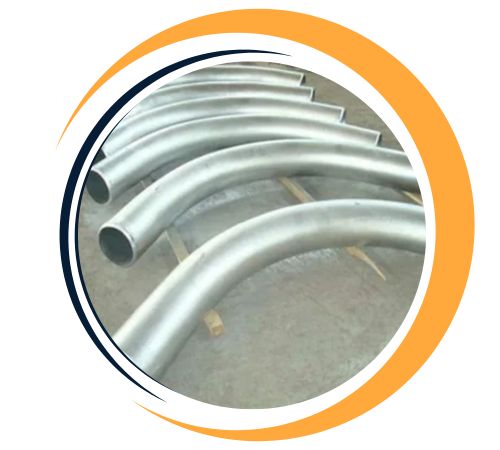

Bending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr 5 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | N56400 |
Consisting of about 90% titanium, 6% aluminum, and 4% vanadium, Titanium Grade 5 provides a superior balance of strength and corrosion resistance. The alloy has a tensile strength of approximately 895 MPa and yield strength of approximately 828 MPa, in addition to high fatigue life and superior properties at high temperatures. Its density of 4.43 g/cm³ is associated with a high strength-to-weight ratio, and it is thus suitable for lightweight structural use. It also has good weldability and reasonable formability, which makes it desirable for intricate piping systems and components used in both oxidizing and chloride-contaminated environments.
Devang Fittings is a leading supplier of Titanium Gr 5 Pipe Fittings in Kolkata, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Gr 5 Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.
Titanium Grade 5 (Ti-6Al-4V) pipe fittings offer numerous advantages, including exceptional strength-to-weight ratio, which makes them ideal for demanding applications where lightweight yet durable materials are required. They exhibit outstanding corrosion resistance, especially in aggressive environments such as seawater, acids, and high-temperature conditions. Titanium Grade 5 fittings also offer high fatigue strength, excellent weldability, and resistance to wear and creep. These properties make them perfect for aerospace, marine, and chemical industries. Additionally, their long lifespan and low maintenance requirements contribute to cost savings over time.

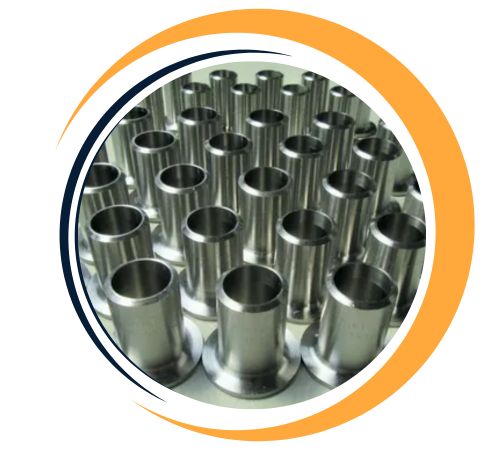

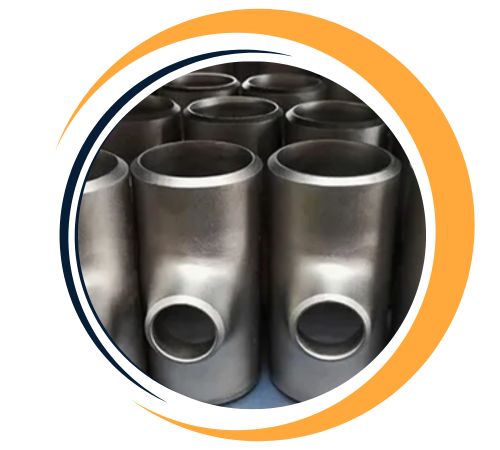

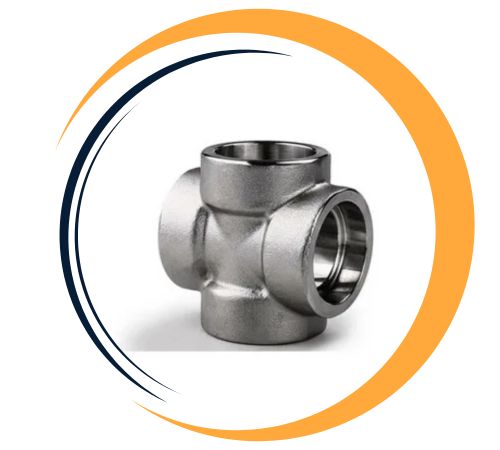

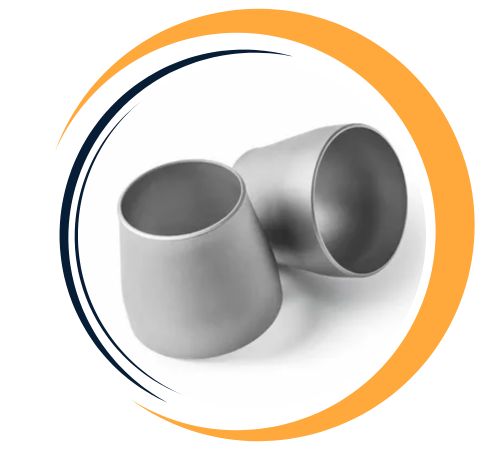

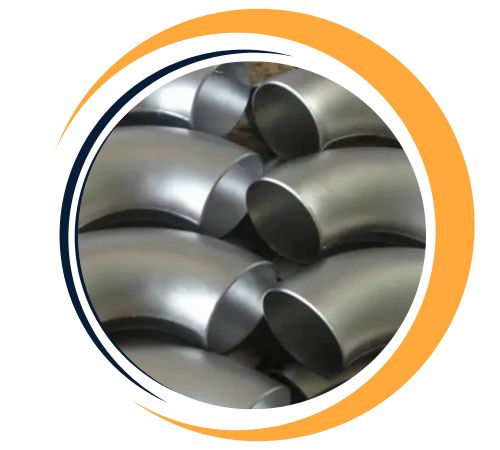

| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings | GR5 Titanium Alloy Long Radius Elbows, Long Radius Reducing Elbows, Titanium Gr5 Long Radius Returns, Titanium Alloy Gr5 Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Rerurns, Titanium Gr 5 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Titanium Gr 5 Lap Joint Stub Ends, Titanium Gr 5 Caps, Reducers |
| ASME B16.28 | Gr5 Titanium Alloy Short Radius Elbows, Titanium Gr 5 Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Titanium Gr 5 Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, Gr5 Titanium Gr 5 caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Titanium Gr 5 Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, Gr5 Titanium Alloy reducers |
Yes, custom sizes for Titanium Gr 5 Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Titanium Grade 5 Pipe Fittings find applications in demanding industries like aerospace, offshore and marine engineering, chemical processing, medical equipment, and power generation. Aerospace applications include them being crucial in fuel lines, hydraulic systems, and airframes because of their light weight yet high strength. Within marine and offshore applications, they provide excellent resistance to saltwater corrosion. They are utilized in the chemical and petrochemical industries for carrying corrosive media at high-temperature and high-pressure operating conditions. Moreover, their biocompatibility renders them suitable for medical devices and pharmaceutical systems for ensuring safety and reliability in critical operations.
