Titanium Pipe Fittings are high-end products developed for high-performance piping systems demanding superior strength, corrosion protection, and long-term lifespan. These fittings are provided by trusted companies such as Devang Fittings in Kolkata, India. They are fabricated to provide accurate, leak-free joints in crucial industrial processes. Titanium’s inherent high resistance to a broad spectrum of corrosive agents such as seawater and harsh chemicals renders these pipe fittings suitable for high-temperature and high-pressure applications. Being excellent weld materials and having a good strength-to-weight ratio, titanium pipe fittings are a safe bet for light and strong solutions in industries.
Standard : ASTM B363 / ASME SB363
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/2″ to 24″ NB to 24″NB in
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Type : Seamless / Welded / Fabricated

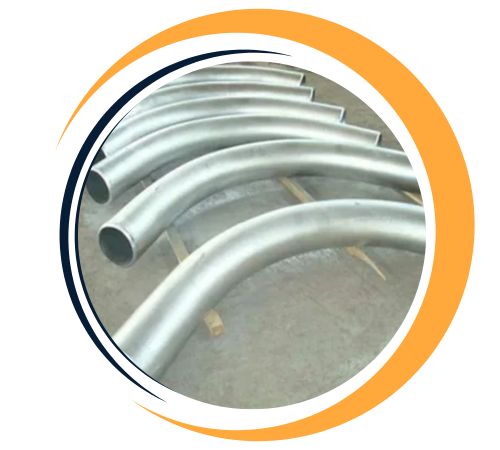

Bending Radius :R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Titanium in pipe fittings is generally either commercially pure (Grades 1 and 2) or alloyed, like Grade 5 (Ti-6Al-4V), based on the application. Commercially pure titanium, particularly Grade 2, has more than 99% of titanium and provides excellent corrosion resistance with moderate strength. Grade 5, with the addition of aluminum and vanadium, provides very high tensile strength—about 895 MPa—while having good corrosion resistance and workability. Titanium’s low density of about 4.5 g/cm³ provides a high strength-to-weight ratio, and its corrosion resistance, stress corrosion cracking resistance, and resistance to extreme temperatures add to its application in mission-critical systems.
Devang Fittings is a leading supplier of Titanium Pipe Fittings in Kolkata, India. We offer an extensive range of Monel 400 fittings, renowned for their excellent corrosion resistance and high strength, which makes them perfect for demanding industrial applications like chemical processing, marine environments, and high-temperature systems. With a commitment to quality and reliable delivery, we ensure our clients receive top-tier products tailored to meet the specific needs of various industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Pipe Fittings from Devang Fittings offer exceptional corrosion resistance, especially in seawater and harsh environments. They are known for their high strength, durability, and resistance to pitting and crevice corrosion, ensuring long-lasting performance. We provide precise manufacturing, quality control, and reliable service for diverse industrial applications.

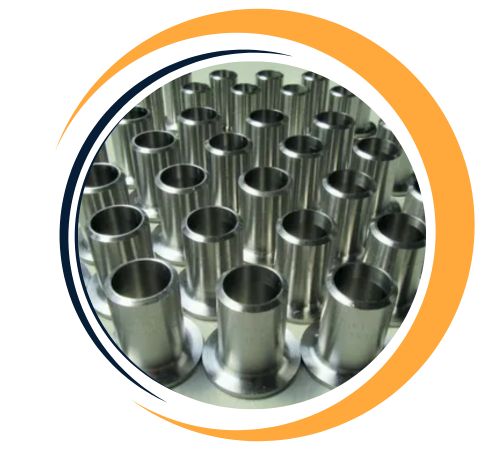

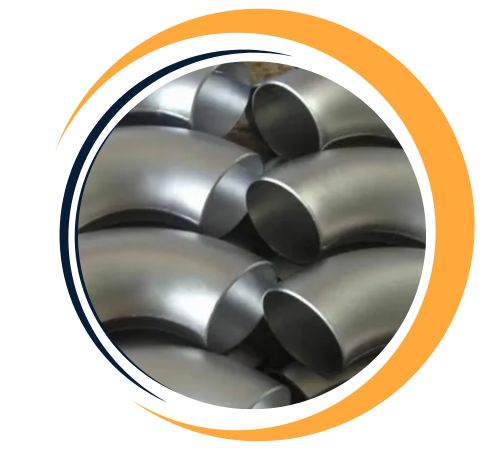

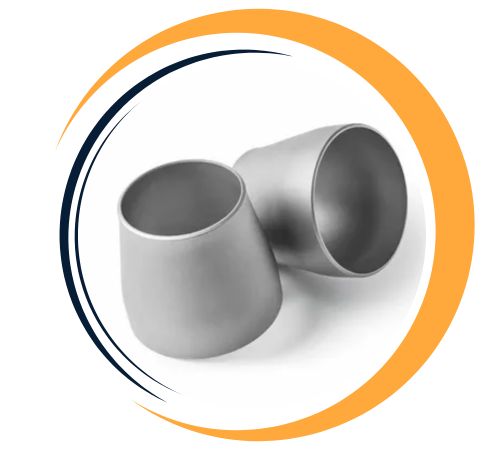

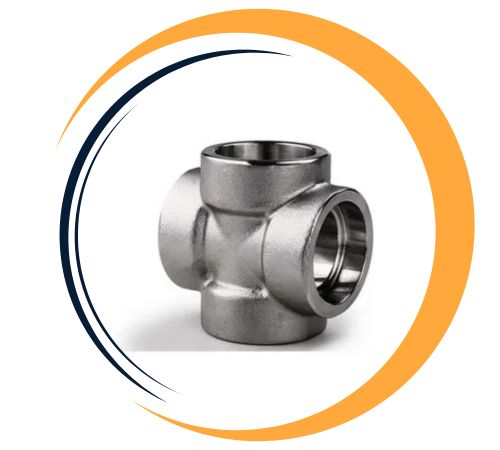

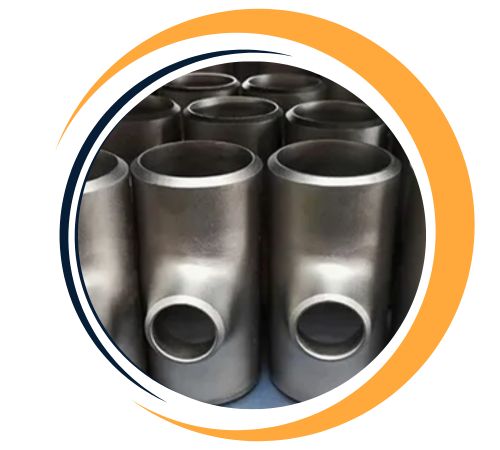

| ASME B16.9 | Factory-Made Wrought Buttwelding Fittings | Titanium Pipe Long Radius Elbows, Long Radius Reducing Elbows, Titanium Long Radius Returns, Titanium Short Radius Elbows, Titanium Short Radius 180-deg Rerurns, Titanium 3D elbows, Straight Tees, Straight Crosses, Reducing Outlet Tees, Reducing Outlet Crosses, Titanium Alloy Lap Joint Stub Ends, Titanium Pipe Caps, Reducers |
| ASME B16.28 | Titanium Short Radius Elbows, Titanium Pipe Short Radius 180-deg Returns | |
| MSS SP43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Titanium Long Radius Elbows, Straight and Reducing-on-the-Outlet Tees, Lap Joint Stub ends, Titanium Pipe caps, long radius 180 Degree returns, concentric reducers, eccentric reducers |
| Mss SP75 | Titanium Long Radius Elbows, 3R elbows, straight tees, reducing outlet tees, caps, Titanium Pipe reducers |
| Products | Size | |
|---|---|---|
| ASTM B462 Alloy 20 90° Elbow | ASTM B462 Alloy 20 45° Elbow | Sizes 1/8″– 4″ Pressure Ratings – 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| ASTM B462 Alloy 20 Forged Tee | ASTM B462 Alloy 20 Union | |
| ASTM B462 Alloy 20 Forged Cross | ASTM B462 Alloy 20 Insert | |
| ASTM B462 Alloy 20 Screwed Bushing | ASTM B462 Alloy 20 Threaded Pipe Nipple | |
| ASTM B462 Alloy 20 Forged Socket weld Cap | ASTM B462 Alloy 20 Screwed Coupling | |
| ASTM B462 Alloy 20 Forged Plug | ASTM B462 Alloy 20 Street Elbow | |
Yes, custom sizes for Titanium Pipe Fittings are available at Devang Fittings. We offer tailored solutions to meet your specific requirements, ensuring optimal performance for your projects. For more information, please contact us at sales@devangfittings.co.in.
Titanium Pipe Fittings find extensive applications in aerospace, chemical process industries, desalination, marine, oil and gas, medical, and power industries. Aerospace and defense utilize them to save weight while ensuring structural integrity in fuel, hydraulic, and cooling systems. They offer long-term resistance to chlorides, acids, and saltwater in chemical plants and offshore installations. The medical sector applies titanium due to its biocompatibility in sanitary and pharmaceutical fluid systems. They are also vital in nuclear and geothermal power projects where resistance to high temperature and pressure is key. They are durable and require low maintenance, making them a long-term, cost-saving option in high-demanding environments.
Get in touch with one of our Technical Sales Representatives to request a quote or get answers to any questions you may have.
